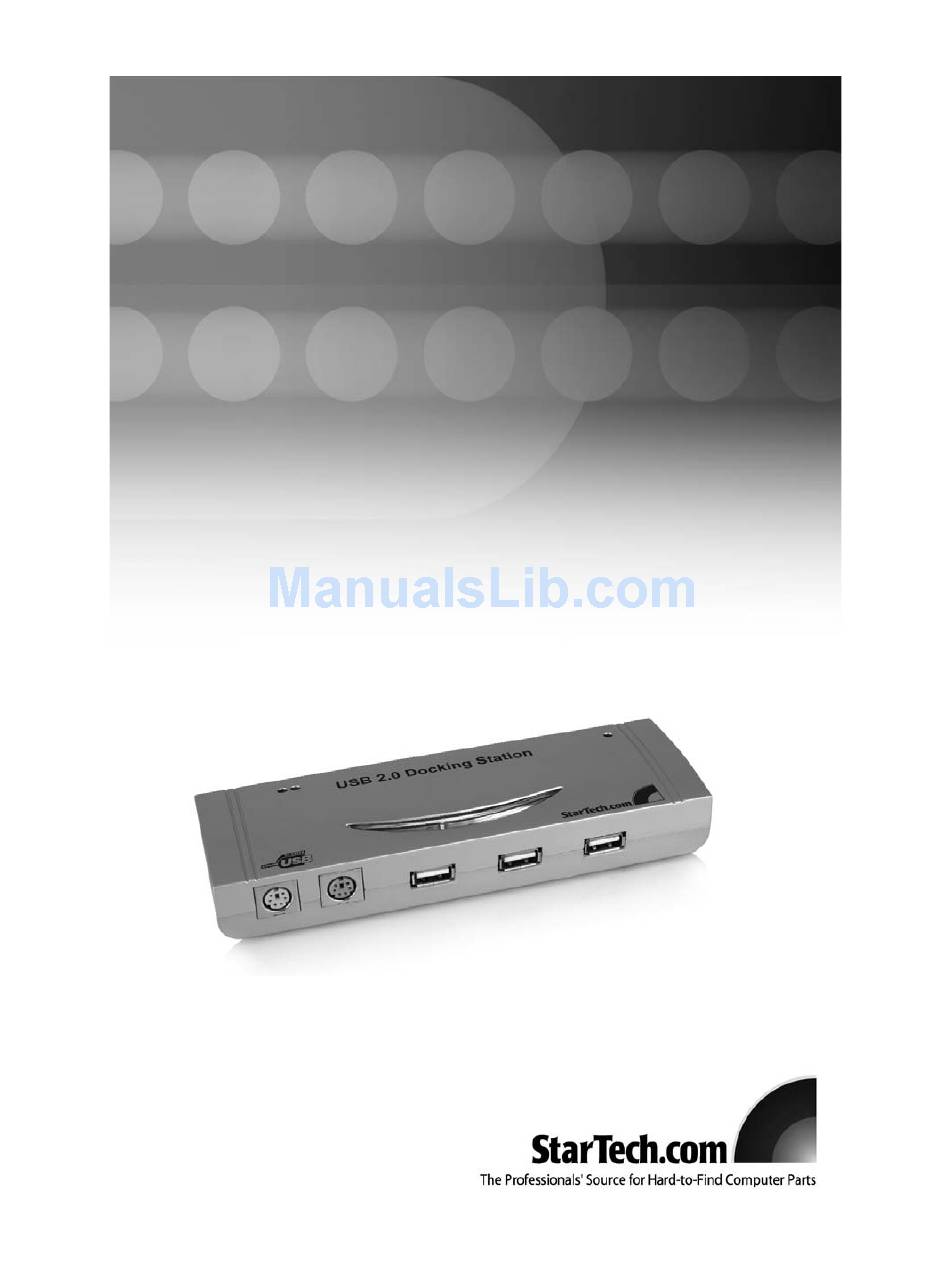

- Page 1 5-in-1 Docking Station 5-in-1 USB 2.0 Notebook Docking Station / Port Replicator USB5N1DOCK Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features . -
Page 4: Introduction
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com 5-in-1 USB 2.0 Notebook Docking Station. This product allows you to add multiple high performance USB 2.0 peripheral devices to your laptop, and provides an RJ45 port for network connectivity as well as an additional parallel port. -
Page 5: Installation
Power port Connecting USB5N1DOCK to your computer 1. Plug the power adapter into the power port on the USB5N1DOCK. Plug the opposite end of the adapter into an available power source. 2. Plug the rectangular (Type A) end of the USB 2.0 cable into an available USB 2.0 port on your computer. -
Page 6: Installing The Rj45 Port
Installing the RJ45 LAN port Once the USB Hub has been installed successfully, Windows will automatically detect and attempt to install the USB to LAN Converter, which provides the RJ45 LAN connection. 1. Once the Add New Hardware Wizard launches for the USB to LAN Converter, please click on Next. -
Page 7: Installing The Mouse And Keyboard Ports
Installing the Mouse and Keyboard ports Following the Serial port installation, Windows will automatically detect and attempt to install the USB Human Interface Device, which provides connectivity to the Mouse and Keyboard ports. 1. Once the Add New Hardware Wizard launches for the USB Human-Interface device, please click on Next. -
Page 8: Specifications
Instruction Manual Specifications Bus Type USB 2.0 Type B Data Transfer Port x 1 USB 2.0 Type A Male ports x 3 PS/2 Keyboard port x 1 Connectors PS/2 Mouse port x 1 Serial port (DB9 male) x 1 Printer port (DB25 female) x 1 10/100 Base Ethernet LAN port (RJ45) x 1 Power Adapter 5V DC 1 Amp Type M connector (included) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 10 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
