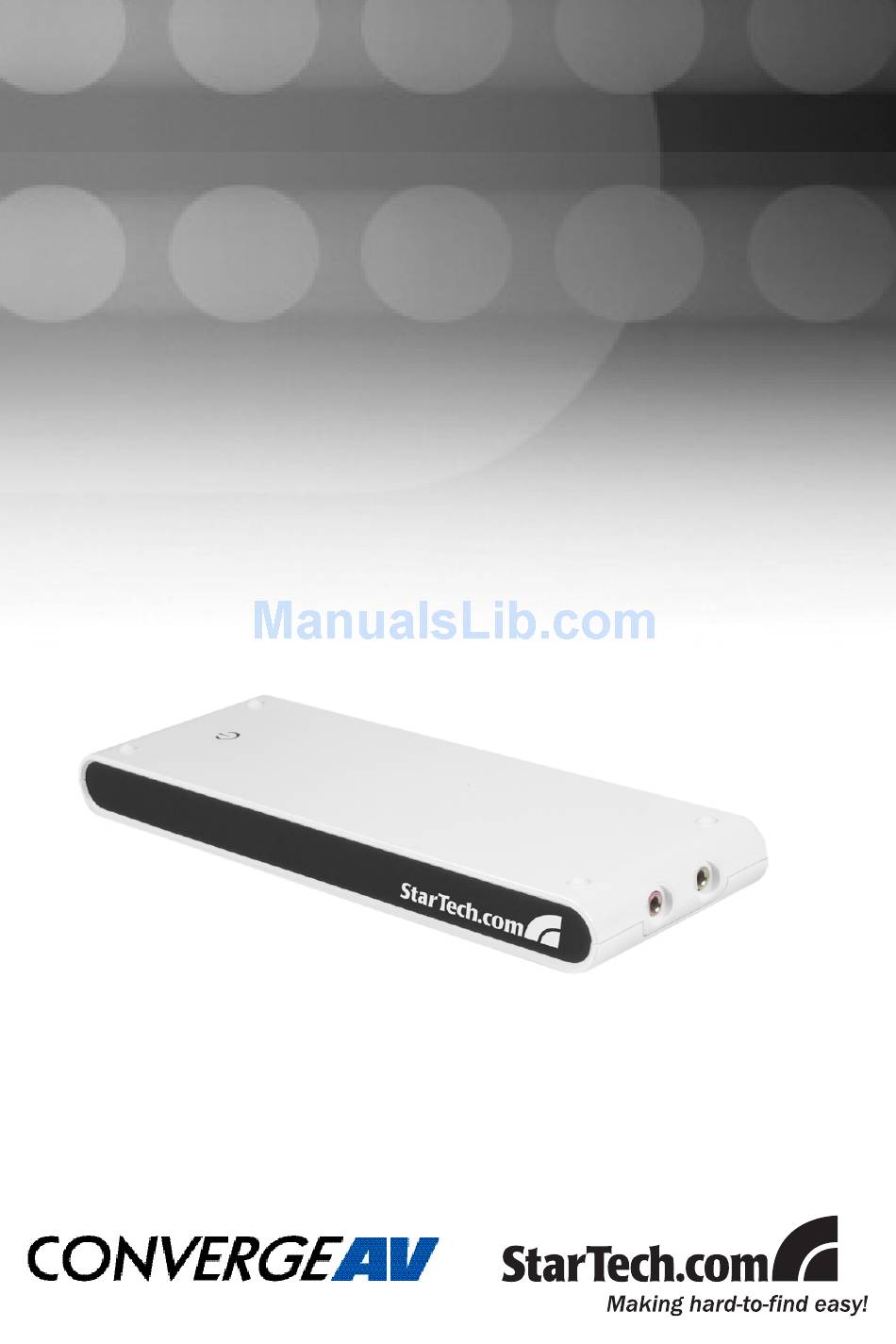

- Page 1 USB 4-in-1 Docking Station with VGA USBVGADOCK...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Table of Contents Introduction ... 1 Installation ... 2 Driver Installation ... 2 Windows 2000/XP ...2 Windows Vista™ ...3 Verifying Driver Installation ...5 Windows 2000/XP ...5 Windows Vista™ ...6 Operation ... 8 USB to Ethernet ...8 USB to Audio ...8 USB to VGA ...8 Modes of Display Operation ...9 Primary ...9... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 4-in-1 USB Docking Station with VGA. This innovative device converts a single USB 2.0 port into multiple connection ports, including a VGA Port, 10/100 RJ45 network port, dual (3.5mm phono) audio ports and four additional USB 2.0 ports. -
Page 5: Installation
Installing the device driver enables your computer’s operating system to recognize the docking station ports once it is connected. To properly connect USBVGADOCK to a host computer, please ensure that the necessary driver installation (detailed below) has been completed prior to connecting USBVGADOCK to the host computer. -
Page 6: Windows Vista
When the Microsoft Hardware Installation warning dialogue appears, please select Continue Anyway to continue with the device driver installation. It will not affect the device driver installation or device usage. Once the installation has completed, you will be asked if you wish to re start your computer. - Page 7 Next on the InstallShield Wizard Welcome screen (shown Click previous page). When the License Agreement screen appears, please review it and check I accept the terms of the license agreement. Click Next to proceed. A Windows Security warning dialogue box will appear. Please select Install this driver software anyway to continue: Upon completion, the Found New Hardware Wizard will indicate that it has ...finished installing the software...
-
Page 8: Verifying Driver Installation
Verifying Driver Installation Windows 2000/XP To ensure that driver installation was successful: My Computer. Right-click on Manage to launch the Computer Management window. Select In the left pane of the Computer Management window, select Manager. At the top of the Computer Management window, click on View, then select By Connection Type: In the right pane of the Computer Management window, select Standard Enhanced PCI to USB Host Controller, then click on USB... -
Page 9: Windows Vista
Windows Vista™ Computer. Right-click on Manage to launch the Computer Management window. Select In the left pane of the Computer Management window, select Manager. At the top of the Computer Management window, click on View, then select By Connection Type: Instruction Manual Device... - Page 10 Instruction Manual Intel(R) In the right pane of the Computer Management window, select 82801GB USB2 Enhanced Host Controller-27CC, then USB Root Hub to display the list of newly installed devices: High Speed USB- Ethernet Adapter, USB 2.0 GRAPHIC DOCK, USB Composite Device, USB Human Interface Device, HID-compliant consumer control device, USB Multimedia Audio Device.
-
Page 11: Operation
USB to VGA USBVGADOCK supports three distinct display modes: Primary, Extended and Mirror. To configure how the VGA monitor connected to USBVGADOCK is used, right-click on the UVD logo, situated in the task bar (typically near the clock). Click on Resolution... -
Page 12: Modes Of Display Operation
Extended (Default) By default, the monitor connected to the USBVGADOCK unit will work as an Extended Desktop, by extending the primary Windows desktop of your system onto the USBVGADOCK connected monitor. You can change the... -
Page 13: Mirror
However, if the selected resolution setting is not supported by the primary screen, a warning dialogue box will be displayed and the suggested screen resolution will be shown. This option disables the monitor connected to the USBVGADOCK unit. Rotation This feature enables you to configure the orientation of the secondary monitor. -
Page 14: Troubleshooting
USBVGADOCK USB 4-in-1 Docking Station with VGA, the following sug- gestions may be useful: Q: Why can’t I make the monitor connected to USBVGADOCK the primary display? A: Some video cards are shipped with a utility that prevents other video cards from being set as the primary card. - Page 15 A: Please check our website for driver updates that may support this function. If your application requires this, please use the main display adapter. Q: USBVGADOCK does not work with a Windows Vista™ 64-bit system? A: Please check our website for driver updates in the future, that may support this function.
-
Page 16: Specifications
Specifications Audio Connectors Regulatory Certifications Operating System Support Supported Resolutions (Widescreen) Aspect Ratio 16:10 16:9 16:10 16:10 16:10 15:9 Supported Resolutions (Standard) Instruction Manual General Specifications 10/100Mbps USB Audio Device Class Specification v1.0 1 x SVGA(DB-15); 1 x RJ45 (female) 2 x 3.5mm phono (audio) (female) 4 x USB 2.0 (type ‘A’... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 18 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
