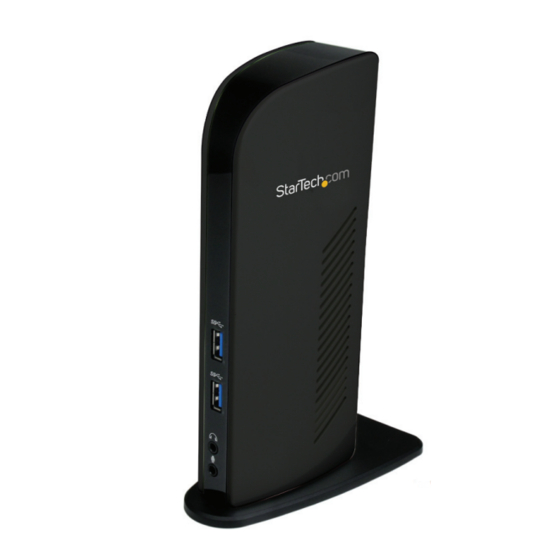

Universal USB 3.0 Laptop Docking Station
with Video, Audio, Ethernet
USB3SDOCKD
USB3SDOCKHD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/09/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com USB3SDOCKD
Summary of Contents for StarTech.com USB3SDOCKD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/09/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Windows XP/ Vista/ 7 ..........................3 How to Use ....................4 Display Modes ............................5 “Extend” Display Mode (DEFAULT) ......................5 “Extend To”... -
Page 4: Introduction
Introduction The Universal USB 3.0 Laptop Docking Station with Video, Audio and Ethernet adds an external DVI output (and HDMI® for USB3SDOCKHD), headphone/mic, Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports all from a single device and over a single SuperSpeed USB 3.0 connection. -
Page 5: Front View
Front View Power LED USB Hub Link LED USB 3.0 Hub Rear View 3.5mm Headphone jack 3.5mm Microphone jack USB 2.0 Hub RJ45 Ethernet connector DVI-I connector (output) HDMI connector (output, USB3SDOCKHD only) USB 3.0 type B connector (Host) DC Power connector Instruction Manual... -
Page 6: Installation
Installation Windows XP/ Vista/ 7 1. Connect the included power adapter from an AC electrical outlet to the USB Docking Station. 2. Insert the provided Driver CD into the computer’s CD/ DVD drive. 3. Autorun should give you the option to browse the files on the CD or automatically open the CD. -
Page 7: How To Use
How to Use Configuring the image being displayed by the monitor that is connected to the USB 3.0 Docking Station, can be done in one of two ways: 1. Accessing the Windows Display Settings • Windows XP: right-click on a blank area of the desktop, select Properties, then click on the Settings tab: • Windows Vista: right-click on a blank area... -
Page 8: Display Modes
2. Right-clicking the DisplayLink tray icon ( ) in the system notification area. Display Modes “Extend” Display Mode (DEFAULT) The default display mode; this mode allows the output on the USB 3.0 Docking Station to work as an “Extended” display to the on-board display (i.e. internal graphics card). This extended working space improves work efficiency. -
Page 9: Mirror" Display Mode
“Mirror” Display Mode This mode allows the same content from the on-board display to be duplicated (mirroring) to the output on the USB 3.0 Docking Station. The screen resolution setting on the USB 3.0 Docking Station video output will match the on-board display’s resolution. -
Page 10: Notebook Monitor Off
Notebook Monitor Off Turns the monitor on the USB Docking Station to the main display and turns off the screen of the laptop. NOTE: This function works only when one add-on monitor is connected. This option will also only appear on laptop. Optimize For Video (Windows Vista/ 7 only) Optimize video play back when using Windows Vista/ 7. -
Page 11: Supported Video Resolutions
Supported Video Resolutions Resolution Refresh Rate 640 x 480 60/ 72/ 75/ 85 Hz 800 x 600 56/ 60/ 72/ 75/ 85 Hz 1024 x 768 60/ 70/ 75/ 85 Hz 1280 x 720 60 Hz 1280 x 768 60/ 75/ 85 Hz 1280 x 800 60 Hz 1280 x 1024... -
Page 12: Specifications
Specifications USB3SDOCKD USB3SDOCKHD Host Interface USB 3.0 DisplayLink DL-3700 DisplayLink DL-3900 VLI VL810 VLI VL810 Chipset Terminus FE1.1 Terminus FE1.1 Realtek RTL8211E Realtek RTL8211E 2 x USB 3.0 type A female 2 x USB 3.0 type A female 4 x USB 2.0 type A female 4 x USB 2.0 type A female... - Page 13 Specifications - Cont’d Operating Temperature 10°C ~ 40°C (50°F ~ 104°F) Storage Temperature -10°C ~ 80°C (14°F ~ 176°F) Dimensions 195.7mm x 77.0mm x 126.3mm Weight 364g Compatible Operating Windows XP/ Vista/ 7 (32/64-bit) Systems Instruction Manual...
-
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
