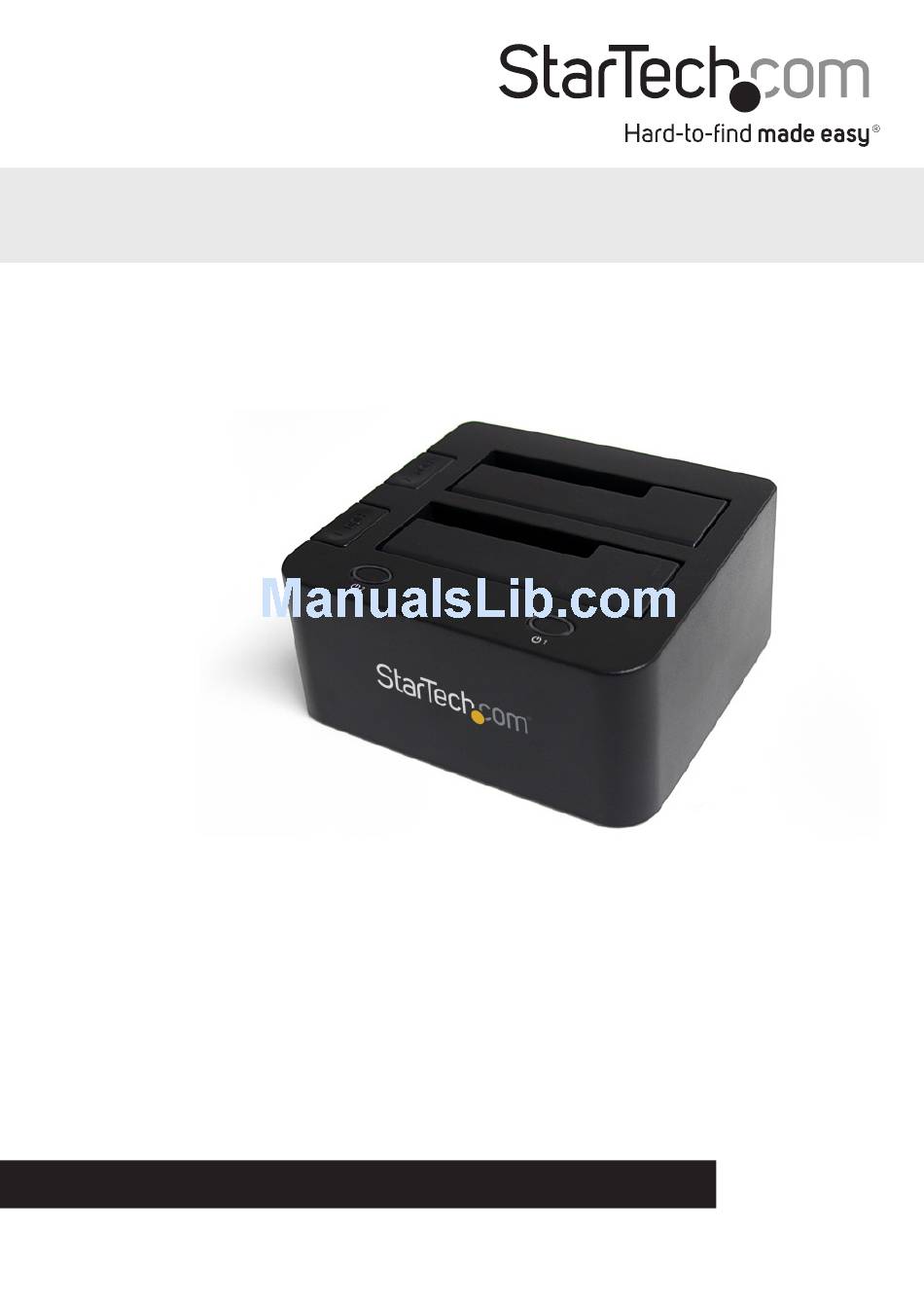

USB 3.0 to SATA IDE HDD Docking Station
for 2.5/3.5in HDD
UNIDOCK3U / UNIDOCK3UGB / UNIDOCK3UEU
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/20/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com UNIDOCK3U
Summary of Contents for StarTech.com UNIDOCK3U
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/20/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Using the Storage Device ..............5 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Introduction The UNIDOCK3U USB 3.0 to SATA/IDE Hard Drive Docking Station delivers instant access to 2.5” and 3.5” IDE or SATA hard drives through top slot-loading drive slots for both SATA and IDE, instead of having to mount the drives into a computer or external enclosure/tray. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
7. Connect the included USB cable from the hard drive dock to an available USB port on the computer system. The computer can be on or off. NOTE: The USB 3.0 cable can be connected to a USB 2.0 port, however will only be able to operate at USB 2.0 speeds. -
Page 8: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. - Page 9 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer.
-
Page 10: Specifications
Specifications Drive Bays Host Interface SuperSpeed USB 3.0 Chipset ID JMicron JMS551 1 x USB 3.0 type B female 1 x 40-pin IDE male External Connectors 1 x LP4 Molex male 1 x DC Power LEDs 2 x Power/Activity Maximum Data Transfer Rate USB 3.0: 5 Gbps 2.5/3.5in SATA Compatible Hard Drives... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
