  • Page 1: Docking Station

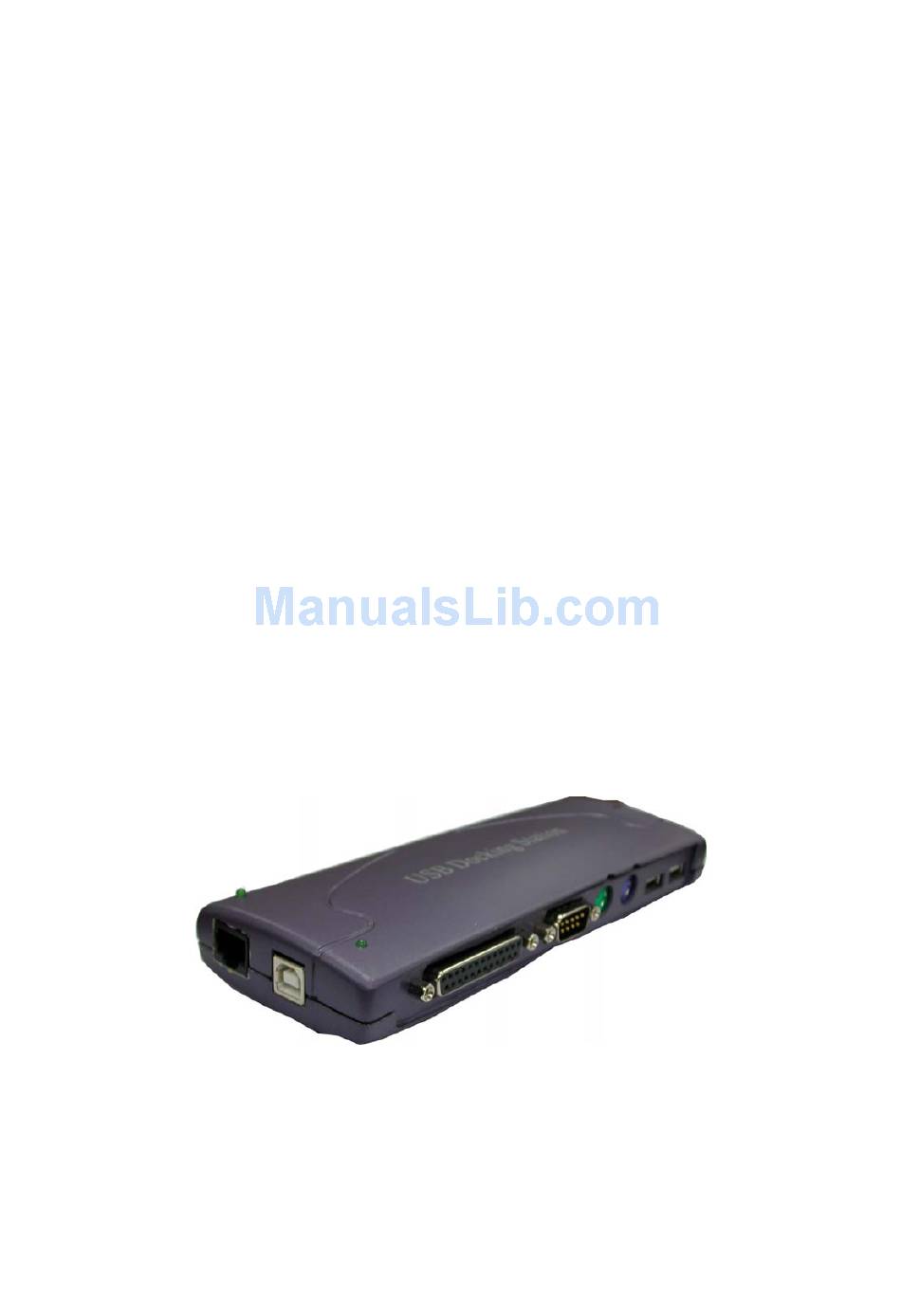

    USER’S MANUAL USB 2.0 6in1 / 7in1 Docking Station DS.2.0.08042003...

  • Page 2: Table Of Contents

    Index Page Introduction………………………………………………………………… Features……………………………………………………………………. Specification………………………...………………….………………….. Requirements……………………..….…………………………………… Package contents…………………..……………….……………………. Chapter 1 …….…..….…………………………………… Hardware Installation Guide .…..….……………………………………………. Used for I/O applications .………………………………………………………. Hardware Installation Chapter 2 …...…………….……………….…………………….. Software Installation ……………….………………………………. Host Link on Other Computer …….………………………………………… Running the PC-Linq Program ………………………………………………………….………… NOTICE ………………………………………………...

  • Page 3: Introduction

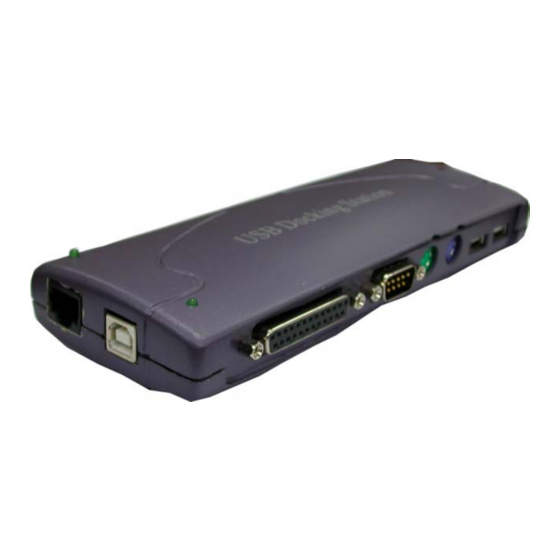

    Introduction： The USB 2.0 Docking Station is an all-in-one hub that could simplify your computer connections with just one single box. It expands your computer with one USB Upstream Port, two USB Downstream Ports, one DB25P(female) IEEE 1284 Parallel Port, one DB9P(male) RS232C Serial Port, two PS/2 ports Mini-Din 6P(female), Host Link and one 10/100 Mbps Ethernet RJ-45 Port .

  • Page 4: Requirements

    Expansion amazingly simple. Cable USB cable (A to B male) Transfer USB transfer rate: High-Speed 480Mb/Sec. Rate Data read/write speed: Up to 480Mb/Sec. Power LED Host Link LED Ethernet LED (7in1) Power Power Adapter DC 6 V. 2.1A Enclosure Plastics. CE &...

  • Page 5: Hardware Installation Guide

    Chapter 1 Hardware Installation Guide： Front Side 1. Parallel Port (DB25P) 3. PS/2 Mouse (Mini-Din 6P) 5. USB 1 (A-type) 2. Serial Port (DB9P) 4. PS/2 Keyboard (Mini-Din 6P) 6. USB 1 (A-type) Left Side Right Side (7in1) 9. Upstream Port (B-type) 7.

  • Page 6: Used For I/O Applications

    11. Power LED (7in1) 13. Host Link LED 12. Ethernet LED Used for I/O applications Digital Camera, Card Reader, Mouse, Scanner, Printer, Removable Storage USB Port Drive PS/2 Port Mouse, Keyboard Serial Port Modem (Page 28) Parallel Port Printer (Page 28) Host Link provides a software tool to enable end-user being capable of Host Link accessing remote file data in remote computer's storage devices through a...

  • Page 7: Software Installation

    Step1：Found new hardware wizard, insert the Installation CD into CD-ROM, choose click “Next”. Step2：Choose click “Next”, follow the software installation step-by-step. Step3：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. - Page 5 -...
  • Page 8 Step4：Browser a CD driver specify a location, choose click “OK”. Step5：Choose click “Next”. - Page 6 -...
  • Page 9 Step6：Choose click “Finish”. Step7：Choose click “Next”. - Page 7 -...
  • Page 10 Step8：Choose click “Next”. Step9：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. - Page 8 -...
  • Page 11 Step10：Browser a CD driver specify a location, choose click “OK”. Step11：Choose click “Next”. - Page 9 -...
  • Page 12 Step12：Choose click “Finish”. Step13：Choose click “Next”. - Page 10 -...
  • Page 13 Step14：Choose click “Next”. Step15：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. - Page 11 -...
  • Page 14 Step16：Browser a CD driver specify a location, choose click “OK”. Step17：Choose click “Next”. - Page 12 -...
  • Page 15 Step18：Choose click “Finish”. Step19：Choose click “Next”. - Page 13 -...
  • Page 16 Step20：Choose click “Next”. Step21：Choose click “Next”. - Page 14 -...
  • Page 17 The PC-Ling icon will appear on the desktop Step22：Choose click “Next”. Step23：Choose click “Next”. - Page 15 -...
  • Page 18 Step24：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. Step25：Browser a CD driver specify a location, choose click “OK”. - Page 16 -...
  • Page 19 Step26：Choose click “Next”. Step27：Browser a CD driver specify a location, choose click “OK”. - Page 17 -...
  • Page 20 Step28：Choose click “Finish”. Step29：Choose click “Next”. - Page 18 -...
  • Page 21 Step30：Choose click “Next”. Step31：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. - Page 19 -...
  • Page 22 Step32：Browser a CD driver specify a location, choose click “OK”. Step33：Choose click “Next”. - Page 20 -...
  • Page 23 Step34：Choose click “Finish”. Step35：Choose click “Next”. - Page 21 -...
  • Page 24 Step36：Choose click “Next”. Step37：Select “CD-ROM drives” or “Specify a Location”, choose click “Next”. - Page 22 -...
  • Page 25 Step38：Browser a CD driver specify a location, choose click “OK”. Step39：Choose click “Next”. - Page 23 -...
  • Page 26 Step40：Choose click “Yes”. Step41：Choose click “Finish”. - Page 24 -...
  • Page 27 Step42：The driver has been setup successfully. Please re-start the computer. Step43：Installation verification. - Page 25 -...

  • Page 28: Host Link On Other Computer

    Host Link on Other Computer Step1： Power on both computers where you will connect the PC-Linq cable and make sure that the USB port is enabled and working properly. Step2： Plug in the USB cable into the USB port and Windows will detect an unknown device and run the Add New Hardware Wizard to assist you in setting up the new device.

  • Page 29: Running The Pc-Linq Program

    Running the PC-Linq Program Follow the steps below on how to run the PC-Linq program: Step1： Plug in both ends of the PC-Linq USB cable to the two computers. Step2： Double-click on the PC-Linq shortcut icon on your desktop screen. Do the same for the other computer.

  • Page 30: Notice

    Notice 1. In order to achieve the USB 2.0 Speed for this Docking Station must be plugged in to USB 2.0 Host and Windows 2000 or Windows XP. If this Docking Station is plugged into USB 1.1 Host, will only have USB 1.1 Speed. 2.

  • Page 31: Appendix

    Appendix Software Update： If you have questions about USB 2.0 Host controller and Docking Station, please refer to this chart for clarifications： USB 2.0 Host Windows OS USB 2.0 HOST driver update Windows 98SE Windows ME NEC USB 2.0 Host OWC(as known as OMI) driver version 2.0.4 or above Windows 2000 Windows XP...

  • Page 32: Abbreviations

    The USB high -speed signaling bit rate is 480 Mb/s. • The USB full -speed signaling bit rate is 12 Mb/s. • A limited capability low -speed signaling mode is also defined at 1.5 Mb/s. • USB 2.0 host controllers and hubs provide capabilities so that full-speed and low-speed data can be transmitted at high-speed between the host controller and the hub, but transmitted between the hub and the device at full-speed or low-speed.

  • Page 33: Keyed Connector Protocol

    Host Controller The host’s USB interface. OHCI Open Host Controller Interface UHCI Universal Host Controller Interface Universal Serial Bus The host resident software entity responsible for providing common Universal Serial services to clients that are manipulating one or more functions on one or Bus Driver (USBD) more Host Controllers.

  • Page 34: Macintosh Os Compatibility Testing Report

    Used for parallel, serial or scsi applications: printer. The DB25 connector has 25-pins arranged in two rows one on DB25 top of the other. The top row has 13 pins and the lower row has 12 pins. DB25 Female Used for voice/data applications: pbx, networking, dumb 8-pin terminal, point-of-sale.
