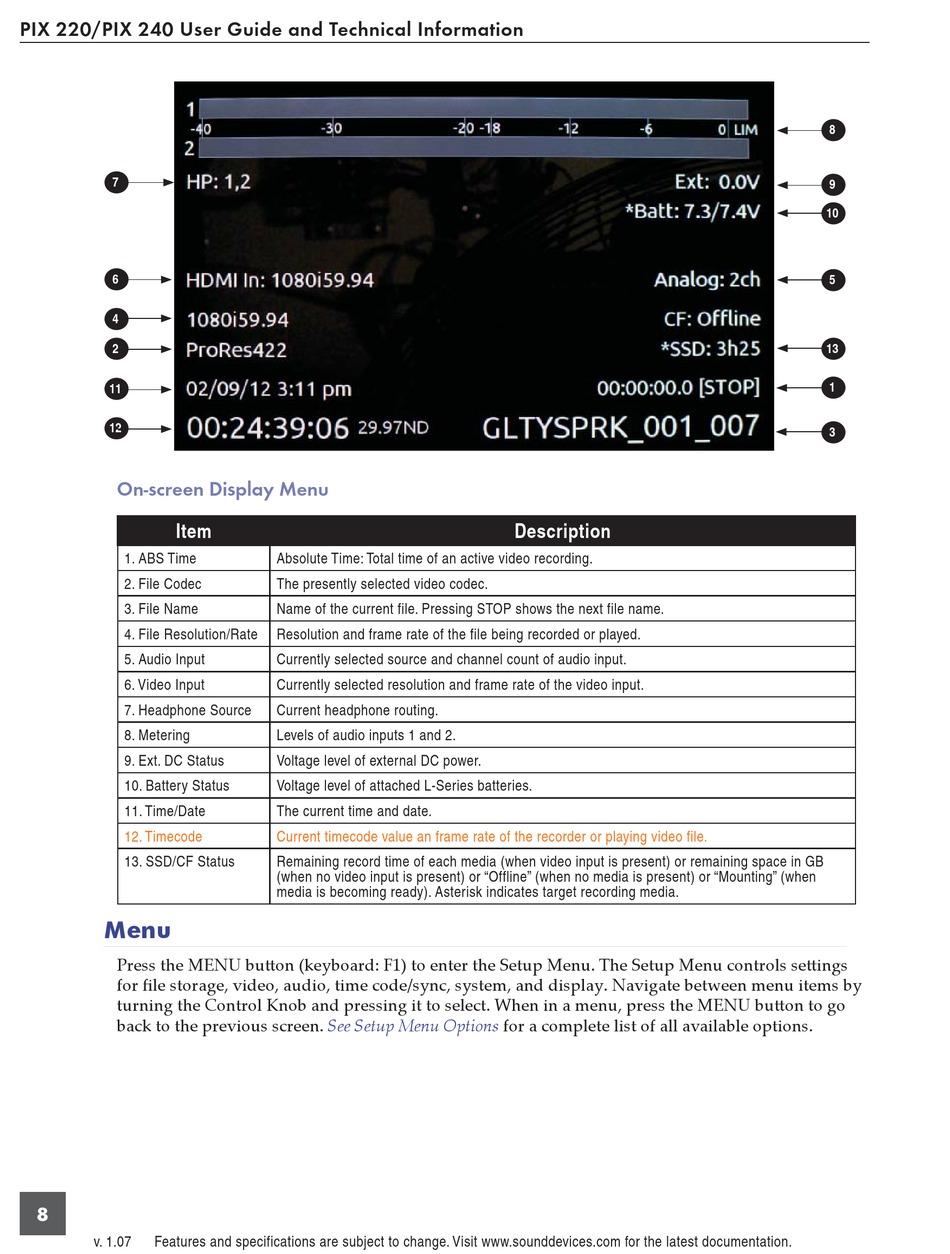

On-screen Display Menu
Item
1. ABS Time
2. File Codec
3. File Name
4. File Resolution/Rate
5. Audio Input
6. Video Input
7. Headphone Source
8. Metering
9. Ext. DC Status
10. Battery Status
11. Time/Date
12. Timecode
13. SSD/CF Status

Menu

Press the MENU bu on (keyboard: F1) to enter the Setup Menu. The Setup Menu controls se ings
for  le storage, video, audio, time code/sync, system, and display. Navigate between menu items by
turning the Control Knob and pressing it to select. When in a menu, press the MENU bu on to go
back to the previous screen.
8
v. 1.07 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Absolute Time: Total time of an active video recording.
The presently selected video codec.
Name of the current file. Pressing STOP shows the next file name.
Resolution and frame rate of the file being recorded or played.
Currently selected source and channel count of audio input.
Currently selected resolution and frame rate of the video input.
Current headphone routing.
Levels of audio inputs 1 and 2.
Voltage level of external DC power.
Voltage level of attached L-Series batteries.
The current time and date.
Current timecode value an frame rate of the recorder or playing video file.
Remaining record time of each media (when video input is present) or remaining space in GB
(when no video input is present) or "Offline" (when no media is present) or "Mounting" (when
media is becoming ready). Asterisk indicates target recording media.
See Setup Menu Options
Description
for a complete list of all available options.
