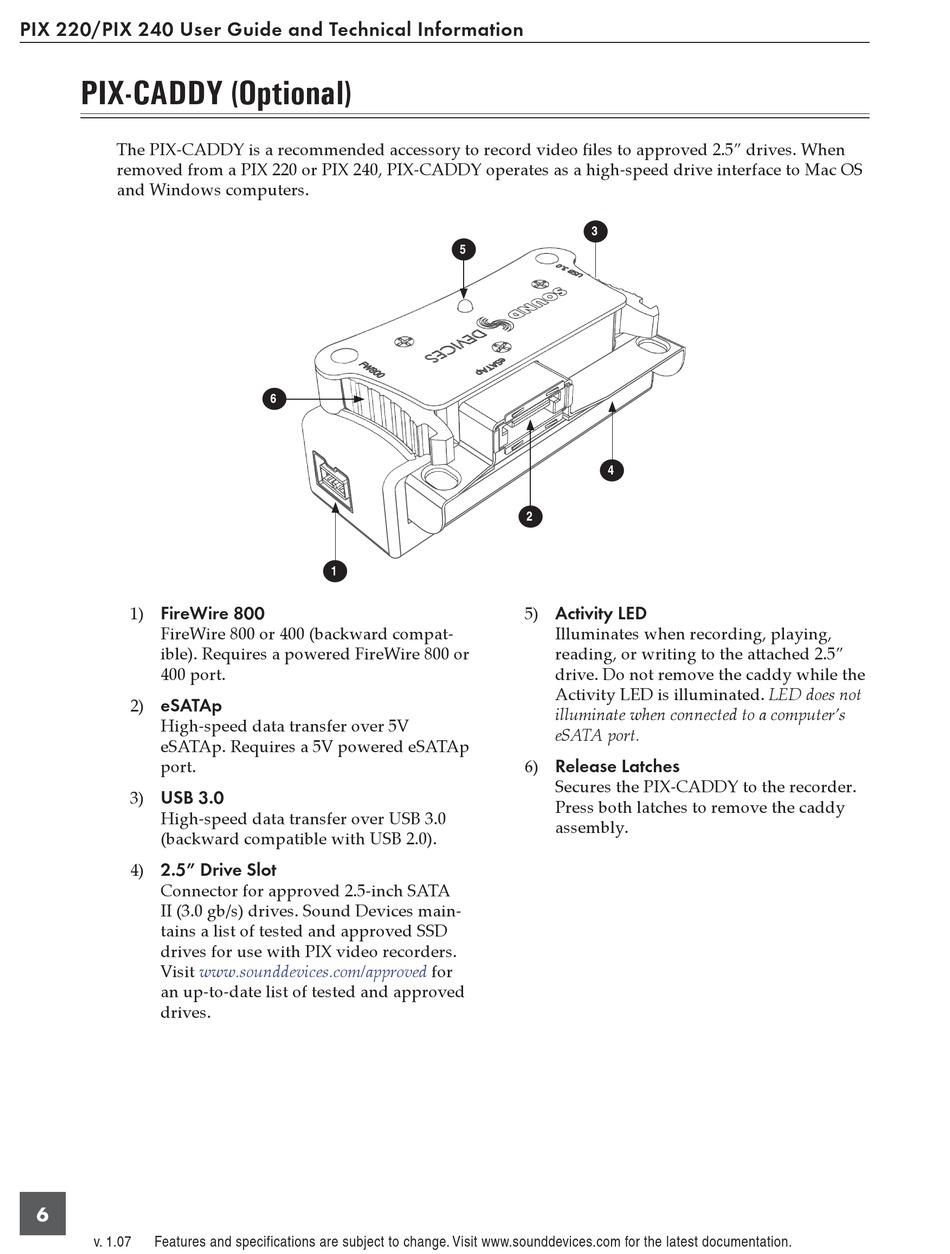

PIX-CADDY (Optional)

The PIX-CADDY is a recommended accessory to record video  les to approved 2.5”" drives. When
removed from a PIX 220 or PIX 240, PIX-CADDY operates as a high-speed drive interface to Mac OS
and Windows computers.
FireWire 800
1)
FireWire 800 or 400 (backward compat-
ible). Requires a powered FireWire 800 or
400 port.
eSATAp
2)
High-speed data transfer over 5V
eSATAp. Requires a 5V powered eSATAp
port.
USB 3.0
3)
High-speed data transfer over USB 3.0
(backward compatible with USB 2.0).
2.5" Drive Slot
4)
Connector for approved 2.5-inch SATA
II (3.0 gb/s) drives. Sound Devices main-
tains a list of tested and approved SSD
drives for use with PIX video recorders.
Visit
an up-to-date list of tested and approved
drives.
6
v. 1.07 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
6
1
www.sounddevices.com/approved
3
5
4
2
Activity LED
5)
Illuminates when recording, playing,
reading, or writing to the a ached 2.5”"
drive. Do not remove the caddy while the
Activity LED is illuminated. LED does not
illuminate when connected to a computer’'s
eSATA port.
Release Latches
6)
Secures the PIX-CADDY to the recorder.
Press both latches to remove the caddy
assembly.
for
