PIX 220/PIX 240 User Guide and Technical Information

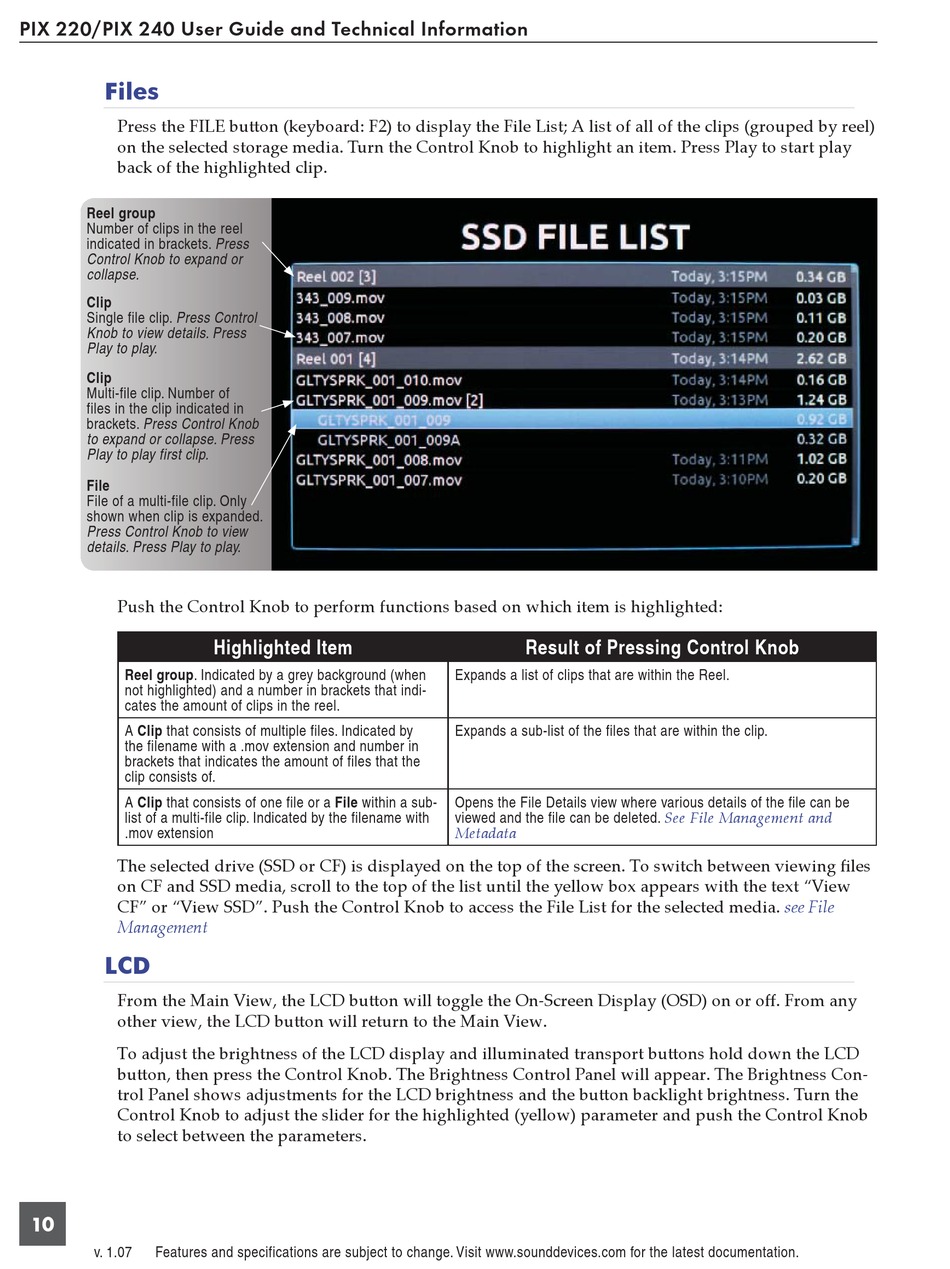

Files

Press the FILE bu on (keyboard: F2) to display the File List; A list of all of the clips (grouped by reel)
on the selected storage media. Turn the Control Knob to highlight an item. Press Play to start play
back of the highlighted clip.
Reel group
Number of clips in the reel
indicated in brackets. Press
Control Knob to expand or
collapse.
Clip
Single file clip. Press Control
Knob to view details. Press
Play to play.
Clip
Multi-file clip. Number of
files in the clip indicated in
brackets. Press Control Knob
to expand or collapse. Press
Play to play first clip.
File
File of a multi-file clip. Only
shown when clip is expanded.
Press Control Knob to view
details. Press Play to play.
Push the Control Knob to perform functions based on which item is highlighted:
Reel group. Indicated by a grey background (when
not highlighted) and a number in brackets that indi-
cates the amount of clips in the reel.
A Clip that consists of multiple files. Indicated by
the filename with a .mov extension and number in
brackets that indicates the amount of files that the
clip consists of.
A Clip that consists of one file or a File within a sub-
list of a multi-file clip. Indicated by the filename with
.mov extension
The selected drive (SSD or CF) is displayed on the top of the screen. To switch between viewing  les
on CF and SSD media, scroll to the top of the list until the yellow box appears with the text “"View
CF”" or “"View SSD”". Push the Control Knob to access the File List for the selected media.
Management

LCD

From the Main View, the LCD bu on will toggle the On-Screen Display (OSD) on or o . From any
other view, the LCD bu on will return to the Main View.
To adjust the brightness of the LCD display and illuminated transport bu ons hold down the LCD
bu on, then press the Control Knob. The Brightness Control Panel will appear. The Brightness Con-
trol Panel shows adjustments for the LCD brightness and the bu on backlight brightness. Turn the
Control Knob to adjust the slider for the highlighted (yellow) parameter and push the Control Knob
to select between the parameters.
10
v. 1.07 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
Highlighted Item Result of Pressing Control Knob
Expands a list of clips that are within the Reel.
Expands a sub-list of the files that are within the clip.
Opens the File Details view where various details of the file can be
viewed and the file can be deleted.
Metadata
See File Management and
see File
