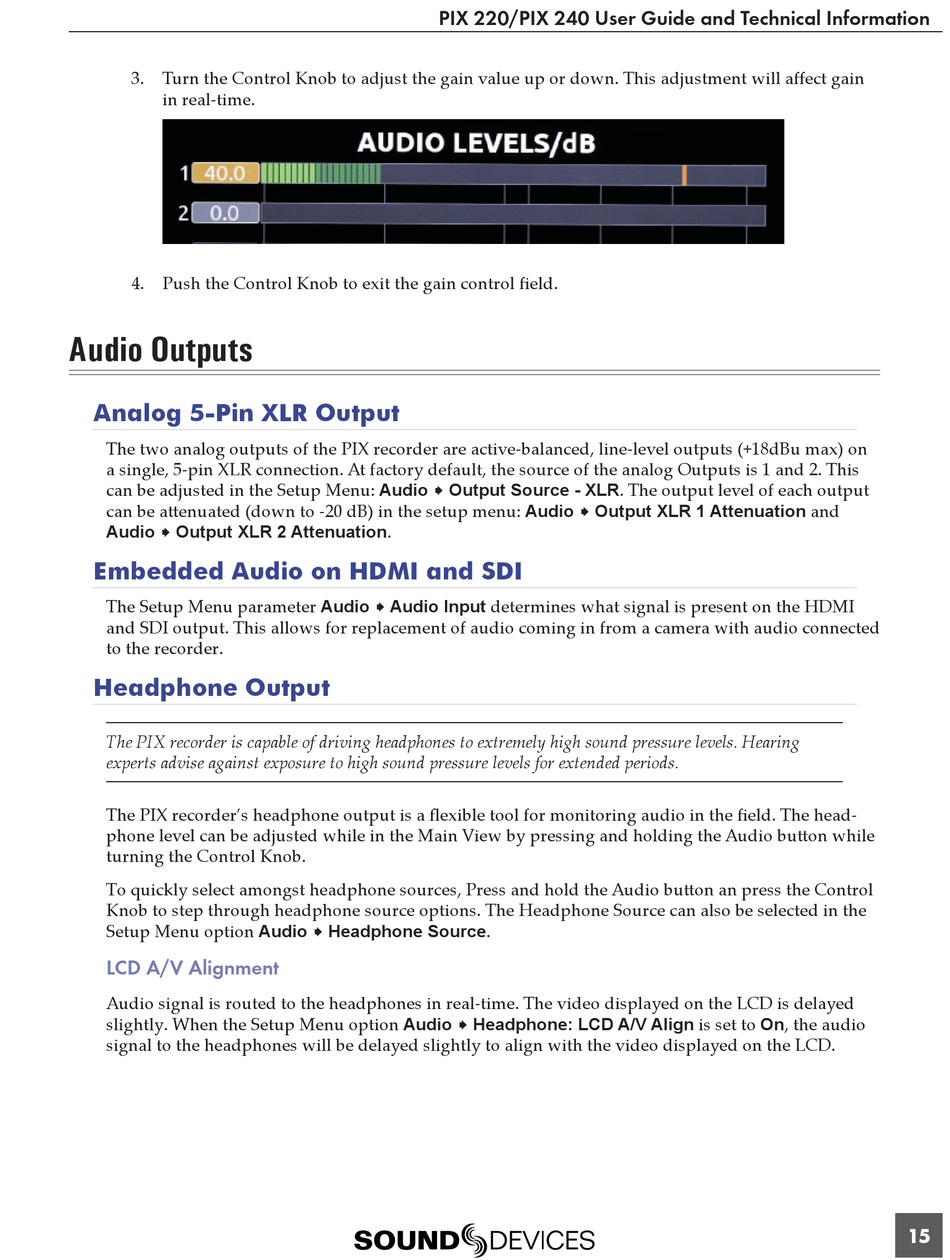

Audio Outputs; Analog 5-Pin Xlr Output; Embedded Audio On Hdmi And Sdi; Headphone Output - Sound Devices PIX 220 User Manual And Technical Information

3. Turn the Control Knob to adjust the gain value up or down. This adjustment will a ect gain
in real-time.
4. Push the Control Knob to exit the gain control  eld.

Audio Outputs

Analog 5-Pin XLR Output

The two analog outputs of the PIX recorder are active-balanced, line-level outputs (+18dBu max) on
a single, 5-pin XLR connection. At factory default, the source of the analog Outputs is 1 and 2. This
can be adjusted in the Setup Menu: Audio
can be a enuated (down to -20 dB) in the setup menu: Audio
Audio Output XLR 2 Attenuation.

Embedded Audio on HDMI and SDI

The Setup Menu parameter Audio
and SDI output. This allows for replacement of audio coming in from a camera with audio connected
to the recorder.

Headphone Output

The PIX recorder is capable of driving headphones to extremely high sound pressure levels. Hearing
experts advise against exposure to high sound pressure levels for extended periods.
The PIX recorder’'s headphone output is a  exible tool for monitoring audio in the  eld. The head-
phone level can be adjusted while in the Main View by pressing and holding the Audio bu on while
turning the Control Knob.
To quickly select amongst headphone sources, Press and hold the Audio bu on an press the Control
Knob to step through headphone source options. The Headphone Source can also be selected in the
Setup Menu option Audio
LCD A/V Alignment
Audio signal is routed to the headphones in real-time. The video displayed on the LCD is delayed
slightly. When the Setup Menu option Audio
signal to the headphones will be delayed slightly to align with the video displayed on the LCD.
PIX 220/PIX 240 User Guide and Technical Information
Output Source - XLR. The output level of each output
Audio Input determines what signal is present on the HDMI
Headphone Source.
Headphone: LCD A/V Align is set to On, the audio
Output XLR 1 Attenuation and
15
