PIX 220/PIX 240 User Guide and Technical Information

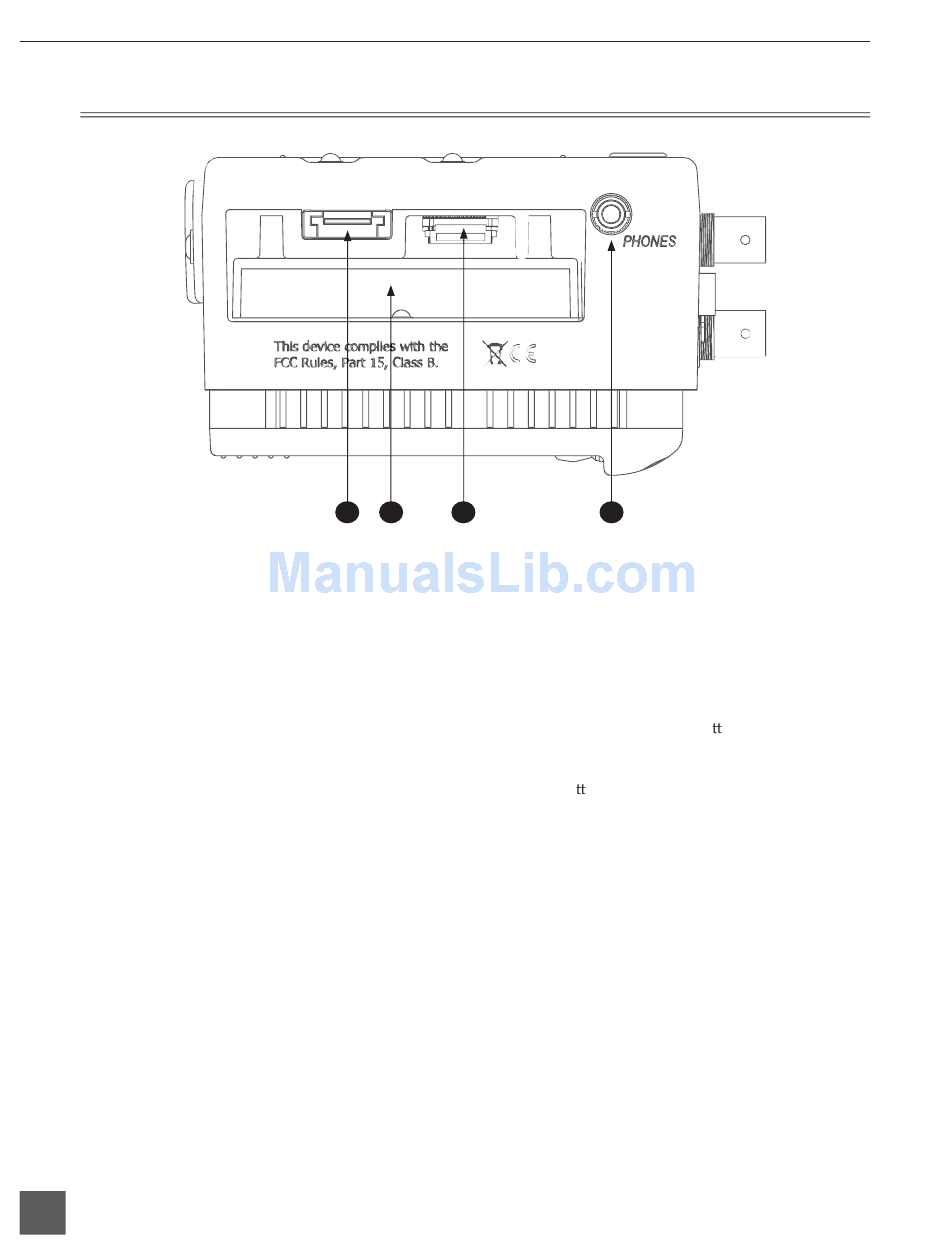

Left Panel Descriptions

eSATAp External Drive Connector
1)
Connection for portable, bus-powered
drives. Also compatible with (non-pow-
ered) eSATA to connect to large capacity
drives. Visit
proved
approved storage devices.
Drive Bay
2)
Insert an approved 2.5-in drive mounted
to a PIX-CADDY into the Drive Bay.
When not in use, keep covered with the
supplied rubber grommet. Drives can be
hot-swapped if the drive is not being ac-
cessed for recording or playback.
4
v. 1.07 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
1 2
www.sounddevices.com/ap-
for an up-to-date list of tested and
3 4
SATA PIX-CADDY Connector
3)
High-reliability eSATAp connection de-
signed to mate with the PIX-CADDY.
Headphone Output - 3.5 mm
4)
TRS stereo headphone connector. Can
drive headphones from 8 to 100 ohms
to very high headphone levels. Head-
phone volume is controlled by holding
down the AUDIO bu on and turning the
Control Knob. Headphone source signal
is changed by holding down the AUDIO
Bu on and pressing the Control Knob.
