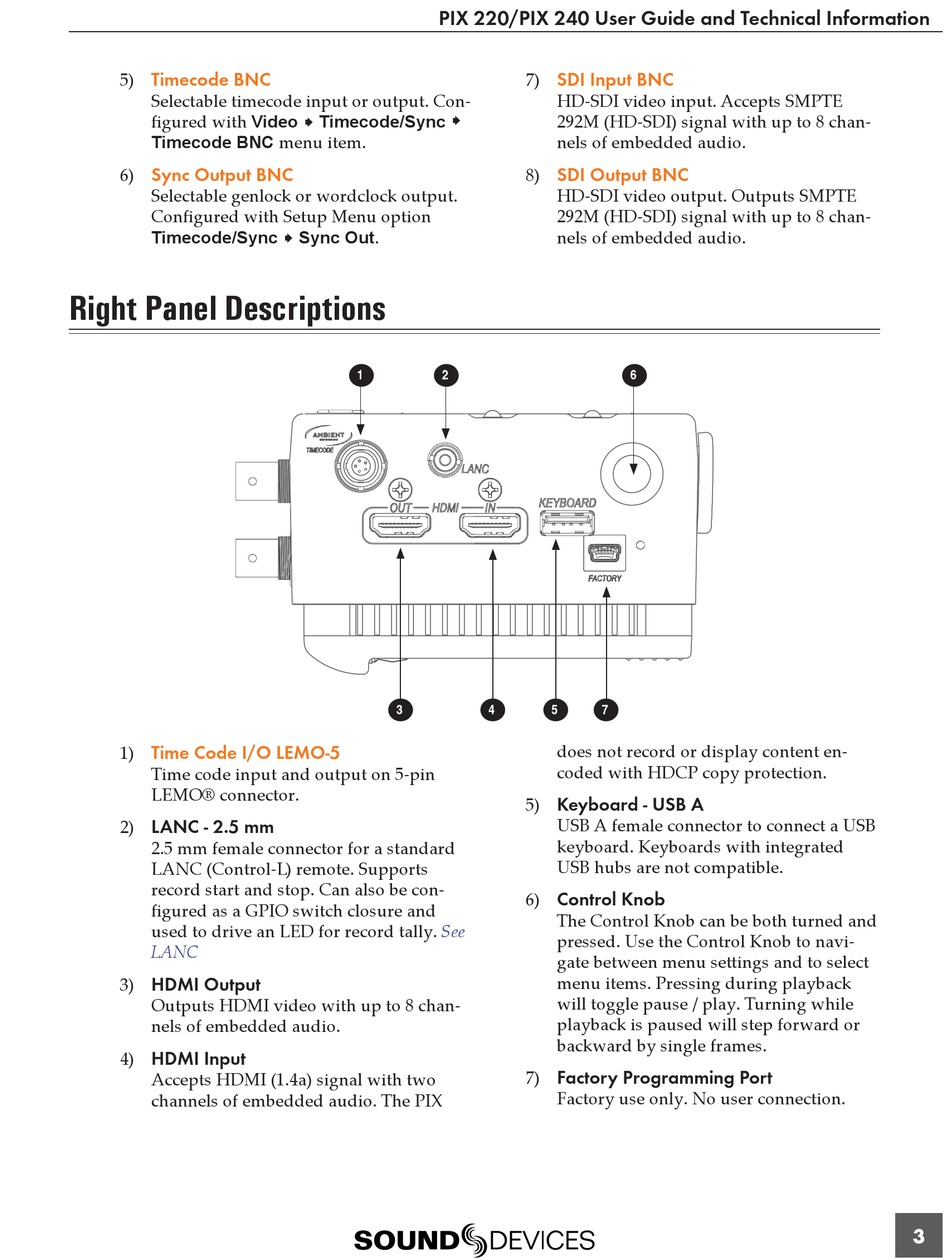

Right Panel Descriptions - Sound Devices PIX 220 User Manual And Technical Information

Timecode BNC
5)
Selectable timecode input or output. Con-
 gured with Video
Timecode BNC menu item.
Sync Output BNC
6)
Selectable genlock or wordclock output.
Con gured with Setup Menu option
Timecode/Sync

Right Panel Descriptions

Time Code I/O LEMO-5
1)
Time code input and output on 5-pin
LEMO® connector.
LANC - 2.5 mm
2)
2.5 mm female connector for a standard
LANC (Control-L) remote. Supports
record start and stop. Can also be con-
 gured as a GPIO switch closure and
used to drive an LED for record tally.
LANC
HDMI Output
3)
Outputs HDMI video with up to 8 chan-
nels of embedded audio.
HDMI Input
4)
Accepts HDMI (1.4a) signal with two
channels of embedded audio. The PIX
PIX 220/PIX 240 User Guide and Technical Information
Timecode/Sync
Sync Out.
1 2
3
See
SDI Input BNC
7)
HD-SDI video input. Accepts SMPTE
292M (HD-SDI) signal with up to 8 chan-
nels of embedded audio.
SDI Output BNC
8)
HD-SDI video output. Outputs SMPTE
292M (HD-SDI) signal with up to 8 chan-
nels of embedded audio.
6
4 5 7
does not record or display content en-
coded with HDCP copy protection.
Keyboard - USB A
5)
USB A female connector to connect a USB
keyboard. Keyboards with integrated
USB hubs are not compatible.
Control Knob
6)
The Control Knob can be both turned and
pressed. Use the Control Knob to navi-
gate between menu se ings and to select
menu items. Pressing during playback
will toggle pause / play. Turning while
playback is paused will step forward or
backward by single frames.
Factory Programming Port
7)
Factory use only. No user connection.
