Installation and Operation, cont'd
To an MLS 306/506
Series Switcher or
a 12VDC Power Supply
MLM Faceplate (rear)
IRCM-DV+
Control Module
Rear View
Additional Control Module
Rear View
IR Emitter
(Connect 2 per IRCM-DV+ and
1 per each additional IRCM.)
To a Control Module
(IRCM, ACM, RCM)
or an IR Link

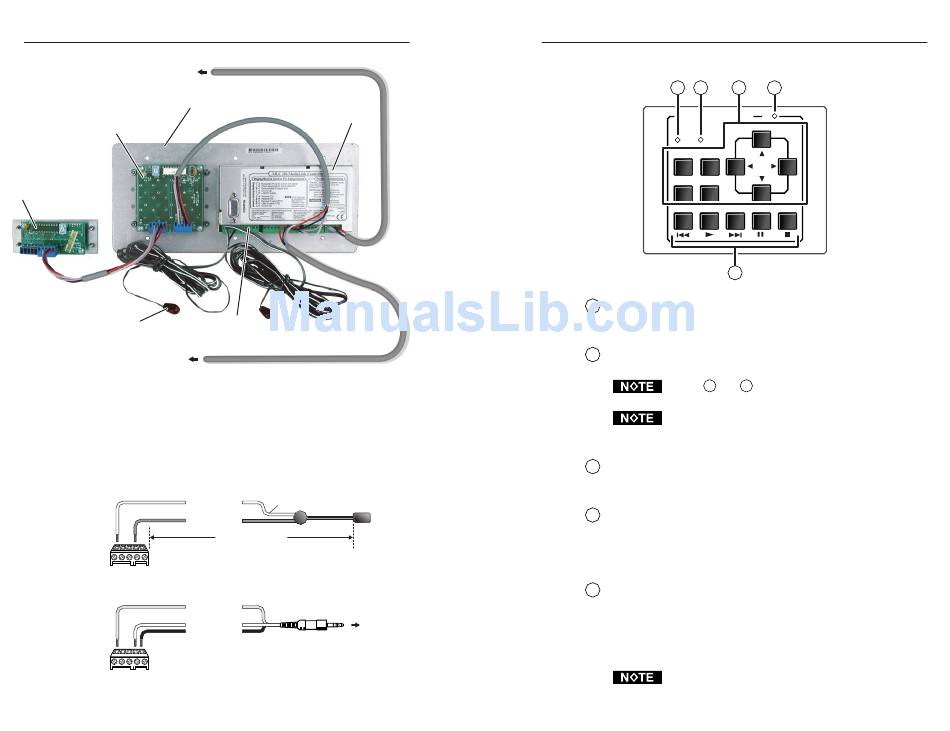

An IRCM-DV+ connected to an MLC 206 and another
control module
Connect one IR Emitter to the MLC's Display/Source
6.
Control IR connector for each IRCM control module that is
part of the system (up to 4 IR Emitters, maximum), or
connect an IR Broadcaster instead. Install two IR Emitters
for each IRCM-DV+. See the wiring illustrations below.
A
D
MLC
IR control
port
A B C D E
IR
For the IR Emitter only
A
D
E
MLC
IR control
port
A B C D E
IR
For the IR Broadcaster with emitter port
IRCM-DV+ • Installation and Operation
2-6
MLC 206
Rear View
RS-232
Projector
Connection
IR
Modulated IR
White striped wire only
Emitter
Ground
110 feet (33.5 m) maximum
Modulated IR
To IR Broadcaster
Ground
with emitter port
+12VDC output (#60-272-02)

Front Panel Features and Operation

Connect
up to 4 IR
Emitters
(max.).
1 2 5
DVD & VCR CONTROL
Tx
DVD VCR
TITLE MENU
TUNER
ENTER TV/VCR
PREV/REW PLAY NEXT/FWD PAUSE
IRCM-DV+
4
Front
DVD LED — This yellow LED (light-emitting diode) lights
1
while the MLC's input associated with the DVD player is
selected.
VCR LED — This yellow LED lights while the MLC's input
2
associated with the VCR is selected.
LEDs and turn off when an input that is not
1 2
associated with that part of the IRCM-DV+ is selected.
The corresponding MLC input must be selected (active)
before either part (DVD or VCR) of the IRCM-DV+ can
be activated and can control the DVD or VCR.
Tx (transmit) LED — After the IRCM-DV+ has been set up and
3
IR commands have been associated with its buttons, this LED
lights whenever one of the IRCM-DVD+'s buttons is pressed.
Basic functions buttons — These buttons replicate basic VCR
4
and DVD player controls. Once they have been set up through
IR learning, these buttons cause the VCR or DVD to rewind,
play, scan forward/move to the next item, or to pause or stop
the video and/or audio.
DVD/VCR setup/special function buttons — These buttons
5
replicate DVD player configuration controls such as the DVD
player's menu, title, enter, and arrow buttons. They also
replicate VCR controls such as the TV/VCR toggle and tuner
functions. Like the basic functions buttons, these must be set up
via IR learning before they can control the DVD player or VCR.
The optional MLA-Remote infrared remote control
cannot be used to control the IRCM-DV+.
