Pioneer PDP-61MXE1 Technical Manual

Pioneer 61-inch v ac type plasma display panel.
Hide thumbs

Advertisement

Table of Contents

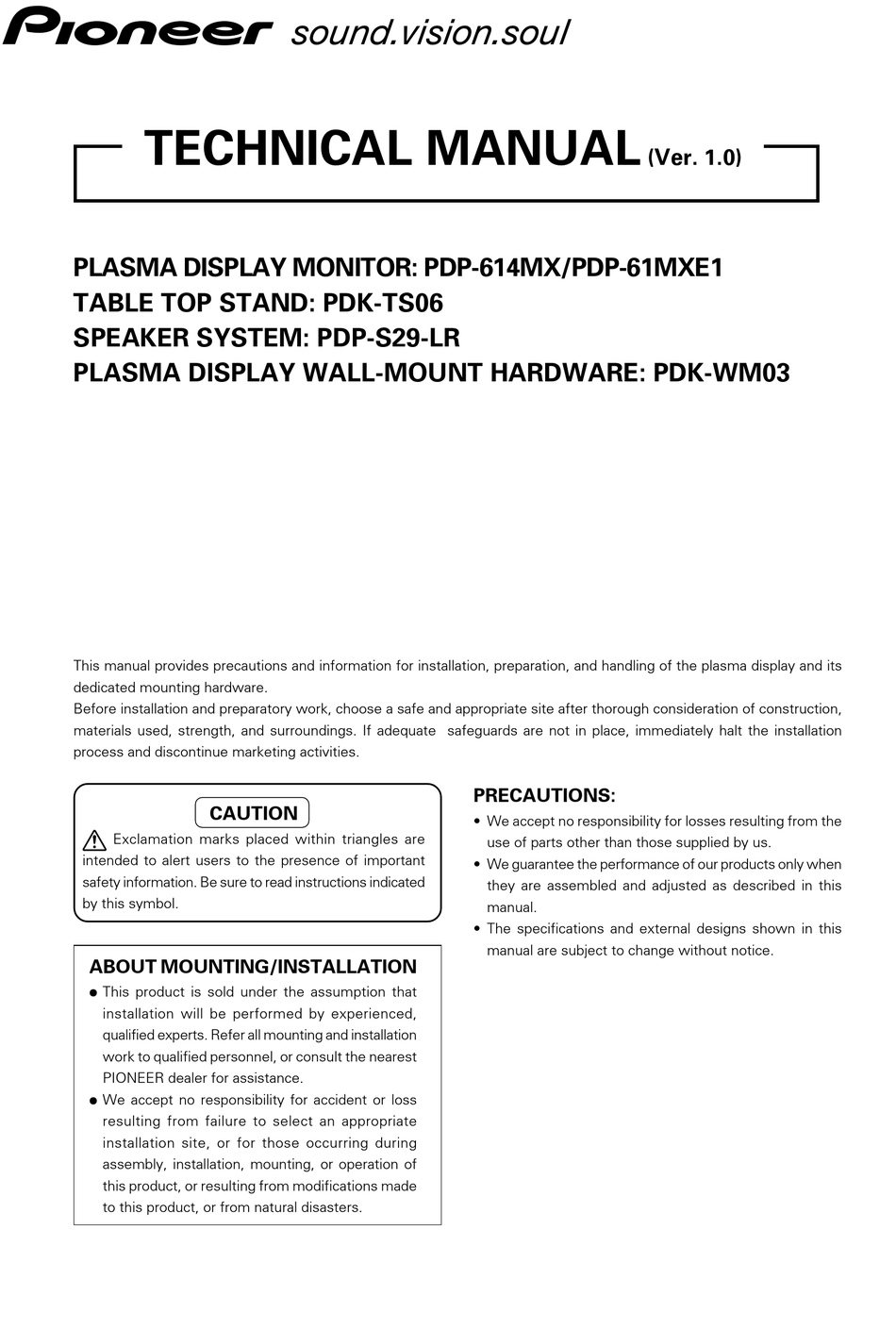

TECHNICAL MANUAL
PLASMA DISPLAY MONITOR: PDP-614MX/PDP-61MXE1
TABLE TOP STAND: PDK-TS06
SPEAKER SYSTEM: PDP-S29-LR
PLASMA DISPLAY WALL-MOUNT HARDWARE: PDK-WM03
This manual provides precautions and information for installation, preparation, and handling of the plasma display and its
dedicated mounting hardware.
Before installation and preparatory work, choose a safe and appropriate site after thorough consideration of construction,
materials used, strength, and surroundings. If adequate safeguards are not in place, immediately halt the installation
process and discontinue marketing activities.
CAUTION
Exclamation marks placed within triangles are
intended to alert users to the presence of important
safety information. Be sure to read instructions indicated
by this symbol.
ABOUT MOUNTING/INSTALLATION
÷ This product is sold under the assumption that
installation will be performed by experienced,
qualified experts. Refer all mounting and installation
work to qualified personnel, or consult the nearest
PIONEER dealer for assistance.
÷ We accept no responsibility for accident or loss
resulting from failure to select an appropriate
installation site, or for those occurring during
assembly, installation, mounting, or operation of
this product, or resulting from modifications made
to this product, or from natural disasters.
PRECAUTIONS:
• We accept no responsibility for losses resulting from the
use of parts other than those supplied by us.
• We guarantee the performance of our products only when
they are assembled and adjusted as described in this
manual.
• The specifications and external designs shown in this
manual are subject to change without notice.
(Ver. 1.0)

Advertisement

Table of Contents

   Also See for Pioneer PDP-61MXE1

   Related Manuals for Pioneer PDP-61MXE1

   Summary of Contents for Pioneer PDP-61MXE1

  • Page 1 TECHNICAL MANUAL (Ver. 1.0) PLASMA DISPLAY MONITOR: PDP-614MX/PDP-61MXE1 TABLE TOP STAND: PDK-TS06 SPEAKER SYSTEM: PDP-S29-LR PLASMA DISPLAY WALL-MOUNT HARDWARE: PDK-WM03 This manual provides precautions and information for installation, preparation, and handling of the plasma display and its dedicated mounting hardware.
  • Page 2: Table Of Contents

    Table of Contents 4.3.5 SCREEN Settings Menu ........47 SPECIFICATIONS Adjusting the Position, Size, PHASE, CLOCK ... 47 1.1 Specifications ..............3 4.3.6 Option1 Settings Menu ........48 1.2 External Dimensions ............6 Setting the on-screen display ......48 1.3 Part Names and Function ..........8 Setting the BNC connectors ......
  • Page 3: Specifications

    VIDEO1 Power requirements BNC pin PDP-614MX ......AC100V to 120V, 50/60Hz • Composite video signal ..1Vp-p/75Ω/negative sync. PDP-61MXE1 ......AC100V to 240V, 50/60Hz VIDEO2 In-rush ............less than 50A RCA pin Power factor ..........more than 0.92 • Composite video signal ..1Vp-p/75Ω/negative sync.
  • Page 4: Specifications

    Specifications INPUT Response Signals 7 PC signals supported • When the screen size is 4:3, each signal is converted to a 1024 dots × 768 lines signal. (Except for * 2, 3, 4 • When the screen size is Dot by Dot, the picture is displayed in the original resolution. •...
  • Page 5 Specifications *1 Only when using a graphic accelerator board that is capable of displaying 852 × 480. *2 This signal is converted to a 1024 dots × 640 lines signal. *3 The picture is displayed in the original resolution. *4 The aspect ratio is 5:4. This signal is converted to a 960 dots × 768 lines signal. *5 Normally the RGB select mode suite for the input signals is set automatically.
  • Page 6: External Dimensions

    External Dimensions 1.2 External Dimensions Weight: 61.0 kg Material: Front: Resin; Rear cover: Metal plate, Front protector panel: Glass Treatment: Front: Paint; Rear cover: Paint (All paints are Pioneer original colors) (Unit: mm) 1351 (SCREEN AREA) 592.5 LED&IR 1372 1470 FILTER SURFACE 27.9...
  • Page 7 External Dimensions <Light Sensor for the Remote> <Connection Panel> <Main Unit Operation Panel> POWER BUTTON LOCAL CONTROL 200.5...
  • Page 8: Part Names And Function

    Part Names and Function 1.3 Part Names and Function Front View 5 LEFT/– and RIGHT/+ 1 Power ( Functions as the CURSOR ( 2 / 3 ) buttons in the On- Turns the monitor’s power on and off. Screen Display (OSD) mode. 2 Remote sensor window 6 VOLUME Receives the signals from the remote control.
  • Page 9 RS-232C RIGHT channels. Never connect any component to this connector Please refer to your speaker’s owner’s manual. without first consulting your Pioneer installation C VIDEO1, 2, 3 (BNC, RCA, S-Video) technician. Connect VCR’s, DVD’s or Video Cameras, etc. here. This connector is used for plasma display setup VIDEO1 can be used for Input or Output.
  • Page 10: Pin Layout

    Pin layout 1.4 Pin layout DVI-D 24-pin connector (Digital) mini D-Sub 15-pin connector (Analog) The unit is equipped with a type of connector commonly used for digital. PC 1 (This cannot be used for an analog input.) (TMDS can be used for one link only.) 10 9 15 14 13 12 11 PC 3...
  • Page 11: Remote Control Unit

    Remote Control Unit 1.5 Remote Control Unit ¤ CURSOR (5 / ∞ / 2 / 3) Use these buttons to select items or settings and to adjust settings. # EXIT Press this button to exit the OSD controls in the main menu.
  • Page 12: Installation Site Requirements

    Installation Site Requirements 2.1 Installation Site Requirements If the site requires modifications or special preparations for installation of the plasma display or its mounting hardware, obtain permission in advance from the building owner or building authorities. To ensure installations safety, it is also important to determine the strength of the installation site with the help of the original building contractor.
  • Page 13 This display emits weak infrared radiation. If other products controlled with infrared remote controls are placed nearby, remote control function may be affected. In such cases, move them further away from the display or contact Pioneer authorized dealer for assistance.
  • Page 14: Installation Conditions

    Installation Conditions 2.2 Installation Conditions 2.2.1 Heat dissipation This unit has openings for effective ventilation at locations marked by arrows in the illustration below. The direction of the arrows shows the direction of airflow. To allow proper dissipation of heat from the unit, do not cover any of these openings.
  • Page 15: Calculating Heat Quantity

    2.2.3 Product mounting holes We recommend using mounting hardware available from Pioneer. If you use other mounting hardware items, mount them to the unit using the M8-bolt holes provided in the unit. Tighten the bolts with a torque between 50 and 80 kg/cm.
  • Page 16 Installation Conditions This unit is designed to be mounted using four bolt holes. For additional safety, we recommend securing it at four to six points on opposite sides of the horizontal and vertical center lines, as shown in the illustration below. Do not secure the unit at four points or at three points arranged in a single row, as shown below Methods for securing - Unfavorable examples Methods for securing - Favorable examples...
  • Page 17: Anchoring Pc And Similar Apparatuses

    Installation Conditions 2.2.4 Anchoring PC and similar apparatuses M4x4 These holes are used to anchor and attach a PC or other apparatus. They are M4 bolt holes x4, their horizontal pitch is 445mm and vertical pitch is 102mm. Usage limitations: •...
  • Page 18: Installation Procedures

    Installation Procedures 2.3 Installation Procedures 2.3.1 Transportation precautions 1 Any transportation of the unopened unit in its packaging should be done by two or more persons. To avoid injury or damage, do not lift the package by its packing bands. 2 When transporting or storing the unit, always position it vertically - never horizontally.
  • Page 19: Wiring

    Installation Procedures 2.3.4 Wiring 1) Connecting the power cable • Check to make sure the electrical outlet is located so that it is easy to remove the power plug. • Insert the power plug firmly. An incomplete connection causes noise. •...
  • Page 20 Installation Procedures 4) Attaching the ferrite cores Note When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends DVI cable (not supplied) Connector of the cable. And regarding DVI and power cable, band band attach the supplied ferrite cores.
  • Page 21: Special Installation

    Special Installation (Mounting to fittings) 2.4 Special Installation The unit can be hung from or embedded in a wall, but such special installations impose additional limitations on operating temperatures and other operational factors. Examine installation methods and the ambient conditions for your installation site, and refer to sections “2.1 Installation Site Requirements (pg.
  • Page 22: Hanging On The Wall

    Special Instruction (Hanging on the wall) 2.4.2 Hanging on the wall Carefully read the following before attempting to hang the unit on a wall, and observe the various limitations specified below. Be sure to mount the unit so that twisting, bending, or any other deformation does not exceed 4 mm. Ventilation Requirements for enclosure mounting To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.
  • Page 23: Embedding In The Wall

    Special Installation (Embedding in the wall) 2.4.3 Embedding in the wall Carefully read the following before trying to embed the unit in a wall, and make sure to observe all the limitations specified below. Be sure to mount the unit so that twisting, bending, or other deformation of the unit does not exceed 4 mm. (1) Embedding in walls with space provided behind the unit (With no obstructions within a distance of 300 mm from the back surface of the unit).
  • Page 24: Ceiling Suspension (with Wires)

    Special Installation (Ceiling suspension (with wires)) 2.4.4 Ceiling suspension (with wires) When suspending it from a ceiling with wire, the unit must be attached at four or more points with these points distributed symmetrically on both sides of the vertical and horizontal center lines. Attach this fan on the left side When suspending from a ceiling with wire, use the brackets shown below to prevent concentrating loads on the upper two fixing points.
  • Page 25 Special Installation (Ceiling suspension (with wires)) Methods of Securing: Basic methods of securing are shown below. Avoid blocking or covering areas aside from those indicated by . Before attaching the unit to fittings, double-check that the thickness and height of the fittings, and the number of fixing bolts is correct. (Also refer to 2.4.1 “Mounting to fittings (pg.
  • Page 26: Hanging On The Wall (lengthwise)

    Special Installation (Hanging on the wall (lengthwise)) 2.4.5 Hanging on the wall (lengthwise) Carefully read the following before attempting to mount the unit on the wall, and observe the various limitations specified below. Be sure to mount the unit so that twisting, bending, or any other deformation does not exceed 4 mm. Shaded areas indicate attachment points for mounting hardware.
  • Page 27 Special Installation (Hanging on the wall (lengthwise)) Methods of Securing: Basic methods of securing are shown right. Avoid blocking or covering areas aside from those indicated by . Before attaching the unit to fittings, double-check that the thickness and height of the fittings, and the number of fixing bolts is correct.
  • Page 28: Place Product Upright And Flush Into Wall (embedding In The Wall)

    Special Installation (Place product upright and flush into wall (embedding in the wall)) 2.4.6 Place product upright and flush into wall (embedding in the wall) Carefully read the following before trying to embed the unit in a wall, and make sure to observe all the limitations specified below.
  • Page 29: Installed Facing Upward

    Special Installation (Installed facing upward) 2.4.7 Installed facing upward (1) When installed on top of a horizontal surface <case of an open space other than a horizontal surface> 50mm or more Horizontal surface ✩ Operating Temperature Restrictions • Ambient temperature: 0 to 35 °C •...
  • Page 30: Horizontal Connections

    Special installation (Horizontal connections) 2.4.8 Horizontal connections While the display is designed to accommodate side-by-side installations, keep in mind that specific installation configurations may affect ventilation. Observe the following requirements: 1 Installation of up to two units (Horizontal connection) The following table lists the operating temperature conditions. Use the units under conditions that keep the outside atmosphere in this range.
  • Page 31: Multiple

    Special installation (Multiple) 2.4.9 Multiple While the display is designed to accommodate side-by-side installations, keep in mind that specific installation configurations may affect ventilation. Observe the following requirements: 1 Installing multiple (2 Vertical units) The following table lists the operating temperature conditions. Use the units under conditions that keep the outside atmosphere in this range.
  • Page 32: How To Use The Standard Mounting Components

    How to use the standard mounting components 3.1 Table Top Stand: PDK-TS06 3.1.1 Specifications External dimensions ....1125 (W) × 207.4 (H) × 440 (D) mm (44.3 (W) × 8.2 (H) × 17.3 (D) in.) Weight ........8.5 kg (18.7 lbs) Package dimensions ....
  • Page 33: Speaker System: Pdp-s29-lr

    Speaker System: PDP-S29-LR 3.2 Speaker System: PDP-S29-LR 3.2.1 Specifications External dimensions ...... 90 (W) × 880 (H) × 96 (D) mm (3.5 (W) × 34.6 (H) × 3.8 (D) in.) 1652 (W) × 880 (H) × 119 (D) mm (65 (W) × 34.6 (H) × 4.7 (D) in.) [When mounted to the plasma display] Weight ..........
  • Page 34: Wall-mounted Type Tiltable Fixed Plasma Display Hardware Pdk-wm03

    Wall-Mounted Type Tiltable Fixed Plasma Display Hardware PDK-WM03 3.3 Wall-Mounted Type Tiltable Fixed Plasma Display Hardware PDK-WM03 3.3.1 Specifications External dimensions ....950 (W) × 646.2 (H) × 45 (D) mm (37.4 (W) × 25.4 (H) × 1.8 (D) in.) Weight ........
  • Page 35: External Dimensions

    Wall-Mounted Type Tiltable Fixed Plasma Display Hardware PDK-WM03 3.3.2 External Dimensions (Unit: mm) 15 94.5 (81.5) (50)
  • Page 36: Before Beginning Adjustment/setting

    Before Beginning Adjustment/Setting 4.1 Before Beginning Adjustment 4.1.1 Screen Size Note DOT BY DOT and 4:3 display of PC 4:3 input are switched by turning picture mode switching on and off. Unit % (percent) Video signal Video signal Personal computer signal Personal computer Screen size Remarks...
  • Page 37: Menu Mode

    – OSD ADJUST 1/2/3/4/5/6 OSD ANGLE – OSD ORBITER OFF/ON – OSD CONTRAST LOW/NORMAL – BNC INPUT RGB/COMP. (PDP-614MX) – RGB/COMP./SCART1/SCART2 (PDP-61MXE1) D-SUB INPUT RGB (PDP-614MX) – RGB/SCART3 (PDP-61MXE1) RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/WIDE3/ AUTO – WIDE4/DTV 1080B YES* – HD SELECT 1080B/1035I/1080A –...
  • Page 38 OFF/ON(DIVIDER/SOURCE/ WORK TIME) – ADVANCED OSD OFF/ON LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/ (PDP-614MX) – ENGLISH ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/ (PDP-61MXE1) – COLOR SYSTEM AUTO/3.58 NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM AUTO – – SOURCE INFORMATION – *1: Only when AUTO PICTURE is OFF *2: RGB/PC only *3: 1080i input only...
  • Page 39: Last Memory

    Before Beginning Adjustments 4.1.3 Last Memory Approximately 1 second after changing a setting, it is read into EEPROM. If the power is cut off during setting, the setting is not entered in memory. Note In the case of a permanent installation, when the entire system is started or stopped by turning ON/OFF the breaker, use the system only after first saving adjustments and settings in the last memory according to the timing described above.
  • Page 40: Normal Operation Mode

    Normal Operating Mode 4.2.6 DIGITAL ZOOM 4.2 Normal Operation Mode Digital zoom specifies the picture position and enlarges 4.2.1 About normal operation mode the picture. The following controls are possible in the normal operation 1. Press the POINT ZOOM button to display the pointer. mode.
  • Page 41: Off Timer

    Normal Operating Mode 4.2.8 OFF TIMER 4.2.9 SCREEN SIZE Operation (manual) To set the off timer: With this function, you can select one of six screen sizes. The off timer can be set to turn the power off after 30, 60, When viewing videos or digital video discs 90 or 120 minutes.
  • Page 42: Screen Size Operation With Computer Signals

    Normal Operating Mode 2.35:1 size screen 4.2.10 SCREEN SIZE Operation with Computer Signals Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen. 1.Press the SCREEN SIZE button on the remote control. 2.
  • Page 43 Normal Operating Mode FULL size screen The image is expanded in the horizontal and vertical direction. ZOOM size screen When wide signals are input. FULL DOT BY DOT The image is dot by dot resolution. * “D BY D” can be switched only when a 1280 dot x 768 line signal is input.
  • Page 44: Menu Mode

    SVENSKA ..Swedish FRANÇAIS ..French PICTURE 1 / 2 ....Japanese CONTRAST ESPAÑOL ..Spanish BRIGHTNESS SHARPNESS 7 Language settings (PDP-61MXE1) COLOR TINT ENGLISH ... English AV SELECTION DEUTSCH ..German ITALIANO ... Italian NEXT PAGE FRANÇAIS ..French SVENSKA ..
  • Page 45: Picture Settings Menu

    Menu Mode Reducing noise in the picture 4.3.3 Picture Settings Menu Use these settings if the picture has noise due to poor Adjusting the picture reception or when playing video tapes on which the picture The contrast, brightness, sharpness, color and tint can be quality is poor.
  • Page 46: Adjusting The Color To The Desired Level

    Menu Mode Adjusting the color to the desired level Making the Low Tone adjustments Use this procedure to adjust the white balance for each This feature allows more detailed tone to be reproduced color temperature to achieve the desired color quality. especially in the dark area.
  • Page 47: Sound Settings Menu

    Menu Mode 4.3.4 SOUND Settings Menu 4.3.5 SCREEN Settings Menu Adjusting the treble, bass and left/right balance Adjusting the Position, Size, PHASE, CLOCK and audio input select The position of the image can be adjusted and flickering of the image can be corrected. The treble, bass and left/right balance can be adjusted to suit your tastes.
  • Page 48: Option1 Settings Menu

    Information 7 DISPLAY OSD settings Setting the PC2/COMPONENT2 connectors ON: The informations on screen size, volume control, (PDP-61MXE1) etc. will be shown. Select whether to set the PC2/COMPONENT2 to RGB, OFF: The informations on screen size, volume control, component or SCART1, 2.
  • Page 49: Setting A Computer Image To The Correct Rgb Select Screen

    Menu Mode Setting high definition images to the suitable Setting the PC1 connector (PDP-61MXE1) screen size Select one of the signals being transmitted to the PC1 terminal. Use this procedure to set whether the number of vertical Example: Set the D-SUB INPUT mode to “SCART3”...
  • Page 50: Option2 Settings Menu

    Menu Mode Setting the picture to suit the movie 4.3.7 Option2 Settings Menu The film image is automatically discriminated and projected Setting the power management for computer in an image mode suited to the picture. images [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), This energy-saving (power management) function 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only] automatically reduces the monitor’s power consumption...
  • Page 51 Menu Mode ORBITER INVERSE Use this to set the inverse mode or to display a white Use this to set the picture shift. screen. Example: Setting “ORBITER” to “AUTO1” Example: Setting “INVERSE” to “WHITE” On “ORBITER” of “LONG LIFE” menu, select “AUTO1”. On “INVERSE”...
  • Page 52: Setting The Gray Level For The Side Mask

    Menu Mode SCREEN WIPER SOFT FOCUS When this is set to ON, a white vertical bar moves Reduces edges and softens the image. repeatedly from the left and of the screen to the right end Example: Setting “SOFT FOCUS” to “2” at a constant speed.
  • Page 53: Setting The Screen Size For S1/s2 Video Input

    Menu Mode Setting the screen size for S1/S2 video input Setting the signal and black level for DVI signal If the S-video signal contains screen size information, the Choose the signal for the DVI connector (PC or STB/DVD) image will be automatically adjusted to fit the screen when and set the black level.
  • Page 54: Option3 Settings Menu

    Menu Mode PROGRAM TIMER 4.3.8 Option3 Settings Menu This sets the day and time at which the power will be Using the timer switched ON/OFF as well as the input mode. This function sets the monitor to turn ON/OFF Example: Setting so that the power will be switched automatically at a set time.
  • Page 55: Setting The Power On Mode

    Menu Mode Setting the power on mode Enabling/disabling remote control wireless This function sets the input mode at the time the power is transmission switched on. This function enables/disables remote control wireless transmission. Example: Setting “VIDEO2” Example: Setting “OFF” Set “ADVANCED OSD” to “ON” in the main menu (1/2), then perform the following operations.
  • Page 56: Id Number Setting

    Menu Mode ID number setting Note: A contingency method of shutting off the electric When using more than one of these displays, this function power should be used in cases of emergency during video sets ID numbers so that operation of the remote control does wall setup.
  • Page 57 Menu Mode DISP. MODE SCREEN Select the screen mode from between two options The position of the image can be adjusted and flickering (NORMAL, ADJUST). of the image can be corrected. Example: Setting “ADJUST” Example: Adjusting the vertical position On “DISP. MODE” of “VIDEO WALL” menu, select On “VIDEO WALL”...
  • Page 58: Advanced Osd Settings Menu

    Menu Mode ABL LINK REPEAT TIMER Use this function to set a uniform brightness for each Use this to set two timers. Each timer can use the display. DIVIDER, SOURCE and WORK TIME functions. Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.
  • Page 59: Color System Settings Menu

    Menu Mode 4.3.10 Color System Settings Menu Setting the video signal format Use these operations to set the color systems of composite video signals or Y/C input signals. Example: Setting the color system to “3.58 NTSC” On the MAIN MENU, select “COLOR SYSTEM”, then press the MENU/SET button.
  • Page 60: Memory Area Table

    Menu Mode 4.3.12 Memory Area Table Item Memory PICTURE CONTRAST 1 for each input mode BRIGHTNESS SHARPNESS COLOR TINT AV SELECTION COLOR TEMP. WHITE BALANCE GAMMA LOW TONE C. DETAIL ADJ BASS SOUND 1 for each input from AUDIO INPUT 1 to 3 TREBLE BALANCE AUDIO INPUT1...
  • Page 61: Rs-232c Adjustment Mode

    RS-232C Adjustment Mode 4.4.2 Communication Conditions 4.4 RS-232C Adjustment Mode 1 Transmission mode Start-stop synchronous 4.4.1 Connection method 2 Interface RS232C Perform the connections as shown below. 3 Baud rate 9600 Personal Computer 4 Data 8 bit Plasma display (PC) or other external 5 Parity 0 (no parity) device...
  • Page 62 RS-232C Adjustment Mode Check sum, error processing, ACK Method of controlling the set based on the set ID The received data is checked using both the following When multiple plasma displays are controlled, it is possible check sum and the RS232C parity (odd). to control them separately by using commands using the setID.
  • Page 63: Command Reference

    RS-232C Adjustment Mode 4.4.4 Command Reference Table CMD1 CMD2 Table CMD1 CMD2 Power ON Running Sense Power OFF OSM OBITER Input Switch Change Input Skip VOLUME Gain Data SERIAL No. Request AUDIO Mute ON S1/S2 SELECT AUDIO Mute OFF SOFT FOCUS CONTRAST Gain Data PLUG and PLAY BRIGHT Gain Data...
  • Page 64: Power On

    08H : PC2-BNC 0CH : PC3-DVI 3FH 60H 80H 3FH 00H CKS 0DH : COMPNT3 (SCART3) The display sends the following ACK when the input switches. 3FH 60H 80H 47H 00H CKS * “SCART1, 2, 3” function is only PDP-61MXE1.
  • Page 65: Contrast Gain Data

    RS-232C Adjustment Mode 07. CONTRAST Gain Data 09. SHARPNESS Gain Data Function Function The external control apparatus changes the CONTRAST The external control apparatus changes the SHARPNESS Gain Data of the display. Gain Data of the display. Transmit Data Transmit Data DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DATA00 : USER PICTURE Gain Flag...
  • Page 66: Tint Gain Data

    RS-232C Adjustment Mode 11. TINT Gain Data 13. COLOR TEMP SELECT Function Function The external control apparatus changes the TINT Gain Data The external control apparatus changes the COLOR TEMP of the display. of the display. Transmit Data Transmit Data DFH 80H 60H 00H 01H DATA00 CKS DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DATA00 : USER PICTURE Gain Flag...
  • Page 67: Green Gain Data

    RS-232C Adjustment Mode 15. GREEN Gain Data 17. DNR MODE Set Function Function The external control apparatus changes the GREEN Gain The external control apparatus selects the NR Mode of Data of the display. the display. Transmit Data Transmit Data DFH 80H 60H 7FH 04H DATA00–DATA03 CKS DFH 80H 60H C0H 01H DATA00 CKS DATA00 : USER PICTURE Gain Flag...
  • Page 68: Treble Gain Data

    RS-232C Adjustment Mode 19. TREBLE Gain Data 21.SCREEN MODE Select Function Function The external control apparatus changes the TREBLE Gain The external control apparatus switches the SCREEN Data of the display. Mode of the display. Transmit Data Transmit Data DFH 80H 60H 51H 01H DATA00 CKS DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DATA00 : USER PICTURE Gain Flag DATA00 02H : wide...
  • Page 69: H.position Gain Data

    RS-232C Adjustment Mode 23. H.POSITION Gain Data 25. H.SIZE Gain Data Function Function The external control apparatus changes the H.POSITION The external control apparatus changes the H-WIDTH Gain Gain Data of the display. Data of the display. Transmit Data Transmit Data DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS DATA00 : USER PICTURE Gain Flag...
  • Page 70: Phase Gain Data

    RS-232C Adjustment Mode 27. PHASE Gain Data 29. OSM ADJ. POSITION Data Function Function The external control apparatus changes the PHASE Gain The external control apparatus switches the Menu Position Data (phase) of the display. of the display. Transmit Data Transmit Data 7FH 60H 80H 1AH 02H DATA00 DATA01 CKS DFH 80H 60H 7FH 03H DATA00 DATA01 DATA02 CKS...
  • Page 71: Purecinema Set

    RS-232C Adjustment Mode 32. PURECINEMA Set 34. SCREEN WIPER Set Function Function The external control apparatus sets PURECINEMA MODE. The external control apparatus sets the SCREEN WIPER of the plasma display. Transmit Data Transmit Data DFH 80H 60H C1H 01H DATA00 CKS DFH 80H 60H C8H 04H DATA00–DATA03 CKS DATA00 : CINEMA MODE Set 01H : on...
  • Page 72: Hd Select

    VIDEO 1 is set to AUDIO 1, “not yet supported” is The external control apparatus selects HD Select of the returned. display. * “SCART1, 2, 3” function is only PDP-61MXE1. Transmit Data DFH 80H 60H 8AH 01H DATA00 CKS 37. BNC INPUT...
  • Page 73: Language Select

    0BH : RUSSIAN 09H : 9 * “JAPANESE” function is only PDP-614MX. Horizontal synchronous polarity DATA04 00H : – * “RUSSIAN” function is only PDP-61MXE1. 01H : positive polarity 02H : negative polarity Vertical synchronous polarity 41. COLOR SYSTEM Select DATA05 00H : –...
  • Page 74: Input Mode Request

    0EH : PC3-DVI FFH : -01 0FH : COMPNT3 (SCART3) 00H : 0 01H : +01 * “SCART1, 2, 3” function is only PDP-61MXE1. 20H : +32 44. VIDEO ADJ. Request DATA08 : RED Gain (HIGH) D8H : -40 FFH : -01...
  • Page 75: Audio Select Request

    RS-232C Adjustment Mode 45. Audio Select Request 47. MODEL NAME Request Function Function The external control apparatus inquires about the present The external control apparatus inquires about the name of combination of audio input and video input to the display. the model of plasma display.
  • Page 76: C.detail Adj

    RS-232C Adjustment Mode 49. C.DETAIL ADJ 50. GAMMA GAIN Data Function Function It can adjust each color, R,G, or B that should be stressed. The external control apparatus changes the Gamma of the display. Transmit Data Transmit Data DFH 80H 60H 0DH 07H DATA00–DATA06 CKS DFH 80H 60H 13H 02H DATA00 DATA01 CKS DATA00 : RED 00H : -32...
  • Page 77: Input Skip

    RS-232C Adjustment Mode 52. OSM OBITER 55. S1/S2 SELECT Function Function Each time OSM is displayed, OSM is shifted in order to The external control apparatus switches between the S1/ reduce the glare on the screen during OSM display. S2 detection function setting of the plasma display. Transmit Data Transmit Data DFH 80H 60H 5FH 01H DATA00 CKS...
  • Page 78: Plug And Play

    RS-232C Adjustment Mode 57. PLUG and PLAY 60. OSM Select Function Function The external control apparatus switches the EDID setting The external control apparatus turns the screen display of the plasma display. (OSD) of the display on and off. Transmit Data Transmit Data DFH 80H 60H 8EH 01H DATA00 CKS DFH 80H 60H 58H 01H DATA00 CKS...
  • Page 79: Timer Switch

    DATA00 : 00H : timer OFF 01H : timer ON 7FH 60H 80H 30H 00H CKS 63. TIMER PROGRAM SETTING * “SCART1, 2, 3” function is only PDP-61MXE1. Function The external control sets the TIMER PROGRAM of the 64.PRESENT TIME SETTING display.
  • Page 80: Multi Mode Select

    RS-232C Adjustment Mode 65. MULTI MODE Select Function The external control apparatus changes the MULTI MODE 7FH 60H 80H 03H 03H DATA00 DATA01 DATA02 CKS of the display. DATA00 (SCREEN DIVIDER SETTING) 01H : single mode Transmit Data 02H : multi-mode 1 screen DFH 80H 60H C7H 03H DATA00 DATA01 DATA02 CKS 03H : multi-mode 4 screens 04H : multi-mode 9 screens...
  • Page 81: Multi Mode Request

    RS-232C Adjustment Mode 66. MULTI MODE Request 67. AUTO ID SET START Function Function It requests the MULTI MODE status of the display in The external control apparatus automatically sets ID for response to a request for MULTI MODE information of multiple displays.
  • Page 82: Power Delay On

    RS-232C Adjustment Mode 70. POWER DELAY ON 72. ORBITER SET (for 4 screens and 9 screens) Function Function This sets the picture shift function (*1). It switches between PC Menu, Long Life, and Picture Shift. This external control apparatus turns on power to multiple displays with a time lag.
  • Page 83: Picture Size

    7FH 60H 80H 64H 00H CKS 06H : COMPNT2 (SCART1/SCART2) * After executing AUTO ID, transmit this command. 07H : PC1DSUB * “SCART1, 2, 3” function is only PDP-61MXE1. 08H : PC2-BNC 0CH : PC3-DVI 0DH : COMPNT3 (SCART3) 77. D-SUB INPUT...
  • Page 84: Precautions

    Precautions 5.1 Precautions (1) Safety precautions • The plasma display panel that is installed on this product and the surface of the product are made of glass. Because it may break if it is struck, please handle it extremely carefully. And be very careful to avoid injury by pieces of broken glass.
  • Page 85 Precautions 7 Self diagnosis functions When the plasma display is incorrectly operated or connected, a message appears on the screen. Read the message to check on the state of the plasma display. 7 State of the STANDBY/ON lamps Status STANDBY/ON lamp Main power [ON] Green Normal...
  • Page 86: The Plasma Display Burn-in Phenomenon

    The plasma display burn-in phenomenon 1) The burn-in phenomenon Burn-in occurs when a still picture with brightness higher than its surroundings is displayed on a specified part of the display area for a long period of time. The bright part emits more light than the dark part, and its phosphor elements deteriorate more rapidly than the other parts.
  • Page 87: Maintenance

    Maintenance 1) Be sure to unplug the power cord from the power outlet before performing maintenance. 2) Cabinet and remote-control unit Never use solvents such as benzine or thinner. Using such solvents could cause the cabinet and remote control to degrade and could cause the coating to peel.
