Configuration Manual
Ascom i75 VoWiFi Handset
11.2 Quick Access to the VoWiFi Handset´s Basic Settings
To identify some basic settings, enter the following code in the handset.
Setting
IP address
MAC address
Software version
Current ESSID
Current BSSID
Current RSSI
Current channel
Site survey functions
Currently used transmit speed A Hot key or Soft key can be programmed as a short-cut
Total transmit failures
Note: Other settings and information can be found on the i75 internal web
administration page, refer to chapter
Page on page 33.

11.3 Troubleshooting from the i75 Internal Web Administration Page

It is possible to view statistics for Voice and WLAN connectivity and to create debug and
error logs from the i75 internal web administration page. The logs and the statistics can
then be interpreted by your supplier.
1 Access the VoWiFi internal web page, refer to
Web Administration page
2 Click the Troubleshoot button.

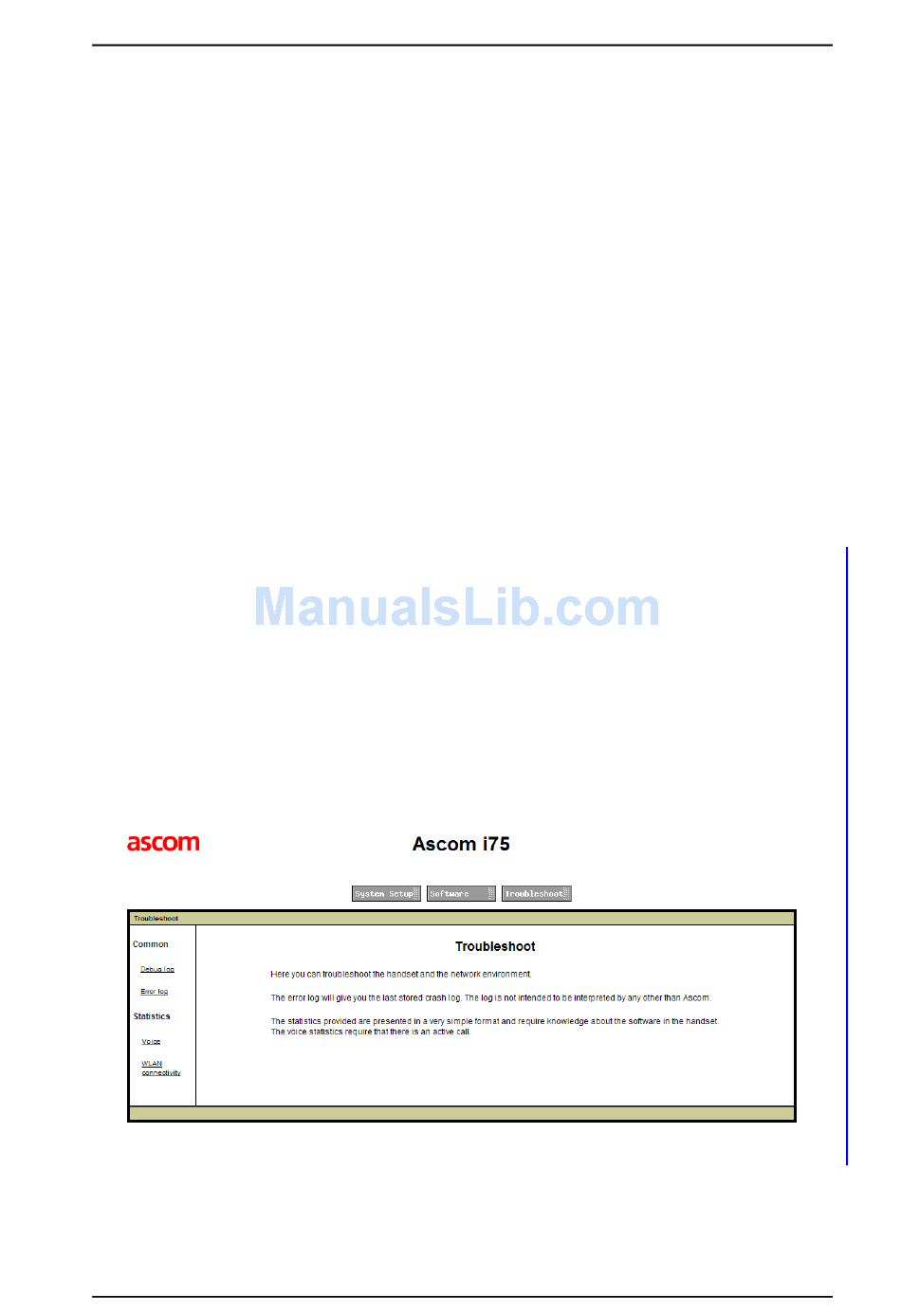

Figure 3. Troubleshoot page
2008-11-20/ Ver. B
Code
*#46#
*#46#
*#46#
*#46# or *#76#
*#76#
*#76#
*#76#
*#77#
for Network statistics.
A Hot key or Soft key can be programmed as a short-cut
for Network statistics.
10 VoWiFi Handset Internal Web Administration
10.1 Access the Handset´s Internal
on page 33.
TD 92431GB
37
