45

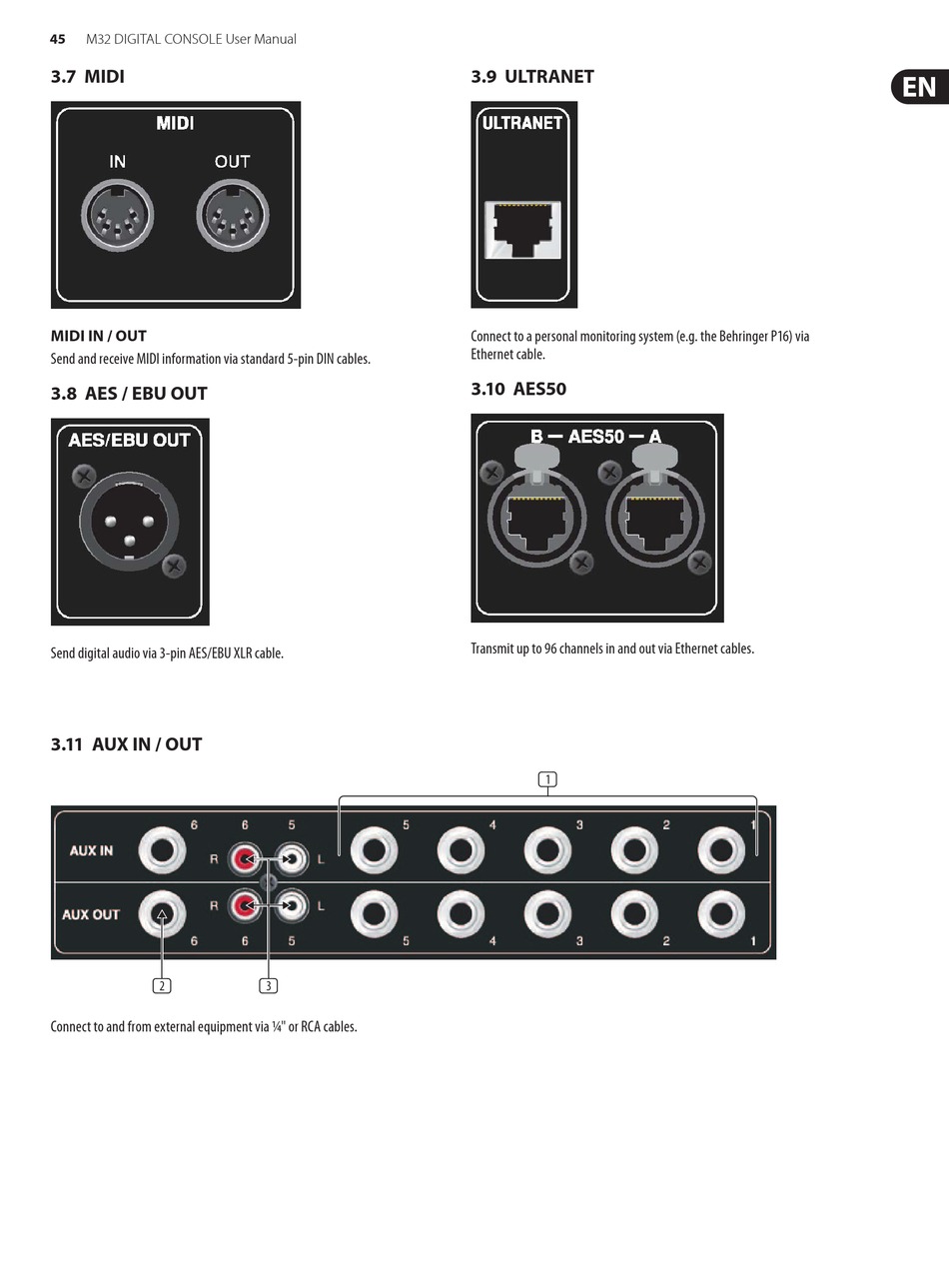

M32 DIGITAL CONSOLE User Manual
3.7 MIDI
MIDI IN / OUT
Send and receive MIDI information via standard 5-pin DIN cables.
3.8 AES / EBU OUT
Send digital audio via 3-pin AES/EBU XLR cable.
3.11 AUX IN / OUT
(2)
Connect to and from external equipment via ¼" or RCA cables.
(3)
3.9 ULTRANET
Connect to a personal monitoring system (e.g. the Behringer P16) via
Ethernet cable.
3.10 AES50
Transmit up to 96 channels in and out via Ethernet cables.
(1)
