M32 DIGITAL CONSOLE User Manual
main

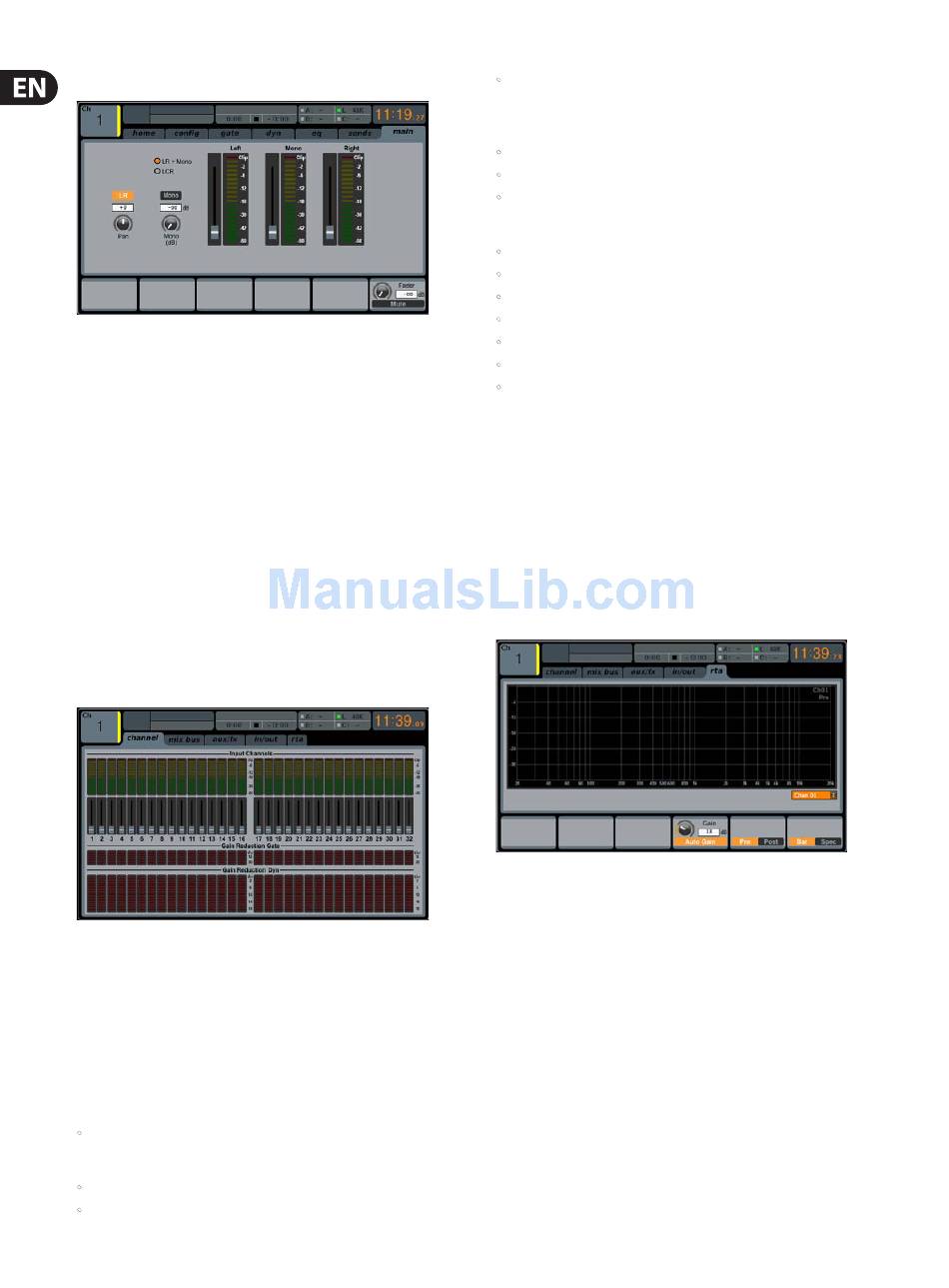

The main tab displays and controls all aspects of the main bus assignments.
The main tab contains the following parameters that can be adjusted using
the six push encoders:
1. Adjust the first push encoder to pan the selected channel within the
main stereo output.
2. Tap the first encoder to assign the selected channel to the main
stereo output.
3. Turn the second encoder to adjust the level of the currently selected
channel within the mono (centre) bus.
4. Tap the second encoder to assign the selected channel to the mono
output signal path. Use this function when crafting an LCR mix,
as opposed to a mono or stereo mix.
5. Tap the fifth encoder to solo/unsolo the currently selected channel.
6. Adjust the sixth encoder to set the fader level for the currently
selected channel.
7. Tap the sixth encoder to mute/unmute the currently selected channel.
2.2 Meters
The METERS screen displays different groups of level meters for various signal
paths on the console, and is useful for quickly ascertaining if any channels need
level adjustment. Since there are no parameters to adjust for the metering
displays, none of the metering screens (with the exception of the rta tab; see
below) contain any 'bottom-of-screen' controls that would normally by adjusted
by the six push encoders.
The METERS screen contains the following separate screen tabs, each containing
level meters for the following signal paths:
channel
•
Level meters and fader levels for the 32 input channels.
mix bus
•
Level meters, fader levels and gain reduction meters for the 16 bus masters
•
Level meters, fader levels and gain reduction meters for the six
matrix outputs
•
Level meters, fader levels and gain reduction meters for the stereo main bus
and the mono bus.
aux/fx
•
Level meters for the six auxiliary sends
•
Level meters and fader levels for the eight auxiliary returns
•
Level meters and fader levels for the four stereo effects returns.
in/out
•
The 32 input channels
•
The eight auxiliary returns
•
The six auxiliary sends
•
The two rear panel digital outputs
•
Monitor outputs
•
The 16 rear panel analogue outputs
•
The P16 Ultranet outputs.
rta
The rta tab shows details of the M32's Real Time Analyser - a real-time spectrum
analyser that displays details of the audio signal on the selected signal path. The
M32 features both bar graph and spectrograph with a 10-second window, that
are displayed on the Main Display, and can be used in a variety of applications.
The frequency resolution of both analysers is 100 bands, with constant relative
bandwidth from 20 Hz to 20 kHz. Hence they are three times more detailed than
typical third-of-an-octave RTAs. Both graphs can be visualised in a separate
Meter screen, on top of each channel parametric EQ and on the FX rack graphic
EQ screens.
RTA Source
Depending on the application the analyser input signal can be taken from the
selected channel itself, any other pre-defined channel or dynamically depending
on monitor source signals (i.e. Main/Solo). When EQ-ing a main PA system for
example, the Graphic EQ may be inserted in Main LR, while the analyser signal
may come from a dedicated measuring mic input channel. Select the source
signal using the sixth push encoder.
Solo Priority
When switched on, the selected RTA source signals will be replaced with the
monitor solo bus whenever a channel solo is active.
TIP: This option might be useful, if you wish to analyse a group of channels
concurrently, or if you have a fixed signal on the RTA that needs to be replaced only
temporarily with some other channel's signal.
Pre / Post
The analysers can tap their input signals from pre- or post-EQ, allowing you to
see the impact of your EQ in that channel. Tap the fifth push encoder to toggles
between the two.
