Binks 230 Operation Manual

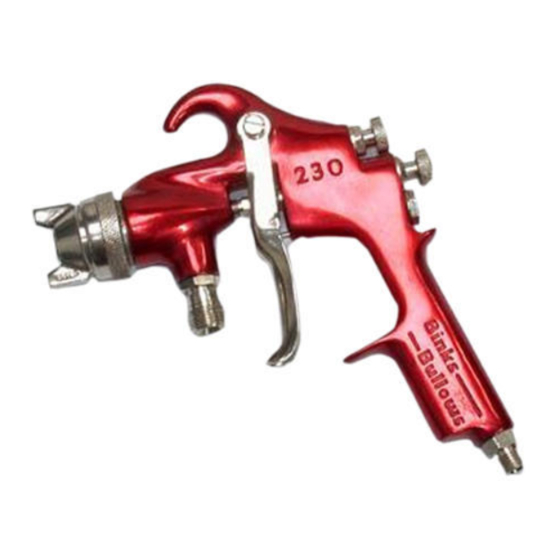

Pressure/siphon feed hand gun
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

MODEL 230 PRESSURE/SIPHON FEED
Read and follow all instructions and SAFETY PRECAUTIONS
DESCRIPTION
This is a production hand spray gun suitable for use with most solvent based coating materials. The performance of this gun is
achieved by a range of air nozzles combined with large, smooth flowing air passages and an oversize air valve which gives a lower
pressure drop. The gun is designed to be used with a siphon cup or material feed hose.
IMPORTANT: These guns are not designed for use with highly corrosive or highly abrasive coating material and if used with such
materials it must be expected that the need for thorough cleaning and/or the necessity for replacement parts will be increased. If there
is any doubt regarding the suitability of a specific material, advise what material is to be used and/or submit a sample for test.
Chart 1 Ordering Information :
SPRAYGUN
o
PART N
THREAD
100104
BSP
100114
BSP
100124
BSP
100125
BSP
100126
BSP
100135
BSP
100176
BSP
100188
BSP
GROUP 1
Normal range of finishing materials from thin spirits to heavy enamels.
GROUP 4
Vitreous enamel. N.B Air nozzle can only be used with mat. Nozzles of the same group. Suffix "V" denotes tungsten carbide
tipped.
Figure in ( ) brackets is air consumption in c.f.m 63 psi
Figure in [ ] brackets is air consumption in m
Operation Manual:
HAND GUN
Important:
before using this equipment
MATERIAL NOZZLE
PART NO CODE
BORE
200316
71
0.071",1.8mm 180123 ST ST
200338
446
0.046",1.1mm 180100 NYLON
200315
60
0.060",1.5mm 180124 ST ST
200338
446
0.046",1.1mm 180117 ST ST
200315
60
0.060",1.5mm 180124 ST ST
200315
60
0.060",1.5mm 180124 ST ST
200328
2086V 0.086",2.2mm 180111
200316
71
0.071",1.8mm 180123 ST ST
3
/ hr at 63 psi
©BINKS 1999
NEEDLE
L
PART NO
MAT
PART NO CODE
200885
200850
200885
200850
200886
200850
ST ST/
200865
TUNG CARB
200885
SB-E-A1-2-8
AIR NOZZLE
GROUP
N
AIR CONS
66SD1
(16.2) [27.5]
63PB
(18.9) [32.1]
66SD1
(16.2) [27.5]
63PB
(18.9) [32.1]
66S2
(6.3)
[10.7]
63PB
(18.9) [32.1]
67SA
(18.2) [30.1]
66SD1
(16.2) [27.5]
1
1
1
1
1
1
4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 230 and is the answer not in the manual?

Questions and answers

Related Manuals for Binks 230

Summary of Contents for Binks 230

  • Page 1 SB-E-A1-2-8 Operation Manual: MODEL 230 PRESSURE/SIPHON FEED HAND GUN Important: Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment DESCRIPTION This is a production hand spray gun suitable for use with most solvent based coating materials. The performance of this gun is achieved by a range of air nozzles combined with large, smooth flowing air passages and an oversize air valve which gives a lower pressure drop.
  • Page 2 AIR VALVE PACKING SCREW Recommended spares kit with quantities based on 12 months supply with medium wear materials 25 00 03. CHART 2 Needle Assy. Needle Stem 180123 180047 180111 180052 180124 180036 180100 180093 180117 180041 ©BINKS 1999 – SB-E- A1-2...

  • Page 3: Specifications

    The union nut of the cup should be attached to the material connection of the gun and firmly tightened. It is important that there is no leakage at this point. The syphon pipe should be positioned at the front of the gun. i.e under the nozzles, and the vent hole in the cup lid positioned under the trigger. ©BINKS 1999 –SB-E- A1-2...

  • Page 4: Safety Warnings

    Details of actual noise levels produced by the various air cap/nozzle set-ups are available on request. OPERATING Spray equipment using high operating pressures may be subject to recoil forces, under certain circumstances such forces could result in repetitive strain injury to the operator ©BINKS 1999 – SB-E-A1-2...

  • Page 5: Maintenance & Fault Finding

    Material Valve Control Screw (19) , remove Material Spring (2) and Material Needle Valve (5). Unscrew Material Packing Screw (13) and take out old packing. Repack with Packing Washer (23) then replace material packing screw then adjust to seal correctly. BINKS 1999 –SB-E- A1-2...
  • Page 6 See Parts List for included items shown by * AIR FED VISORS 10 70 30 Visor and Carbon Filter/ Regulator complete with Breather tube. 10 70 29 As 107030 plus Coalescing Filter, Hoses and Spare Elements. BINKS 1999 –SB-E- A1-2...
  • Page 7 NOTES...
  • Page 8 NOTES Ringwood Road, Bournemouth, BH11 9LH, England. Tel. No. (01202) 571111 Telefax No. (01202) 581940,...
