Solid State Logic XL-Desk Owner's Manual page 10

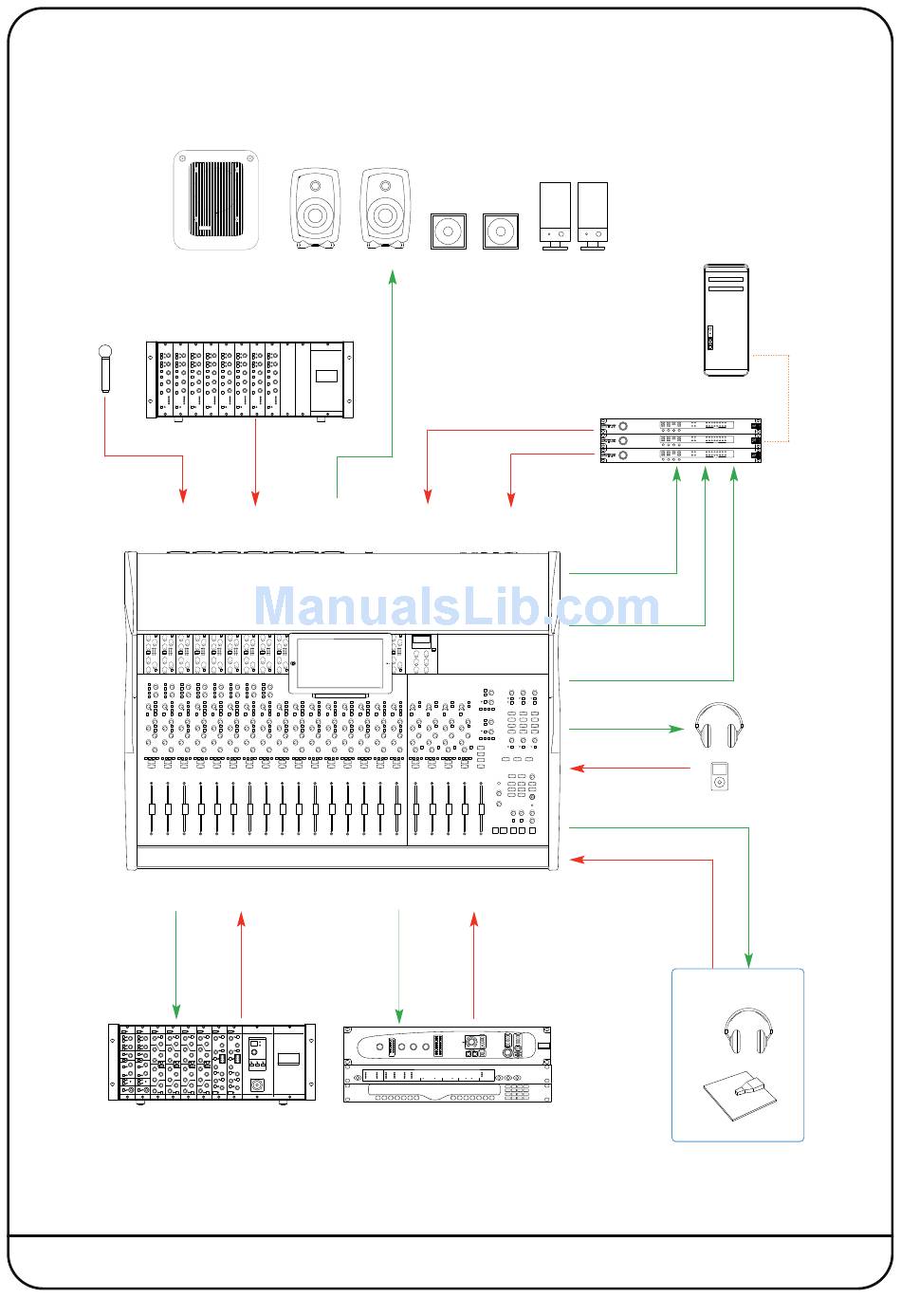

Studio Integration Diagram
Outboard Mic Preamps
8 x
VHD Mic In
1–8
Insert
Sends
Outboard Rack Gear
Page 6
3 sets of Speakers plus Subwoofer
Line In Monitor DAW Line
9–16 Outputs
Insert Cue/Aux
Returns Sends
Stereo Channel
Inputs Inputs
Stereo
Return Input
Outboard FX
(Reverb/Delays)
DAW
AlphaLink MX
MX
MADI RATE CLOCK LEVEL OUTPUTS INPUTS 16 - 4
POWER
MX
MADI RATE CLOCK LEVEL INPUTS OUTPUTS
POWER 4 - 16
MX
POWER MADI RATE CLOCK LEVEL INPUTS OUTPUTS 4 - 16
Channel
Direct Outs
Mix Bus
Outputs
Stereo return
Outputs
Headphones
MP3 Player
Foldback
Outputs A & B
Listen Mic
Live Room
2 x
XL-Desk – Owner's Manual
MADI
