UTOM TIC IR SPR Y GUN WITH ST INLESS STEEL FLUID INLET
MODEL 95 ND 95 V SPR Y GUN

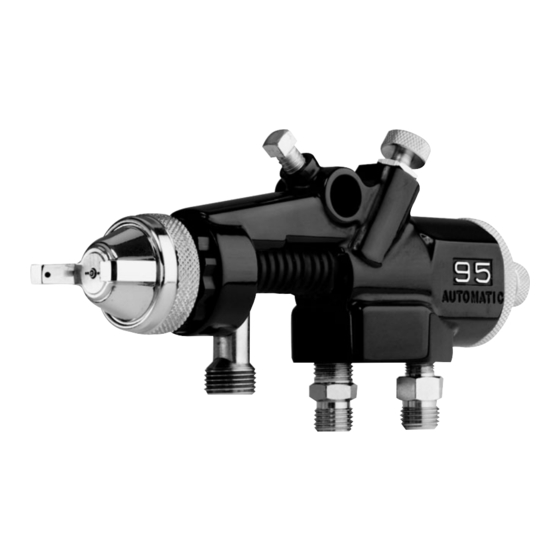

The Binks Model 95A Automatic Spray Gun is a conven-
tional style air spray gun. It incorporates all stainless steel
fluid inlet, fluid nozzle, and fluid needle for spraying a
wide variety of conventional and waterborne coatings.
Model 95AV incorporates tungsten carbite fluid nozzles
used in ceramic and abrasive coating applications. It is also
pneumatically activated for application with reciprocating,
rotary, spindle machines, and in stationary gun set-ups.
Binks Model 95
Conventional
and Binks Model 95 V
(For Ceramic Coatings)
Conventional
95
95 V Gun 6487-XXXX-X
utomatic
ir Spray Gun
ir Spray Gun
Gun 6469-XXXX-X
ST ND RD SET-UPS V IL BLE (SEE PG. 9).
OPTION L SET-UPS PLE SE ORDER SEP R TELY
(SEE PGS. 8 & 9).
Exceptionally rugged in construction, the Binks Model 95A
and 95AV guns are built to stand up under hard, continuous
use. However, like any other fine precision instrument,
their most efficient operation depends on a knowledge of
their construction, operation, and maintenance.
Properly handled and cared for, these guns will produce
beautiful, uniform finishing results long after other spray
guns have worn out.
Part
Replaces
Sheet
Part Sheet
77-2641R-13
77-2641R-12
