12 SERVICE WORK ON THE CHASSIS
12.10

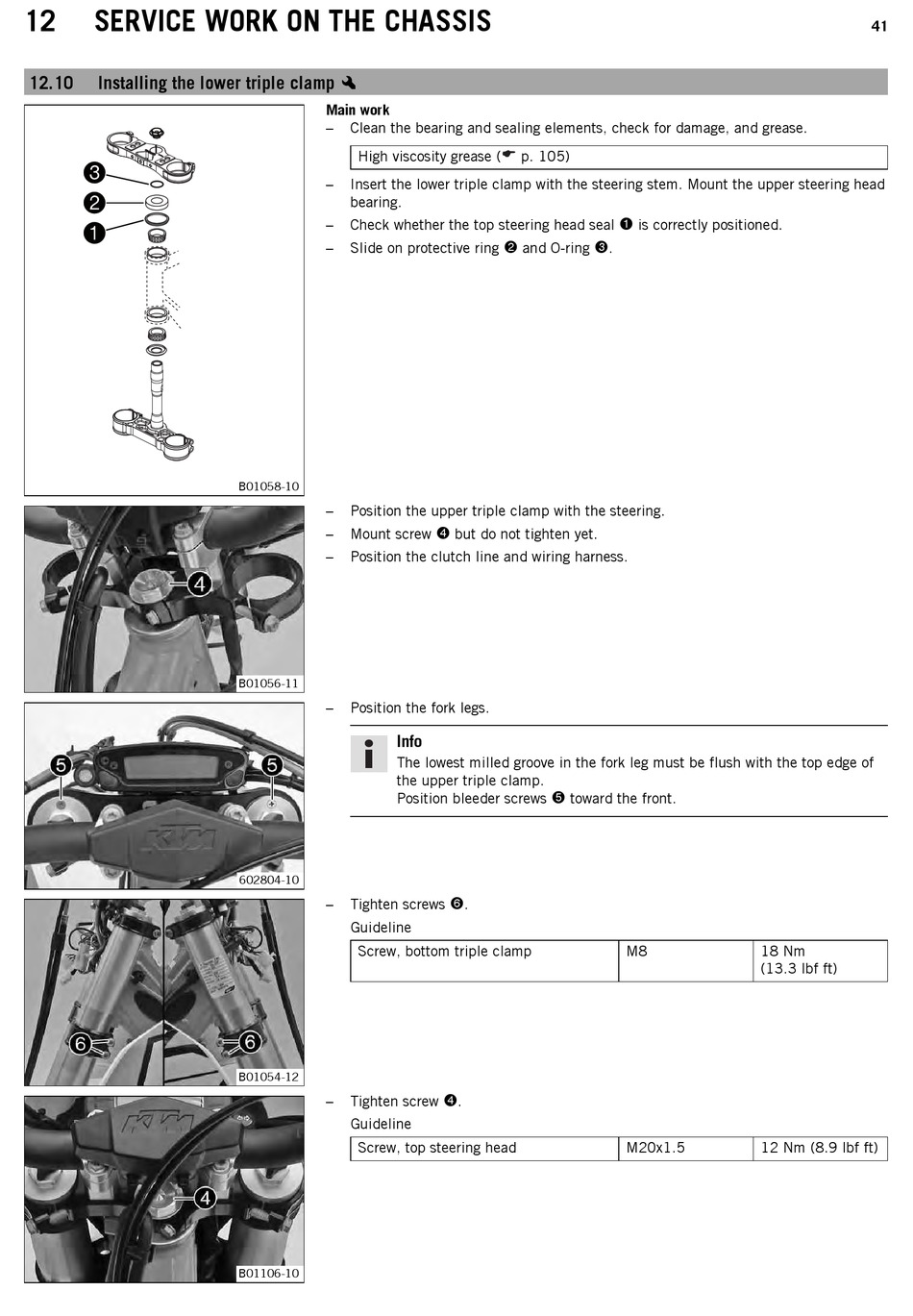

Installing the lower triple clamp

0 0
x
Main work
–
Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease (
–
Insert the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
–
Check whether the top steering head seal
–
Slide on protective ring
B01058-10
–
Position the upper triple clamp with the steering.
–
Mount screw
–
Position the clutch line and wiring harness.
B01056-11
–
Position the fork legs.
Info
The lowest milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
Position bleeder screws
602804-10
–
Tighten screws
Guideline
Screw, bottom triple clamp
B01054-12
–
Tighten screw
Guideline
Screw, top steering head
B01106-10
p. 105)
and O-ring .
2 3
but do not tighten yet.
4
toward the front.
5
.
6
.
4
is correctly positioned.
1
M8 18 Nm
(13.3 lbf ft)
M20x1.5 12 Nm (8.9 lbf ft)
41
