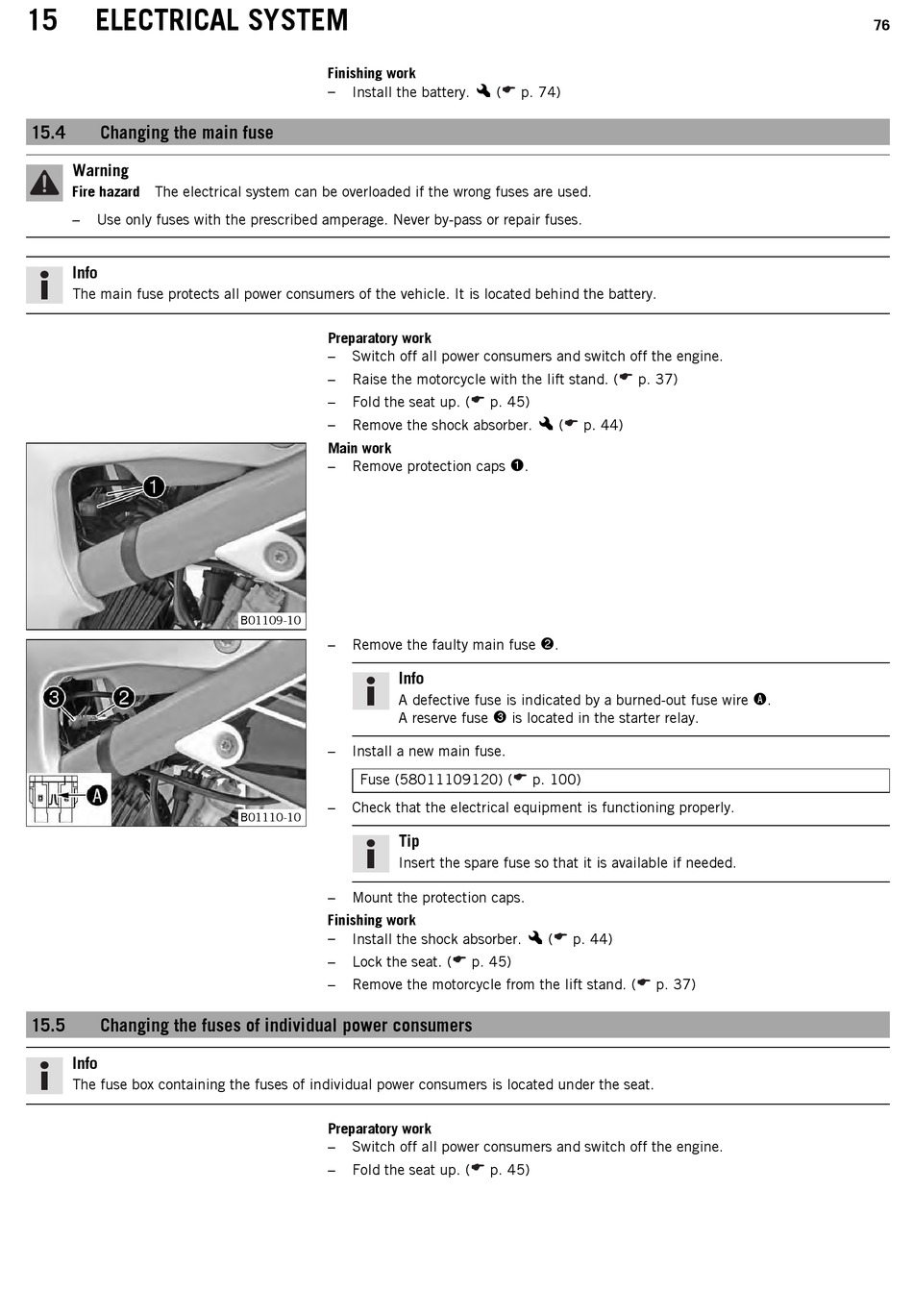

15 ELECTRICAL SYSTEM
15.4

Changing the main fuse

Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
–
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located behind the battery.
15.5

Changing the fuses of individual power consumers

Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Finishing work
–
Install the battery.
Preparatory work
–
Switch off all power consumers and switch off the engine.
–
Raise the motorcycle with the lift stand. (
–
Fold the seat up. (
–
Remove the shock absorber.
Main work
–
Remove protection caps
B01109-10
–
Remove the faulty main fuse
Info
A defective fuse is indicated by a burned-out fuse wire
A reserve fuse
–
Install a new main fuse.
Fuse (58011109120) (
–
Check that the electrical equipment is functioning properly.
B01110-10
Tip
Insert the spare fuse so that it is available if needed.
–
Mount the protection caps.
Finishing work
–
Install the shock absorber.
–
Lock the seat. (
–
Remove the motorcycle from the lift stand. (
Preparatory work
–
Switch off all power consumers and switch off the engine.
–
Fold the seat up. (
( p. 74)
