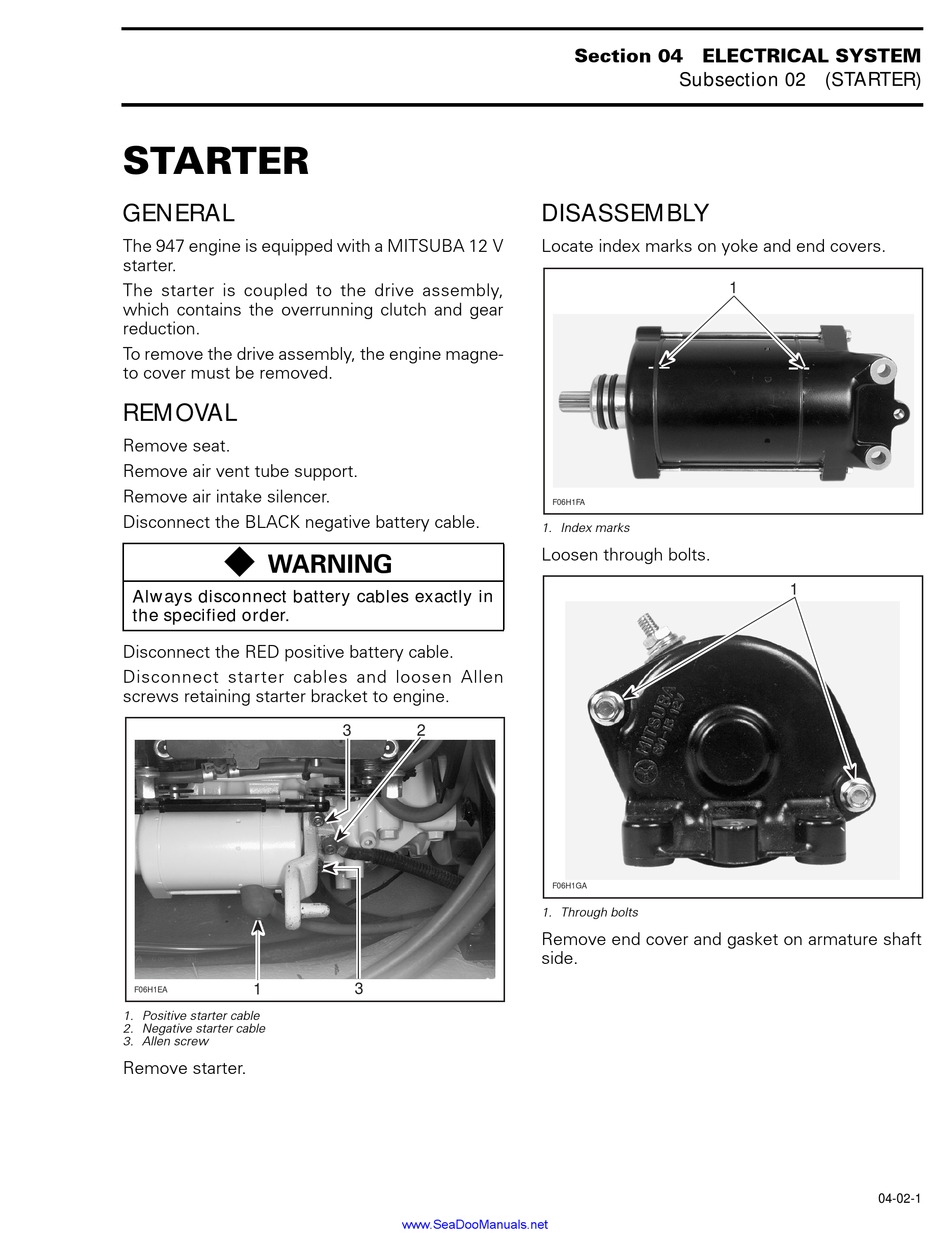

STARTER

GENERAL
The 947 engine is equipped with a MITSUBA 12 V
starter.
The starter is coupled to the drive assembly,
which contains the overrunning clutch and gear
reduction.
To remove the drive assembly, the engine magne-
to cover must be removed.
REMOVAL
Remove seat.
Remove air vent tube support.
Remove air intake silencer.
Disconnect the BLACK negative battery cable.
;
WARNING
Always disconnect battery cables exactly in
the specified order.
Disconnect the RED positive battery cable.
Disconnect starter cables and loosen Allen
screws retaining starter bracket to engine.
1
F06H1EA
1. Positive starter cable
2. Negative starter cable
3. Allen screw
Remove starter.
3 2
3
www.SeaDooManuals.net
Section 04 ELECTRICAL SYSTEM
Subsection 02 (STARTER)
DISASSEMBLY
Locate index marks on yoke and end covers.
F06H1FA
1. Index marks
Loosen through bolts.
F06H1GA
1. Through bolts
Remove end cover and gasket on armature shaft
side.
0
1
1
04-02-1
