DRIVE SYSTEM AND JET PUMP

DRIVE SYSTEM
Seal Carrier and Bearing
The drive system is equipped with a seal carrier
and a needle bearing.
Seal carrier should be lubricated with synthetic
grease every 10 hours.
1
F06I03A

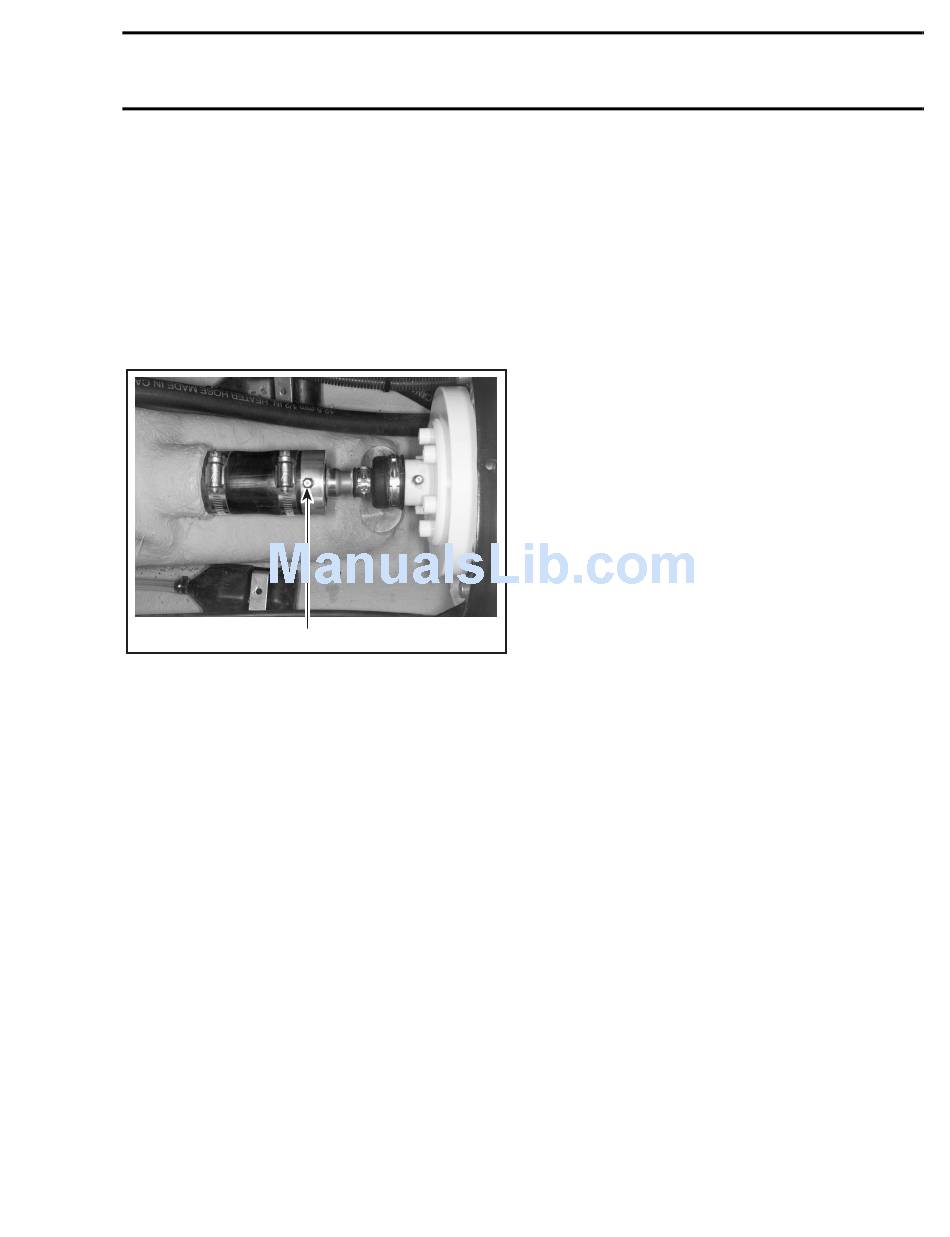

1. Grease seal carrier
For disassembly and assembly procedures of the
seal carrier, refer to the 1997 Sea-Doo Shop Manual ,
section 08-03.
Section 05 PROPULSION SYSTEM
Subsection 01 (DRIVE SYSTEM AND JET PUMP)
JET PUMP
For performance improvement, the GSX Limited
features a new jet pump with an impeller diame-
ter of 155.6 mm (6-1/8 in).
The jet pump housing and venturi are made of alu-
minum.
Servicing the jet pump is identical as with the oth-
er models. For disassembly, inspection and as-
sembly procedures, refer to the 1997 Sea-Doo
Shop Manual , section 08-02.
