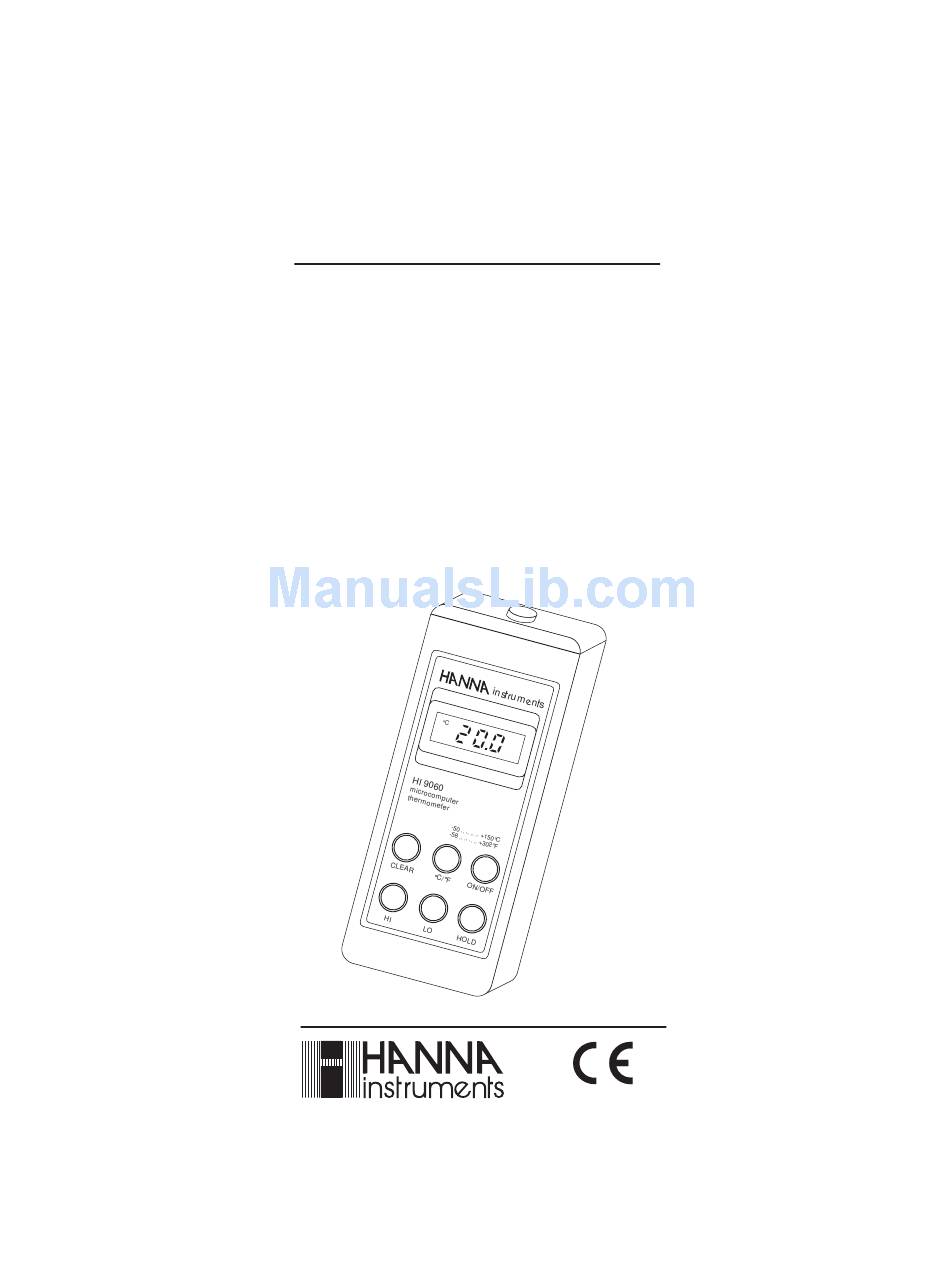

- Page 1 Instruction Manual HI9060 HI9061 HI 91541 Portable Waterproof Microprocessor Thermistor Thermometers These Instruments are in h t t p : / / w w w . h a n n a c a n . c o m Compliance with the CE Directives...
-
Page 2: Table Of Contents
Dear Customer, Thank you for choosing a Hanna Instruments Product. Please read this instruction manual carefully before using the instrument. This manual will provide you with all the nec- essary information for the correct use of the instrument, as well as a precise idea of its versatility in a wide range of applications. -
Page 3: Preliminary Examination
To prolong battery life, it shuts itself off au- tomatically after half hour of non-use. HI 91541 and HI 9061 have been specifically designed by Hanna Instruments for use in the food industry and are available in two versions: HI 9061C to measure in degrees Celsius;... - Page 4 complete with 4 batteries (1.5V, AA size). Upon request these meters can be supplied with a Factory Calibration Certificate against NIST standard. Several types of HI 765 tem- perature probes are available to meet all your requirements (see page 15). A series of HI765 calibration test plugs are also available to check the meter's accuracy (see page 13).
-
Page 5: Functional Description Hi 9060
FUNCTIONAL DESCRIPTION HI 9060 1. Battery Cover 2. Temperature Probe Connector 3. LCD Display ins rum n s 4. Temperature Selection (°C °C or °F) 5. ON/OFF Key 6. Minimum HI 9060 microcomputer Temperature thermometer -50 ..+150°C 7. -
Page 6: Functional Description Hi 9061
FUNCTIONAL DESCRIPTION HI 9061 ins rum n s 1.5V °C 1.5V 1.5V 1.5V Foodcare MICROCOMPUTER THERMOMETER RANGE -50°C to 150°C ON/OFF ACCURACY 1. Battery Cover ±0.4°C 2. Temperature Probe Connector 3. LCD Display HI 9061 4. ON/OFF Key Specifications HI 9061C HI 9061F Range -50.0 to 150.0°C... -
Page 7: Functional Description Hi 91541
FUNCTIONAL DESCRIPTION HI 91541 ins rum n s 1.5V °C 1.5V 1.5V 1.5V Foodcare RANGE -50.0°C to 300°C ON/OFF ACCURACY 1. Battery Cover ±0.4°C MICROCOMPUTER 2. Temperature THERMOMETER Probe Connector 3. LCD Display HI 91541 4. ON/OFF Key Specifications HI 91541C HI 91541F Range -50.0 to 300.0°C... -
Page 8: Operational Guide
OPERATIONAL GUIDE INITIAL PREPARATION Each meter is supplied com- plete with batteries. Remove the back cover, un- wrap the batteries and install them while paying attention to their polarity. To switch on, press the ON/OFF key on the front of the unit. ON/OFF ON/OFF If the meter does not come on, make sure... - Page 9 HI / LO MEMORIES (for HI 9060 only) The maximum and minimum temperatures are monitored throughout a continuous measur- ing process. The values may be recalled or cleared at any time during the measurement. Enquiries of the highest or lowest measured temperature may be made by pressing the respective HI or LO keys.
- Page 10 HOLD MODE (for HI 9060 only) The reading hold function is activated by the HOLD key. The measured temperature is frozen on the display when this function key is pressed. A blinking "M" on the display indicates the operating mode. °C HOLD Press the same key again...
- Page 11 HI 9060 and HI 9061 stop to operate when the low battery signal is detected. The user is warned by the code "Eb". HI 91541 displays "BAT" when the batteries are run down. See also the Battery Replacement section on page 14.
-
Page 12: Display Codes Guide
DISPLAY CODES GUIDE Your thermometer is factory programmed to diagnose a fault or warn of low battery levels. This is indicated by the error codes on the LCD. Moreover, self-explanatory sym- bols are used to remind the user of the operating mode or conditions. -
Page 13: Calibration
CALIBRATION All Hanna Instruments thermometers have been accurately pre-calibrated at the factory. It is generally recommended to have all ther- mometers recalibrated at least once a year. For an accurate annual recalibration, contact your nearest Hanna Service Center. Hanna Test Plugs provide a quick and easy... -
Page 14: Battery Replacement
When the batteries be- come weak, the meter displays "Eb" (for HI9060 and HI9061) or "BAT" (for HI91541) to warn the user. Battery replacement must only take place in a non hazardous area using the battery types specified in this instruction manual (see page 17). -
Page 15: Temperature Probes & Accessories
TEMPERATURE PROBES & ACCESSORIES Hanna Instruments offers a wide range of probes to meet all your requirements from liquids to air and penetration to surface. These probes use highly sensitive thermistor sensors which provide greater accuracy, faster response and a temperature range that is superior to conventional thermistor probes. - Page 16 cable and green handle HI765PG/10Penetration probe with 10 m (33') cable and green handle HI765PR Penetration probe with 1 m (3.3') cable and red handle HI 765PR/10 Penetration probe with 10 m (33') cable and red handle HI 765PW Penetration probe with 1 m 3.3') cable and white handle HI 765PW/10Penetration probe with 10 m (33') cable and white handle...
- Page 17 HI 764W Wire probe, without handle (hard- to-reach places) with 1 m (3.3') cable HI 764W/10 Wire probe, without handle (hard- to-reach places) with 10 m (33')cable Hanna Instruments Temperature Probes 205 mm 8.1" 3 mm 100 mm 0.12" 3.9"...
-
Page 18: Warranty
WARRANTY All Hanna Instruments meters are warranted for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instruc- tions. The probes and calibration keys are war- ranted for a period of six months. -
Page 19: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY Hanna Instruments Srl V.le delle industrie 12 35010 Ronchi di Villafranca (PD) ITALY herewith certify that the thermometers HI 9060 HI 9061 HI 91541 have been tested and found to be in compliance with the following regulations:... - Page 20 HANNA LITERATURE HANNA LITERATURE HANNA LITERATURE HANNA LITERATURE HANNA LITERATURE Hanna publishes a wide range of catalogs and hand- books for an equally wide range of applications. The reference literature currently covers areas such as: • Water Treatment • Process •...
