Hanna Instruments HI 9040 Instruction Manual

Instruction Manual
HI 9040
Portable Microprocessor
Thermistor Thermometer
w w w . h a n n a i n s t . c o m
WARRANTY
All Hanna Instruments meters are warranted for two years against de-
fects in workmanship and materials when used for their intended purpose
and maintained according to instructions. Sensors and probes are war-
ranted for a period of six months.
This warranty is limited to repair or replacement free of charge.
Damages due to accidents, misuse, tampering or lack of prescribed mainte-
nance are not covered.
If service is required, contact the dealer from whom you purchased the instru-
ment. If under warranty, report the model number, date of purchase, serial
number and the nature of the failure.
First obtain a Returned Goods Authorization number from the Customer Ser-
vice department, then return the instrument with the Authorization # included
along with shipment costs prepaid. If the repair is not covered by the war-
ranty, you will be notified of the charges.
When shipping any instrument, make sure it is properly packaged for com-
plete protection.
Hanna Instruments reserves the right to modify the design, construction and
appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product.
This manual will provide you with the necessary information
for correct operation. Please read it carefully before using the
meter.
If you need additional technical information, do not hesitate
to e-mail us at tech@hannainst.com.
This instrument is in compliance with the directives.
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and exam-
ine it carefully to make sure that no damage has occurred
during shipping. If there is any noticeable damage, notify
your dealer or the nearest Hanna Office.
Note: Save all packing materials until you are sure that the
instrument functions correctly. Any defective item must
be returned in the original packaging together with
the supplied accessories.
GENERAL DESCRIPTION

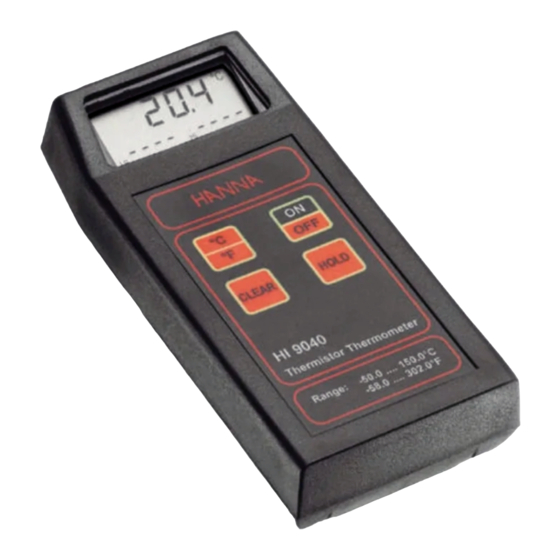

HI 9040 is a hand-held microprocessor-based thermometer
which allows fast and accurate temperature measurements,
using a calibrated thermistor probe. The temperature probe is
linearized by the microprocessor.
The meter is also provided with low battery detection and
BEPS (Battery Error Preventing System), which turns the unit
off when battery is discharged avoiding erroneous readings
caused by low battery level.
HI 9040 features include a dual-level LCD for simultaneously
displaying of maximum and minimum measured tempera-
tures, °C/°F selection button and HOLD function.
Each meter is supplied complete with a HI 765BL thermistor
probe, a 9V battery and instruction manual.
FUNCTIONAL DESCRIPTION
1. Liquid Crystal Display
2. Measuring unit selection key
3. HI/LO values reset key
4. HOLD key
5. ON/OFF key
1) Current temperature value
2) HOLD indicator
3) Low battery indicator
4) Minimum temperature value
5) Maximum temperature value
6) Measuring unit, °C or °F
SPECIFICATIONS
Range -50.0 to 150.0°C / -58.0 to 302.0°F
Resolution 0.1°C / 0.1°F
Accuracy ±0.4°C / ±0.8°F
for 1 year, excluding probe error
Typical EMC ±0.5°C / ±1°F,
Deviation with HI 765BL probe
Battery Type 1 x 9V (IEC 6LR61) battery
Life approx. 700 hours of continuous use
Probe (included) HI 765BL with 1 m (3.3') cable
Environment -10 to 50ºC (14 to 122ºF);
RH max 95% non-condensing
Dimensions 180 x 83 x 40 mm (7.1x3.3x1.6")
Weight 226 g (8 oz.)
CE DECLARATION OF CONFORMITY
IST9040R1 06/05
