Hanna Instruments HI 9063 Instruction Manual

Instruction Manual
HI 9063
Portable Waterproof
Microprocessor
K-Type Thermocouple
Thermometer
This Instrument is in
Compliance with CE
w w w . h a n n a i n s t . c o m
Directives
WARRANTY
All Hanna Instruments meters are warranted for two years against
defects in workmanship and materials when used for their intended pur-
pose and maintained according to instructions. Sensors and probes are
warranted for a period of six months.
This warranty is limited to repair or replacement free of charge.
Damages due to accidents, misuse, tampering or lack of prescribed main-
tenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of purchase,
serial number and the nature of the failure.
First obtain a Returned Goods Authorization number from the Customer
Service department, then return the instrument with the Authorization #
included along with shipment costs prepaid. If the repair is not covered by
the warranty, you will be notified of the charges.
When shipping any instrument, make sure it is properly packaged for
complete protection.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Hanna Instruments
Inc., Woonsocket, Rhode Island, 02895 , USA.
Hanna Instruments reserves the right to modify the design, construction and
appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for correct opera-
tion. Please read it carefully before using the meter. If you
need additional technical information, do not hesitate to e-
mail us at tech@hannainst.com.
These instruments are in compliance with the
tives.
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and
examine it carefully to make sure that no damage has
occurred during shipping. If there is any noticeable damage,
notify your Dealer or the nearest Hanna Office.
Note: Save all packing materials until you are sure that the
instrument functions correctly. Any defective item must
be returned in the original packaging together with
the supplied accessories.
GENERAL DESCRIPTION

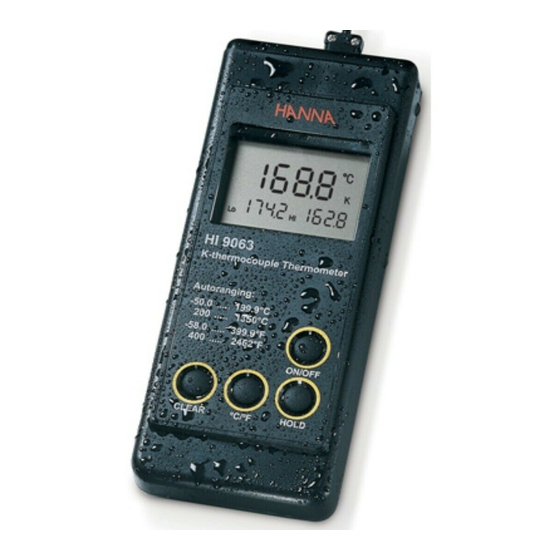

HI 9063 is a waterproof, microprocessor-based, K-type ther-
mocouple thermometer, which provides very accurate
measurements in a wide range of temperatures.
The meter is also provided with low battery detection and
BEPS (Battery Error Preventing System), which turns the
unit off when the batteries are discharged avoiding errone-
ous readings caused by low battery level.
HI 9063 features include autoranging capability, dual-level
LCD for simultaneously displaying of maximum and minimum
measured temperatures, °C/°F selection button and hold
function.
Each meter is supplied complete with 4 x 1.5V AA batteries
and instruction manual.
FUNCTIONAL DESCRIPTION
direc-
1. Temperature probe connector
2. Liquid Crystal Display
3. ON/OFF Key
4. Measuring unit selection key
5. HOLD measurement key
6. HI/LO values reset key
1. Current temperature value
2. HOLD indicator
3. Low Battery indicator
4. Minimum temperature value
5. Maximum temperature value
6. K-type probe indicator
7. Measuring scale, °C or °F
SPECIFICATIONS
Range (*) -50.0 to 199.9°C / 200 to 1350°C
-58.0 to 399.9°F / 400 to 2462°F
Resolution 0.1°C (up to 199.9°C) / 1°C (outside)
0.1°F (up to 399.9°F) / 1°F (outside)
Accuracy ±0.2% F.S. excluding probe error
(@20°C/68°F)
Typical EMC ±3°C (with HI 766 probes)
Deviation ±6°F (with HI 766 probes)
Display Dual-line LCD
Battery Type 4 x 1.5V AA (IEC LR6)
Life approx. 2000 hours of continuous use
Probe K-type thermocouple (see "Accessories")
Environment -10 to 50ºC (14 to 122ºF); RH 100%
Dimensions 196 x 80 x 60 mm (7.7x3.1x2.4")
Weight 425 g (15 oz.) meter only
(*)
Range may be limited by probe.
FACTORY RECALIBRATION
All Hanna Instruments thermometers have been accurately
pre-calibrated at the factory. It is generally recommended to
have all thermometers recalibrated at least once a year.
For an accurate annual recalibration, contact your nearest
Hanna Service Center.
