Instruction Manual
HI 9041 - HI 9061
HI 93501 - HI 93502
HI 93503
HI 935007
Portable Microprocessor
Thermometers
www.calcert.com
15
10
20
5
25
0
30
These Instruments are in
Compliance with the CE Directives
sales@calcert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foodcare Lumberg Thermistor HI 9041 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanna Instruments Foodcare Lumberg Thermistor HI 9041

  • Page 1 Instruction Manual HI 9041 - HI 9061 HI 93501 - HI 93502 HI 93503 HI 935007 Portable Microprocessor Thermometers These Instruments are in Compliance with the CE Directives 1.888.610.7664 www.calcert.com sales@calcert.com...
  • Page 2: Table Of Contents

    These instruments are in compliance with the directives. WARRANTY All Hanna Instruments meters are warranted for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Sensors and probes are warranted for a period of six months.
  • Page 3: Preliminary Examination

    PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it to make sure that no damage has occurred during shipping. If there is any damage, notify your dealer or the nearest Hanna Customer Service Center. Each meter is supplied complete with: •...
  • Page 4: Hi 9041, Specifications

    SPECIFICATIONS OF HI 9041C & HI 9041F Main features: • HI 765 probes series • Available HI 765 accuracy test plugs • Remaining battery life indication / low battery detection • Available in °C or °F models HI 9041 Range -50.0 to 150.0°C (HI 9041C) -58.0 to 302.0°F (HI 9041F) Resolution...
  • Page 5: Hi 9061, Specifications

    SPECIFICATIONS OF HI 9061C & HI 9061F Main features: • HI 765 probes series • Available HI 765 accuracy test plugs • Remaining battery life indication / low battery detection • Available in °C or °F models • Waterproof casing HI 9061 Range -50.0 to 150.0°C (HI 9061C)
  • Page 6: Hi 93501, Specifications

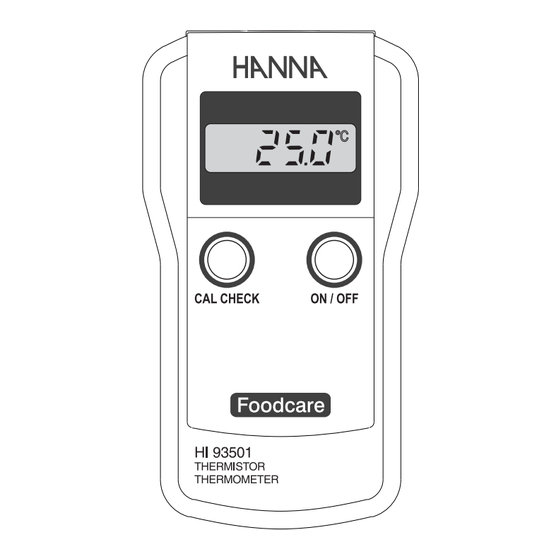

    SPECIFICATIONS OF HI 93501 Main features: • HI 762 probes series • Available HI 762 accuracy test plugs • Range -50 to 150°C • Calibration Check feature • Remaining battery life indication / low battery detection • Auto-off capability • Waterproof casing SPECIFICATIONS Range -50.0 to 150.0°C...
  • Page 7: Hi 93502, Specifications

    SPECIFICATIONS OF HI 93502 Main features: • LUMBERG ® socket for temperature probes • LUMBERG ® probes series • Range -50 to 150°C • Calibration Check feature • Remaining battery life indication / low battery detection • Auto-off capability • Waterproof casing SPECIFICATIONS Range -50.0 to 150.0°C...
  • Page 8: Hi 93503, Specifications

    SPECIFICATIONS OF HI 93503 Main features: • HI 765 probes series • Available HI 765 accuracy test plugs • Range -50 to 150°C • Calibration Check feature • Remaining battery life indication / low battery detection • Auto-off capability • Waterproof casing SPECIFICATIONS Range -50.0 to 150.0°C...
  • Page 9: Hi 935007, Specifications

    SPECIFICATIONS OF HI 935007 Main features: • Direct HI 766C K-thermocouple probe • Measuring scale selection (°C or °F) • Range -50.0 to 900°C or -58.0 to 1650°F • Remaining battery life indication / low battery detection • Auto-off capability •...
  • Page 10: Operational Guide

    OPERATIONAL GUIDE Each meter is supplied complete with batteries. Remove the back cover, unwrap the supplied batteries and install them while paying attention to their polarity (see also the "Battery replacement" section for more details). Note: HI 93501, HI 93502, HI 93503 and HI 935007 come with batteries already installed.
  • Page 11 Reattach the back making sure that the gasket is in place and tighten the 4 screws to ensure a watertight seal. CALIBRATION CHECK (for HI 93501, HI 93502 and HI 93503) The HI 93501, HI 93502 and HI 93503 models are provided with the Cal-Check feature, which allows the user to check the instrument calibration status at any time.
  • Page 12 using the battery type specified in this instruction manual. • HI 9041 and HI 9061: remove the battery cover and replace the batteries (1x9V for HI 9041 or 4x1.5V AA for HI 9061) with new ones, while paying attention to their polarity. Reattach the battery cover.
  • Page 13: Factory Recalibration

    All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc. Hanna Instruments reserves the right to modify the design, con- struction and appearance of its products without advance notice.
  • Page 14: Temperature Probes

    TEMPERATURE PROBES Hanna offers a wide range of probes to meet your needs with air, liquid, penetration and surface measurements. All Hanna temperature probes are pre-calibrated at the factory and ready-to-use. These interchangeable probes make it possible to switch from one probe to another without requiring recalibration. Hanna probes are also available in different handle colors to avoid cross contamination during testing.
  • Page 15 FOR HI 93502 (probes with Lumberg ® connector) HI 762A/LUM Air probe, w/1 m (3.3') cable & white handle HI 762BP/T/LUM Frozen Food between pack probe, w/1 m (3.3') cable & white handle HI 762L/LUM General purpose liquid probe, w/1 m (3.3') cable & white handle HI 762PW/LUM General purpose penetration probe, w/1 m (3.3') cable &...
