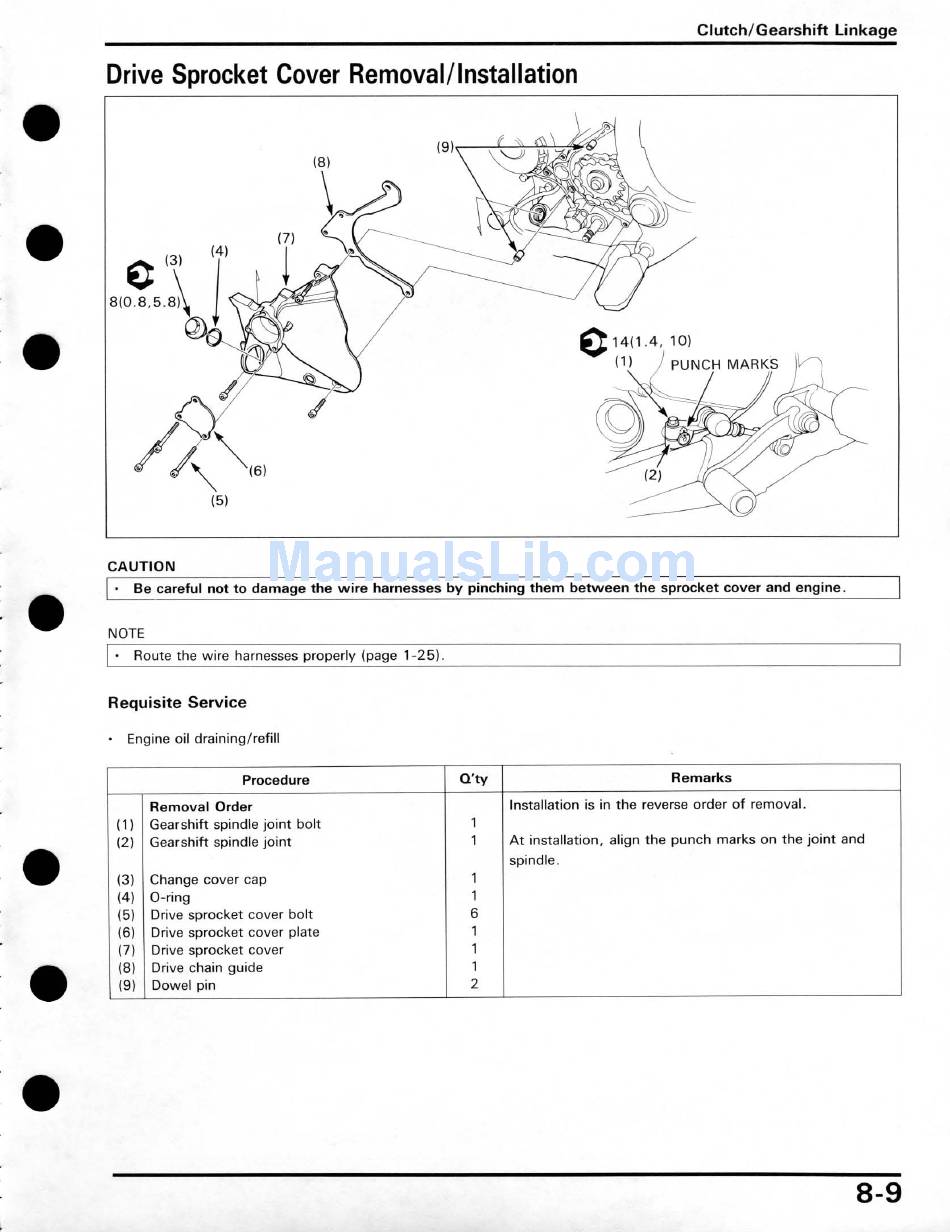

Drive Sprocket Cover Removal/lnstallation
CAUTION
.
Be careful not to damage the wire harnesses b y pinching them between the sprocket cover and engine.
.
.
."..
I
-
Route the wire harnesses properly (page 1-25).
Requisite Service
.
Engine oil draininglrefill
Procedure
Removal Order
Gearshift spindle joint bolt
Gearshift spindle joint
Change cover cap
O-ring
Drive sprocket cover bolt
Drive sprocket cover plate
Drive sorocket cover
Remarks
Installation is in the reverse order of removal.
At installation, align the punch marks on the joint and
spindle.
. .
(8) Drive chain guide
1
(9) Dowel pin 2
