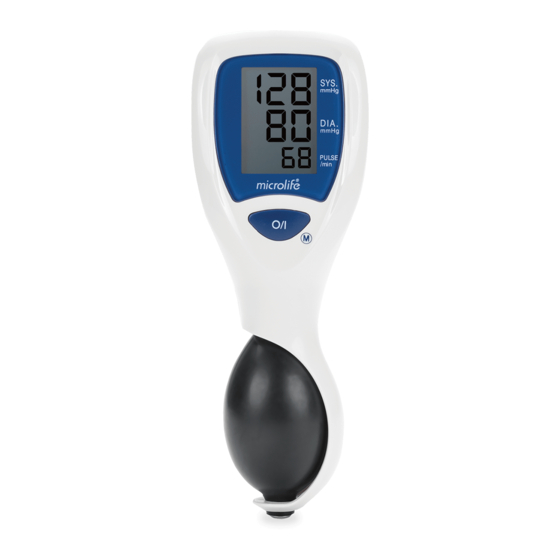

Microlife BP 3AS1-2 Instruction Manual

Semi-automatic blood pressure monitor
Hide thumbs Also See for BP 3AS1-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Europe / Middle-East / Africa
Microlife AG
Max Schmidheiny-Strasse 201
9435 Heerbrugg / Switzerland
Tel. +41 / 71 727 70 30
Fax +41 / 71 727 70 39
Email admin@microlife.ch
www.microlife.com
Asia
Microlife Corporation.
9F, 431, RuiGang Road, NeiHu
Taipei, 114, Taiwan, R.O.C.
Tel. 886 2 8797-1288
Fax.886 2 8797-1283
Email service@microlife.com.tw
www.microlife.com
North / Central / South America
Microlife USA, Inc.
424 Skinner Blvd., Suite C
Dunedin, FL 34698 / USA
Tel. +1 727 451 0484
Fax +1 727 451 0492
Email custserv@microlifeusa.com
www.microlife.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP 3AS1-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microlife BP 3AS1-2

Summary of Contents for Microlife BP 3AS1-2

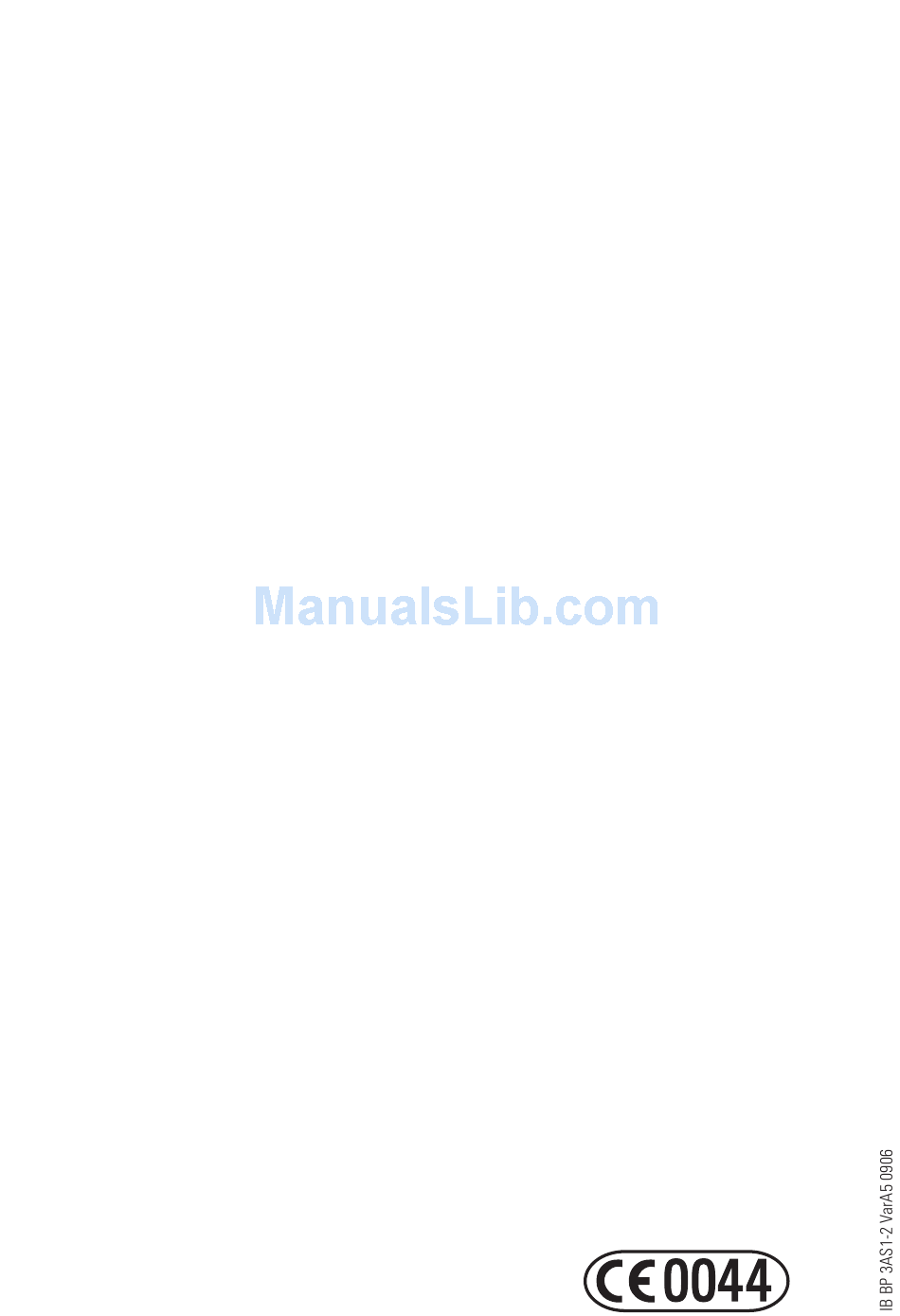

  • Page 1 Tel. 886 2 8797-1288 Fax.886 2 8797-1283 Email service@microlife.com.tw www.microlife.com North / Central / South America Microlife USA, Inc. 424 Skinner Blvd., Suite C Dunedin, FL 34698 / USA Tel. +1 727 451 0484 Fax +1 727 451 0492 Email custserv@microlifeusa.com...
  • Page 2 BP 3AS1-2 Semi-automatic Blood Pressure Monitor Instruction Manual (1-11) Tensiomètre semi-automatique Mode d’emploi (12-23) Tensiómetro semi-automatico Manual de instrucciones (24-35) Halbautomatisches Blutdruckmessgerät Gebrauchsanweisung (36-47) Monitor de Pressão Arterial Semi-Automático Manual de Instruções (48-59)
  • Page 3 Semi-automatic Blood Pressure Monitor Instruction Manual...

  • Page 4: Table Of Contents

    5.1. Before the measurement 5.2. Common sources of error 5.3. Fitting the cuff 5.4. Measuring procedure 5.5. Inflating further 5.6. Discontinuing a measurement 5.7. Memory – displaying the last measurement Error messages/malfunctions Care and maintenance, recalibration Guarantee Technical specifications 10. www.microlife.com...

  • Page 5: Introduction

    1. Introduction 1.1.Features The blood-pressure monitor is a semi-automatic, digital blood-pressure measuring device for use on the up- per arm, which enables very fast and reliable measurement of the systolic and diastolic blood-pressure as well as the pulse frequency by way of the oscillometric method of measuring. The device offers a very high and clinical tested measurement accuracy and has been designed to provide a maximum of user-friendliness.
  • Page 6 Even with normal blood-pressure values, a regular self-check with your blood-pressure monitor is recom- mended. In this way you can detect possible changes in your values early and react appropriately. If you are undergoing medical treatment to control your blood pressure, please keep a record of the level of your blood pressure by carrying out regular self-measurements at specific times of the day.

  • Page 7: The Various Components Of The Blood-Pressure Monitor

    C) Habits • Give up smoking completely • Drink only moderate amounts of alcohol • Restrict your caffeine consumption (Coffee) D) Physical constitution • After a preliminary medical examination, do regular sport. • Choose sports which require stamina and avoid those which require strength. •...

  • Page 8: Tube Connection

    a) Remove cover as illustrated b) Insert the batteries (2 x size 1,5 V), thereby observing the indicated polarity. c) If the battery warning appears in the display, the batteries are empty and must be replaced by new ones. Attention! •...

  • Page 9: Fitting The Cuff

    the centre). The permissible range is printed on the cuff. If this is not suitable for your use, please con- tact your dealer. Note: Only use clinically approved Original-Cuffs! • A loose cuff or a sideways protruding air-pocket causes false measurement values. 5.3.Fitting the cuff a) Push the cuff over the left upper arm so that the tube points in the direction of the lower arm.

  • Page 10: Inflating Further

    b) Grasp the handle and bulb with your free hand and Inflate the cuff to a pressure at least 40 mmHg higher than the expected systolic pressure. If you do not know the value of this pressure, inflate to a value of approximately 160 - 180 mmHg. The cuff pressure is shown continuously on the LCD.

  • Page 11: Error Messages/Malfunctions

    6. Error messages/malfunctions If an error occurs during a measurement, the measurement is discontinued and a corresponding error code is displayed. (Example Error no. 1) Error No. Possible cause(s) ERR 1 The systolic pressure was determined but afterwards the cuff pressure fell below 20 mmHg. This situation can occur, for example, if the tube becomes unplugged after the systolic blood pressure has been measured.

  • Page 12: Care And Maintenance, Recalibration

    ☞ Further information The level of blood-pressure is subject to fluctuations even with healthy people. Important thereby is, that comparable measurements always require the same conditions (rest conditions)! You must consult your specialist dealer or chemist if there are technical problems with the blood-pressure instrument.

  • Page 13: Guarantee

    L for arm circumference 32–42 cm (optional) Reference to standards: EU directive 93/42/EEC, NIBP - requirements: EN 1060-1 /-3 /-4 & ANSI / AAMI SP10 Technical alterations reserved! 10. www.microlife.com Detailed user information about our products and services can be found at www.microlife.com...
