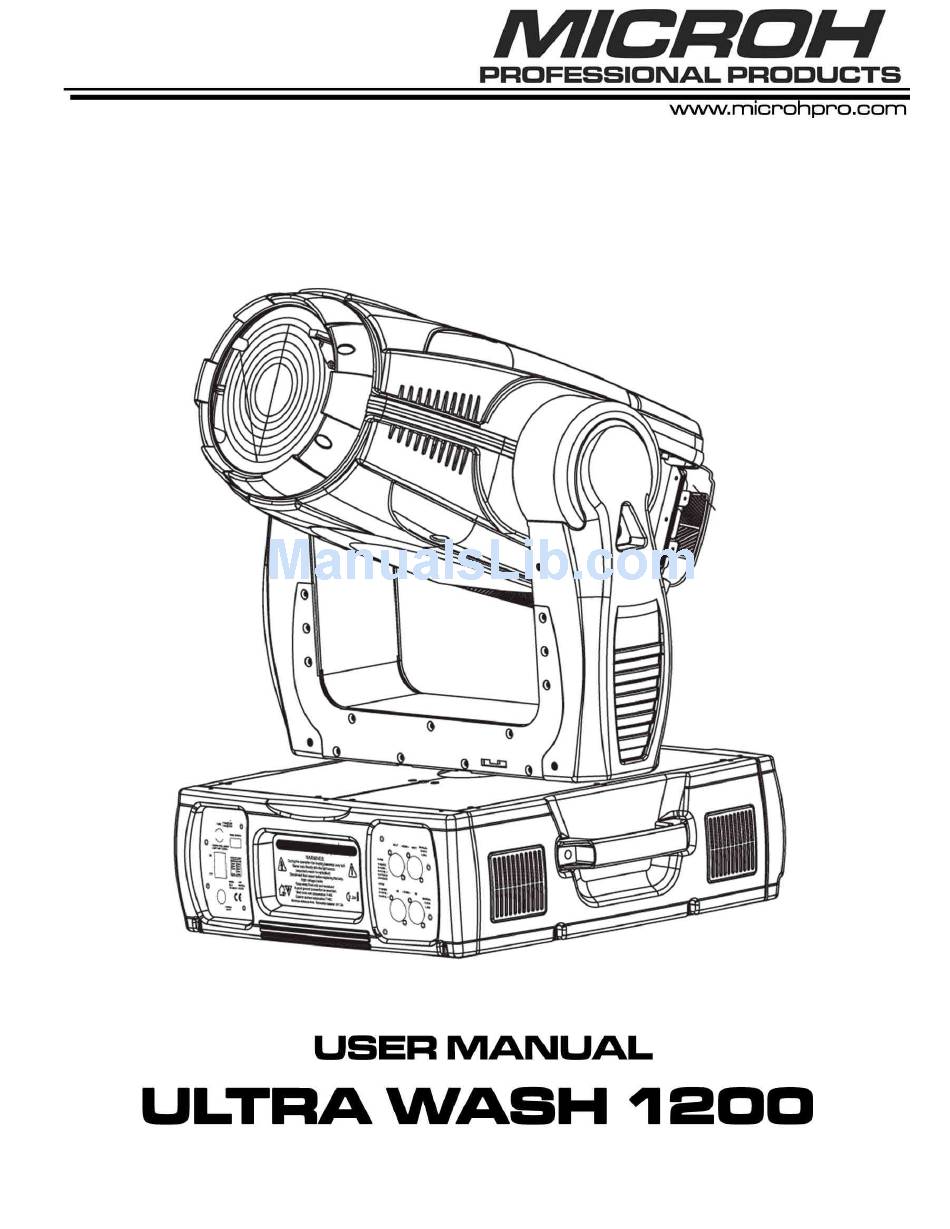

Microh Ultra Wash 1200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra Wash 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microh Ultra Wash 1200

Summary of Contents for Microh Ultra Wash 1200

  • Page 2: Safety Warning

    INTRODUCTION This equipment is produced in accordance with CE standards and conforms to the international standard DMX512 protocol. On receiving this product, please carefully check that there has been no damage caused in transportation and that the following parts are enclosed: 1200W WASH MOVING HEAD SIGNAL CABLE USER MANUAL...
  • Page 3 Never turn on the equipment without a lamp Avoid shaking of strong impacts to the equipment. Never lift the equipment by holding it at the head or arms. Always use the handles on the base. DO NOT turn on the lamp at short intervals as this will reduce the lamp's life. The maximum ambient temperature of the housing is ta=45 .

  • Page 4: Description Of The Fixture

    Description of the fixture Color wheel 1 Coluor wheel 2 CMY/CTO filter module Lamp chamber Inside fresnel lens Ignitor Thermostat Lamp cover...
  • Page 5 DIMENSIONS 585 mm 525mm 489 mm 506 mm...

  • Page 6: Replacing Lamp

    INSTALLATION REPLACING LAMP CAUTION: ALWAYS SWITCH OFF AND UNPLUG AT THE MAINS BEFORE INSTALLING THE LAMP 1. Disconnect the power and all the unit to cool for at least 10 minutes. 2. Loosen screws indicated A & B on the lamp cover at the back of the head. 3.

  • Page 7: Rigging The Fixture

    5, Inserting / Exchanging colours Open the bottom cover of the moving head by loosening the 4 quarter-turn fasteners on the top cover and follow the instruction s below: Gently bend out the colour module to release it from the fixative holes and eject it from the pressing snap.
  • Page 8 Possible omega holder 4 positions: DMX-512 connection/connection between fixtures The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The sockets are wired in parallel. Occupation of the XLR-connection: DMX-input DMX-OUTPUT XLR mounting-socket: XLR mounting-plug: 1- Ground 2 - Signal (-) 3 - Signal (+)

  • Page 9: Dimmer Intensity

    DMX512 CHANNEL FUNCTION Function Channel Pan Fine 16BIT Tilt Tilt Fine 16BIT Pan & Tilt Speed Lamp on/off, Reset Colour Wheel 1 Colour Wheel 2 Cyan Magenta Yellow 3200K Coversion Temperature Effect-- CTO CYM +CTO Color Mix effect CYM +CTO Speed adjust Fresnel Opening Zoom Strobe...
  • Page 10 Channel 1 Pan movement Value Function Pan movement by Channel 2 Pan fine Value Function Fine controlof pan movement proportional Channel 3 Tilt Function Value Tilt movement by 280...
  • Page 11 Channel 4 Tilt Fine Value Function Fine control of Tilt movement proportional Channel 5 Pan & Tilt speed Value Function From fast to slow Slow Fast Fast Channel 6 Lamp on/off, Reset Value Function No effect 240~255 94~100 230~239 90~94 Lamp off after 3 seconds No effect...
  • Page 12 Channel 7 Color wheel 1 Value Function Forward rainbow effect 197~255 77~100 from slow to fast UV filter 6000K Temperature filter Deep Green Deep Orange Deep Blue Deep Red White UV filter 83 97 32~28 69 82 27 32 6000K Temperature filter Deep Green 56 68 22~27...
  • Page 13 Channel 10 Magenta Value Function 0~100% Magenta proportional Channel 11 yellow Value Function 0~100% Yellow Proportional Channel 12 3200K CTO Value Function 0~100% 6000K~3200K Proportional...
  • Page 14 Channel 13 CMY+CTO Marcos Value Function Marco 31 248~255 97~100 Marco 30 240~247 94~97 Marco 29 232~239 91~93.5 224~231 Marco 28 88~90.5 Marco 27 216~223 84.5~87.5 Marco 26 208~215 81.5~84 200~207 78.5~81 Marco 25 Marco 24 192~199 75~78 Marco 23 184~191 72~75 Marco 22...
  • Page 15 Channel 16 Zoom Value Function Max--proportional Min. Channel 17 Strobe Value Function Shutter Open speedy 224~255 88~100 Random strobe from 192~223 75.5~87.5 slow to fast Shutter open dimmer 160~191 63~75 proportional Strobe from slow to 128~159 50~62.5 fast(open slowly and close quickly) Shutter open (dimmer 96~127...
  • Page 16 Fresnel lens Fresnel lens Lamp:MSR 1200 SA Beam angle 10 -LightMax mode 417 Foot-candles(center) 6670 1668 4490 LUX(center) 71800 7980 17950 Distance(m) 0.87 1.75 2.62 3.50 Diameter(m) Distance=5m 8000 7432 (LUX) (Foot-candles) 5574 6000 4000 3716 2000 1858 Diameter(m) Beam angle 13 -Min zoom 176 Foot-candles(center) 2812...

  • Page 17: Technical Specifications

    8. Technical specifications US-model: Voltage......AC100/110/120V , 50/60Hz Fuse........ T 30 A@120V EU-model:Voltage......AC220/230/240V ,50/60Hz Fuse ........T15 A @230V Rated Power 1450W DMX512 Channel 18CHS Luminous 96000 LM Lamp: MSR1200 SA GY 22 -Colour temperature 6000K -Average lifespan:750hrs Optical System: Focus: electronic linear focus Zoom: electronic zoom 10 ~44 -Dimmer: smooth dimmer 0~100% -Strobe: Variable speed 1~10 flashes/sec (plus random strobe effect)

  • Page 18: Maintenance And Cleaning

    Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning willnot only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!
