Rear Panel Components and Indicators
on Sun SPARC Enterprise T5220 Servers

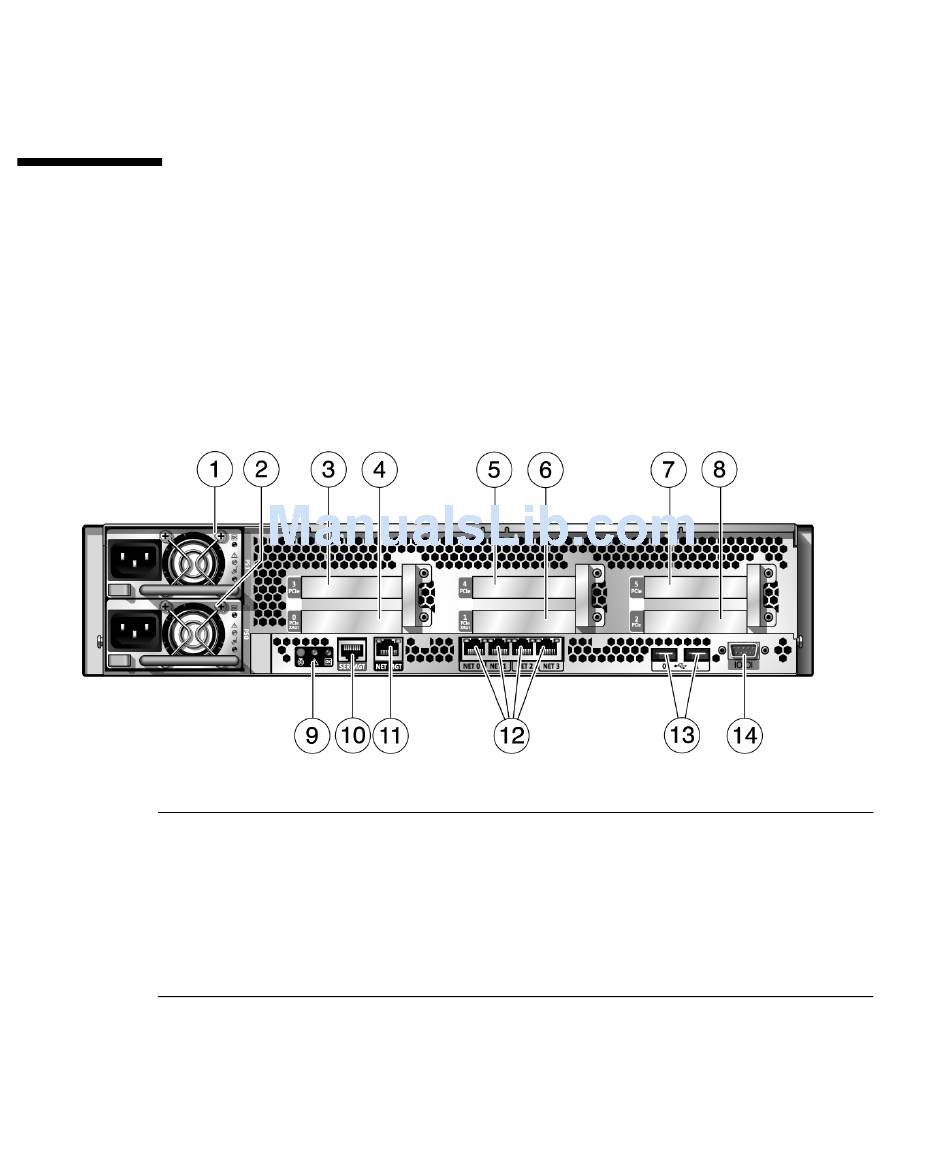

The following figure shows the layout of the I/O ports, PCIe ports, 10 Gbit Ethernet
(XAUI) ports (if equipped) and power supplies on the rear panel.

Rear Panel Components and Indicators on Sun SPARC Enterprise T5220 Servers

FIGURE:
Figure Legend
1
2
3
4
5
6
7
12 Sun SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009
PSU 1
PSU 0
PCIe 3
PCIe/XAUI 0
PCIe 4
PCIe/XAUI 1
PCIe 5
8 PCIe 2
9 Rear panel status LEDs
10 Serial management port
11 Network management port
12 Gigabit Ethernet ports (0, 1, 2, 3)
13 USB ports (0, 1)
14 DB-9 serial port
