555CFK CIRCULATING FAN KIT
INSTALLATION and OPERATING INSTRUCTIONS
Valor models 530 I, RetroFire RF24 and Madrona MF28
Note: This kit must be installed or serviced by a qualifi ed installer, service agency or the gas
supplier. These instructions are to be used in conjunction with the main installation instructions for
the above listed models.
WARNING: If the information in these instructions is not followed exactly, a fi re or explosion
may result causing property damage, personal injury or loss of life.
GROUNDING: This power supply must be installed and grounded in accordance with local codes,
or in the absence of local codes, with the current Canadian Electrical Code CSA C.1. or in the
USA the National Electrical Code ANSI/NFPA0 latest edition.
DESCRIPTION OF SYSTEM
The models listed above have been designed to accommodate the installation of an air circulation
fan. Operated by a variable speed control and a thermally actuated switch, the fan is designed to
boost the natural convection through the heater; this may be a desirable feature dependent on the
fi replace location and room layout. The circulating fan may be installed before the heater installation
or as a retrofi t at a later date.
OPERATION
The fan is designed for automatic operation using a thermal switch. It will take approximately 10-15
minutes for the appliance to warm up and allow the switch to activate the fan. To operate the fan,
rotate the speed control knob clockwise from OFF to HIGH. Further rotation will control the fan speed,
once the automatic thermal switch has been activated. If the fi re is turned off, the fan will continue
to operate until the thermal switch cools, unless the speed control is manually turned to the OFF
position.
Should electrical power fail, the heater operation will remain unaffected.
ELECTRICAL REQUIREMENTS
The fan kit requires a power supply of 120 Volts, 1 phase, 60 Hz. Full load current is less than 1
amp.
4000510-04
CSA approved for use only with:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 555CFK and is the answer not in the manual?

Questions and answers

Summary of Contents for Valor 555CFK

  • Page 1 INSTALLATION and OPERATING INSTRUCTIONS CSA approved for use only with: Valor models 530 I, RetroFire RF24 and Madrona MF28 Note: This kit must be installed or serviced by a qualifi ed installer, service agency or the gas supplier. These instructions are to be used in conjunction with the main installation instructions for the above listed models.

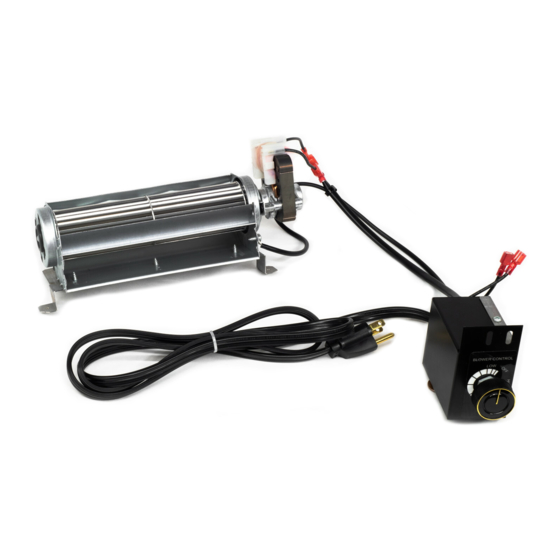

  • Page 2 FAN KIT COMPONENTS The complete #555CFK kit contains the following: • Fan & motor unit assembled to fan mounting bracket c/w wiring harness, speed control junction box, thermal sensor switch and 6’ cord set. • Control box mounting screw and cable retainer.
