Valor Horizon/H4 Installation Manual

INSTALLATION MANUAL
534PGK/650PGK Conversion to Propane Gas
Use with Valor Horizon 534I, 534J and H4 650 Heater Models ONLY
Once converted to LPG, this appliance is certifi ed for
use from 0-4,500 feet. For altitudes above 4,500 feet,
see local codes.

Kit Contents

• 1 Pilot injector (marked 27)
• 1 Burner
• 1 Injector (marked 260)
• 1 Set of conversion labels
• 1 Set of air shutters

Tools Required

• Wrenches, to disconnect gas line
• Phillips (+) screwdriver, to remove burner module &
pilot shield
• Small (jewelers size) fl at blade screwdriver, to set
the pressure
• Small fl at blade screwdriver, to release pressure tap
on valve
• Needle nose pliers, to remove bypass screw
• Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
• Manometer, to set pressure

Rating

Maximum 24,000 Btu/hr
Minimum 13,000 Btu/hr

General Notes Regarding Conversion

The conversion may be done before or after the
appliance is installed into the cavity. However, the gas
must be connected to set the manifold pressure.
4002603-04
©2024, Miles Industries Ltd.
Horizon/H4
WARNING
This conversion kit shall be installed by
a qualifi ed service agency in accordance
with the manufacturer's instructions and
all applicable codes and requirements
of the authority having jurisdiction. If
the information in these instructions is
not followed exactly, a fi re, explosion
or production of carbon monoxide
may result causing property damage,
personal injury or loss of life. The
qualifi ed service agency is responsible
for the proper installation of this kit. The
installation is not proper and complete
until the operation of the converted
appliance is checked as specifi ed in the
manufacturer's instructions supplied with
the kit.
Use this manual in conjunction with the
installation manual supplied with the
appliance.

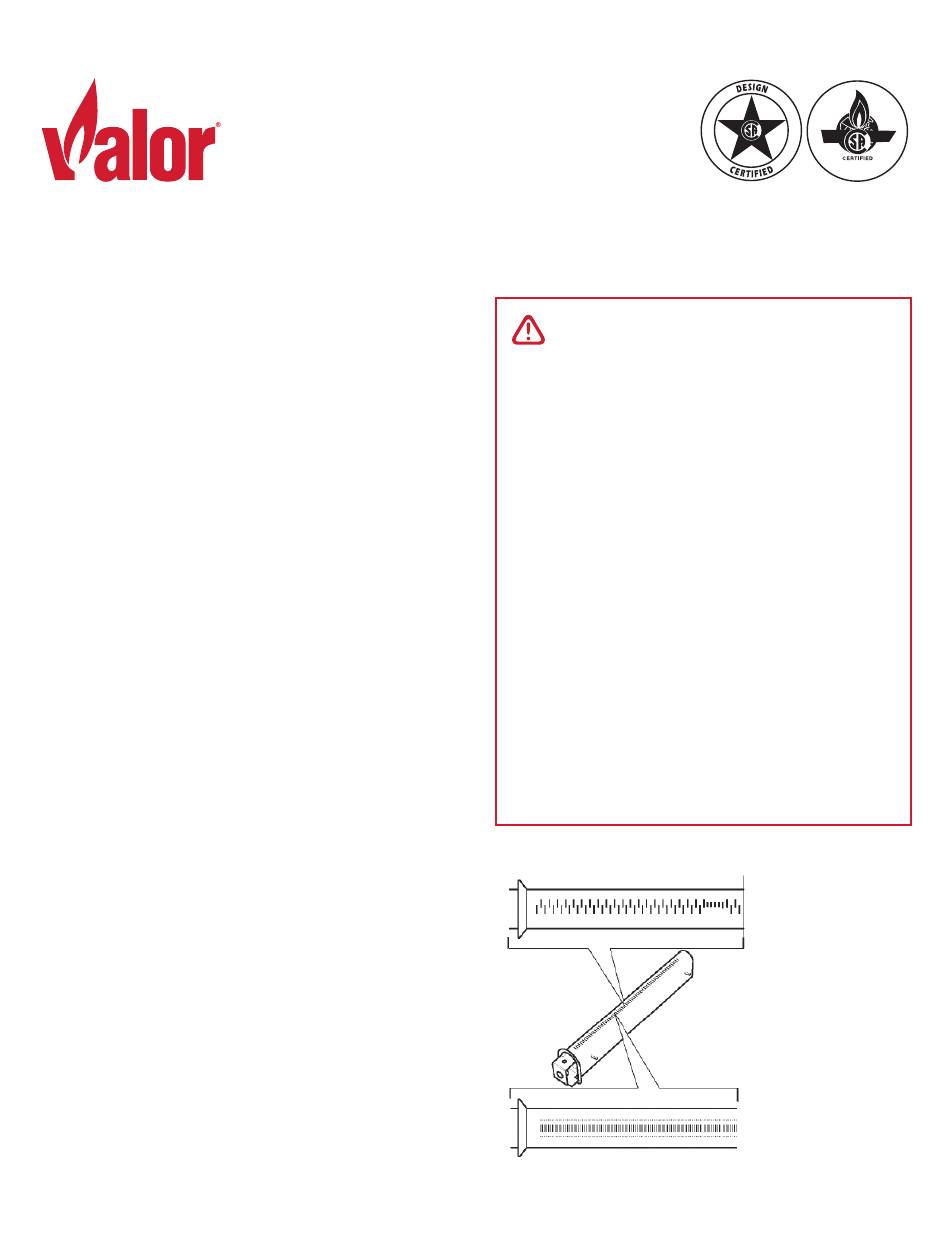

Natural Gas Burner
has two interlaced
rows of slots
Propane Gas Burner
marked "LPG" has
single row of slots
and two rows of
small holes
