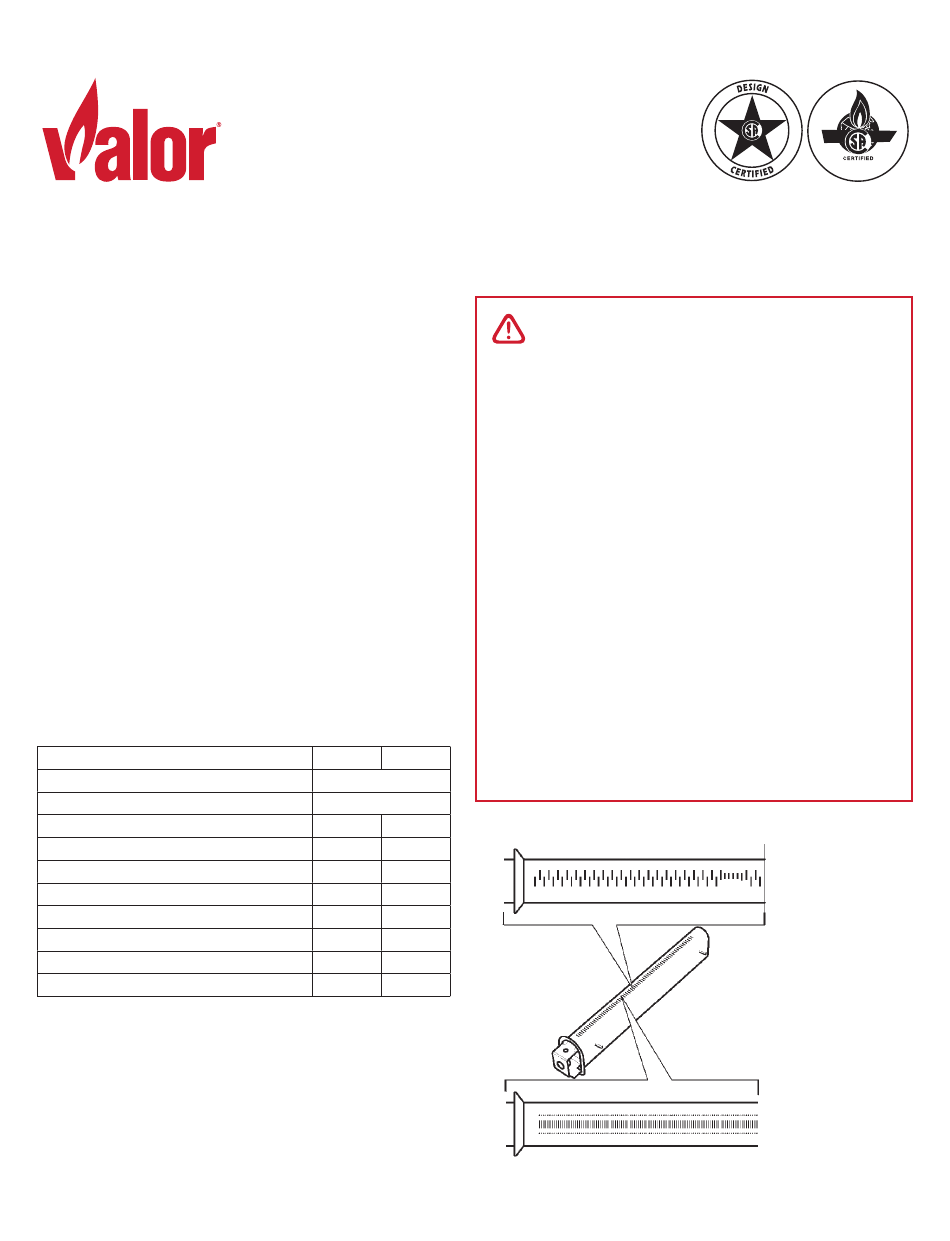

Valor Portrait 530NGK Installation Manual

INSTALLATION MANUAL
530NGK / 530PGK Gas Conversion Kits
Use with Valor Portrait 530 Heater Models ONLY
Kit Contents
• 1 Pilot injector
• 1 Burner
• 1 Main burner elbow injector
• 1 Set of conversion labels
• 1 Set of air shutters
Tools Required
• Wrenches 11/16" (17 mm) and 7/16" (11 mm),
to disconnect gas line
• Phillips (+) screwdriver, to remove burner module
• Small (jewelers size) fl at blade screwdriver,
to set pressure
• Small fl at blade screwdriver, to release pressure tap
on valve
• Manometer, to set manifold at the valve
Specifi cations
Model
Gas
Altitude (Ft.)*
Input Maximum (Btu/h)
Input Minimum (Btu/h)
Manifold Pressure (in w.c.)
Minimum Supply Pressure (in w.c.)
Maximum Supply Pressure (in w.c.)
Main Burner Injector Marking
Pilot Injector Marking
Min. Rate By-Pass Screw
* This appliance is certified for use from 0–4500 feet. For
altitudes above 4500 feet, see local codes.
4004066-03
© 2024, Miles Industries Ltd
Portrait
530NG 530LPG
Natural
0-4,500 feet*
20,500 19,000
6,500 12,500
3.7 10.5
5.0 11.0
10.5 14.0
580 200
35 27
125 125
WARNING
This conversion kit shall be installed by a
qualified service agency in accordance with
the manufacturer's instructions and all
applicable codes and requirements of the
authority having jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may result
causing property damage, personal injury or
loss of life. The qualified service agency is
responsible for the proper installation of
this kit. The installation is not proper and
complete until the operation of the
converted appliance is checked as specified
in the manufacturer's instructions supplied
with the kit.
Use this manual in conjunction with the
installation manual supplied with the
appliance.
Natural Gas Burner
has two interlaced
rows of slots
Propane Gas Burner
marked "LPG" has
single row of slots
and two rows of
small holes
