Valor Portrait 549APB Installation Manual

INSTALLATION MANUAL
Arch Plate Black 549APB
For Windsor Arch Fronts 549AFBv2, 549AFPv2 in insert applications
Approved for use with Valor heater model 530

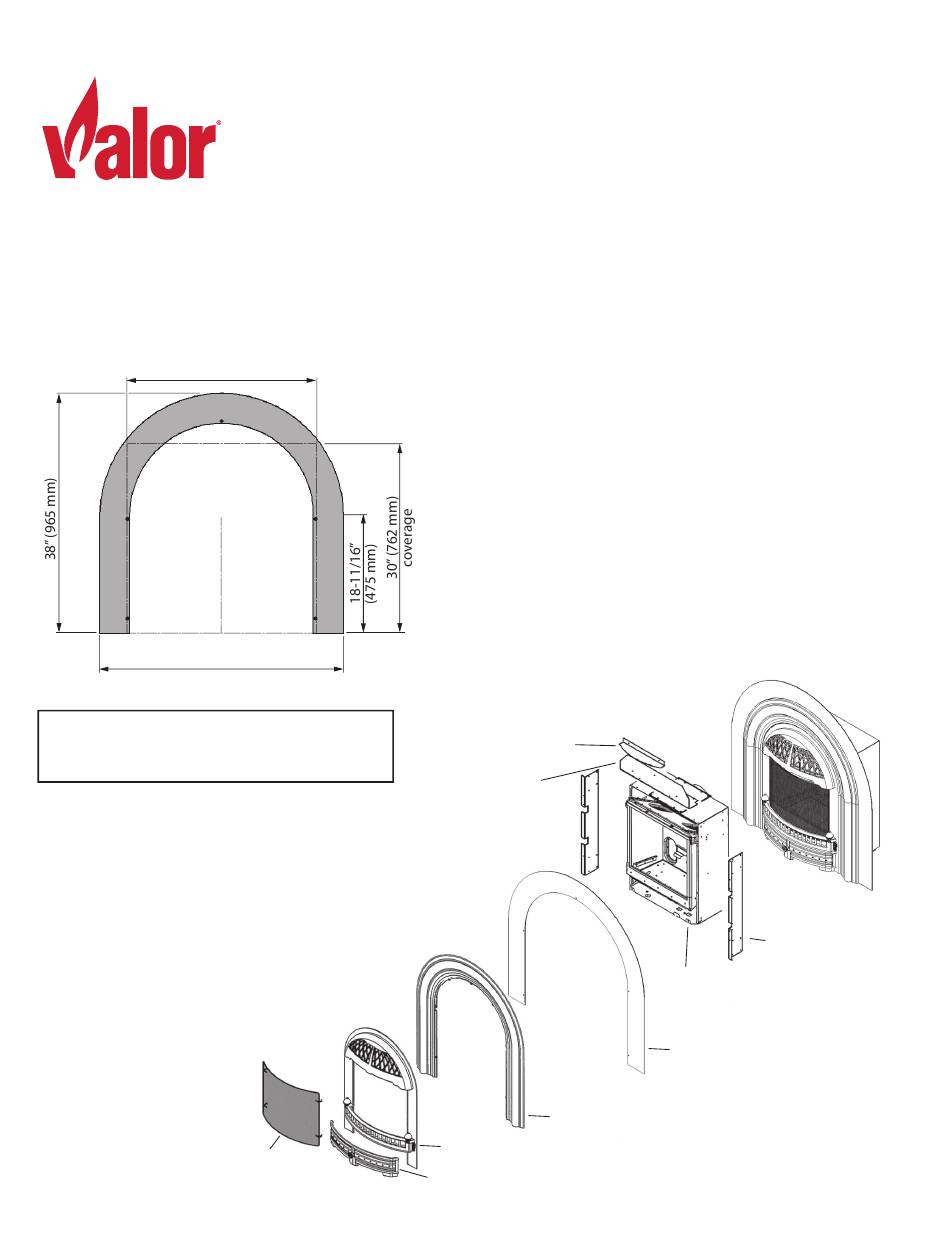

30" (762 mm)
coverage
38-9/16" (980 mm)
Use this manual in conjunction with the 549
Windsor Arch Front manual and the 530
heater manual.
4006752-04
©2023, Miles Industries Ltd.
Portrait
Barrier Screen

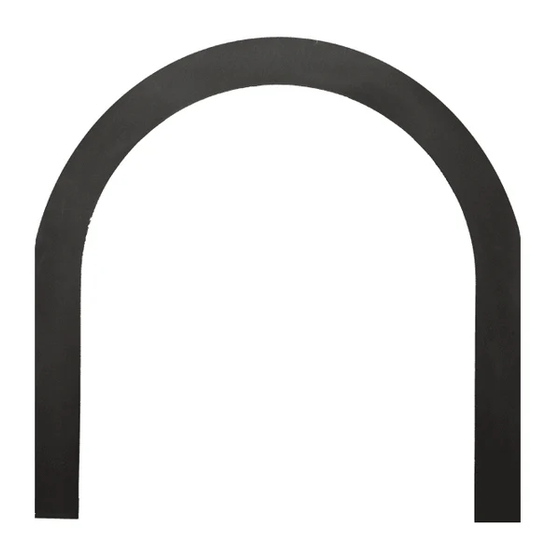

The 549APB—Arched Plate Black is intended to be used with the
549AFBv2 and 549AFPv2 Windsor Arched Fronts on the Valor
heater models 530.
The Arched Plate can be used where necessary to cover larger
fireplace openings.
Note : There are two versions of the 530 heater:
• 530IN/IP, for zero clearance applications;
• 530INI/IPI, for insert applications ONLY.
The zero clearance version 530IN/IP may also be installed
in insert applications by using a vent adapter.
The insert version 530INI/IPI however, may not be used
for zero clearance applications.
Top
Air Deflector
Top Baffle
Outer Cast Arch
Inner Cast Arch
Hearth Fender
Side Mounting Brackets (2)
Model 530 Heater
(sold separately)
549APB - Arched Plate Black
for use with 549 Windsor Arch
Fronts (sold separately)
1
