INSTALLATION INSTRUCTIONS

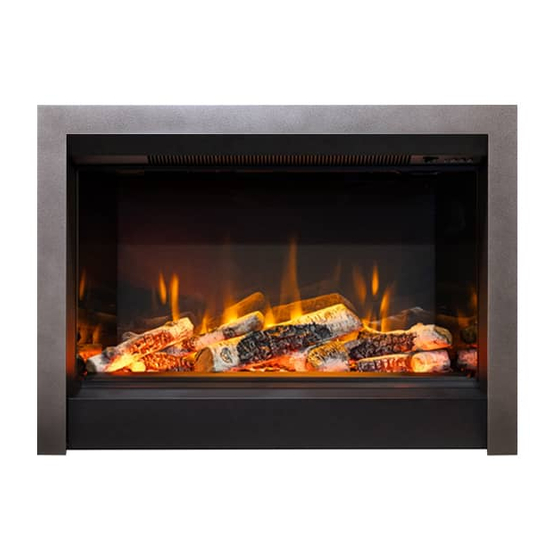

GE4CIK—GE4 Clean Installation Front
For GE4 Electric Fireplace Insert
NOT FOR USE WITH GAS MODEL FIREPLACES
35-5/8" [906 mm]
32-5/16" [820 mm]
outer frame
NOTE
- Installing the GE4 with a CIK kit will make the
appliance permanently recessed into the wall
cavity.
- The GE4 appliance is supplied with a power
cord that will require a receptacle to plug
into. Alternatively, the appliance can be hard-
wired—see the GE4 installation manual for
details.
- Consider accessibility to the receptacle if using
the plug-in power cord to power the appliance.
Consult federal and local codes.
4009575-01
© Copyright Miles Industries Ltd., 2024.
9/16"
15-1/4"
[15 mm]
[387 mm]
2-5/16"
[59 mm]
3-1/8"
[79 mm]
GE4 Electric Fireplace
Top panel
4011467
LS Panel
4011481
Lower Panel
4011468

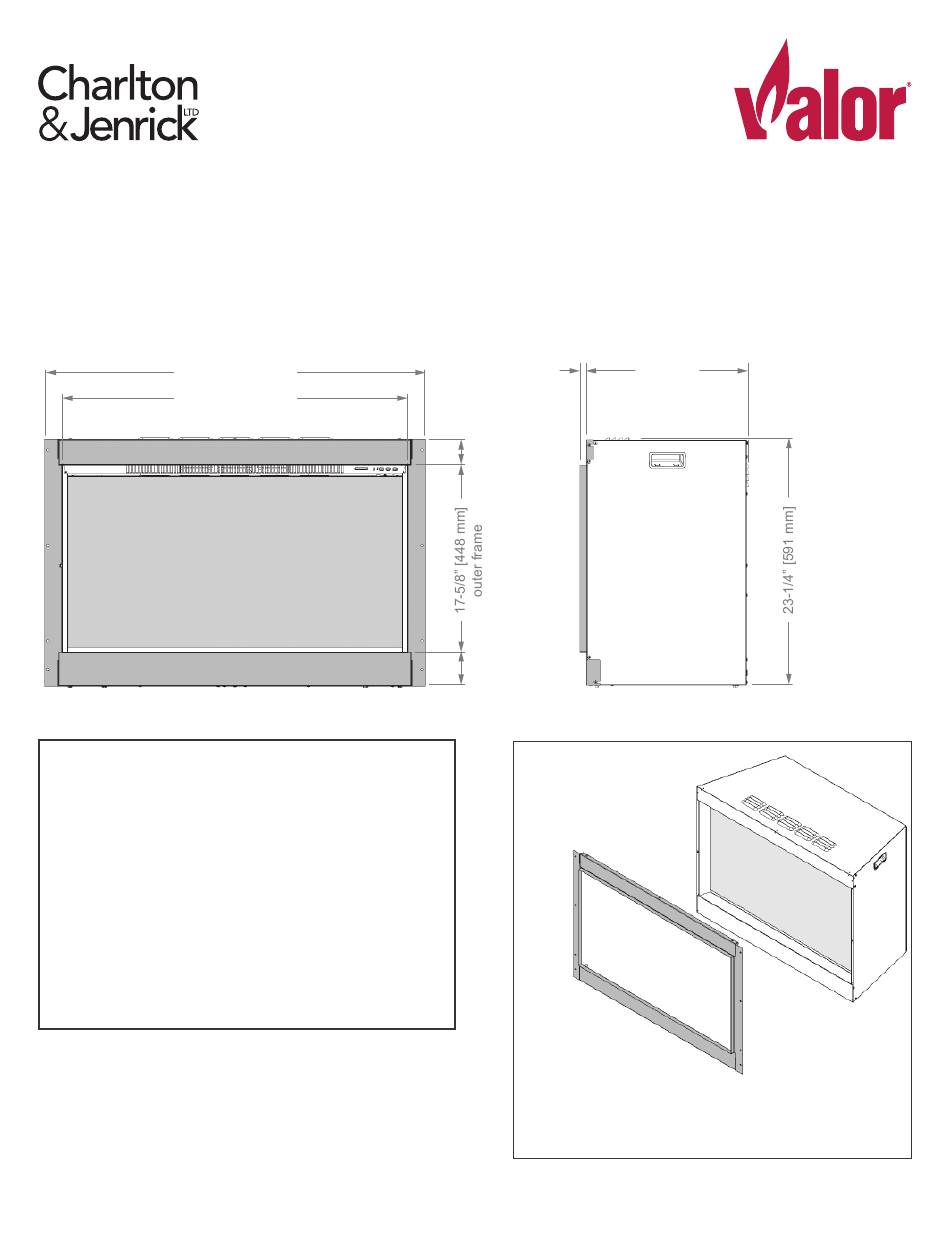

Overview—GE4 Fireplace, GE4CIK Clean Installation
Kit sold separately
RS Panel
4011469
GE4CIK
Clean Installation Kit
(incl. 6 screws 4004560)
