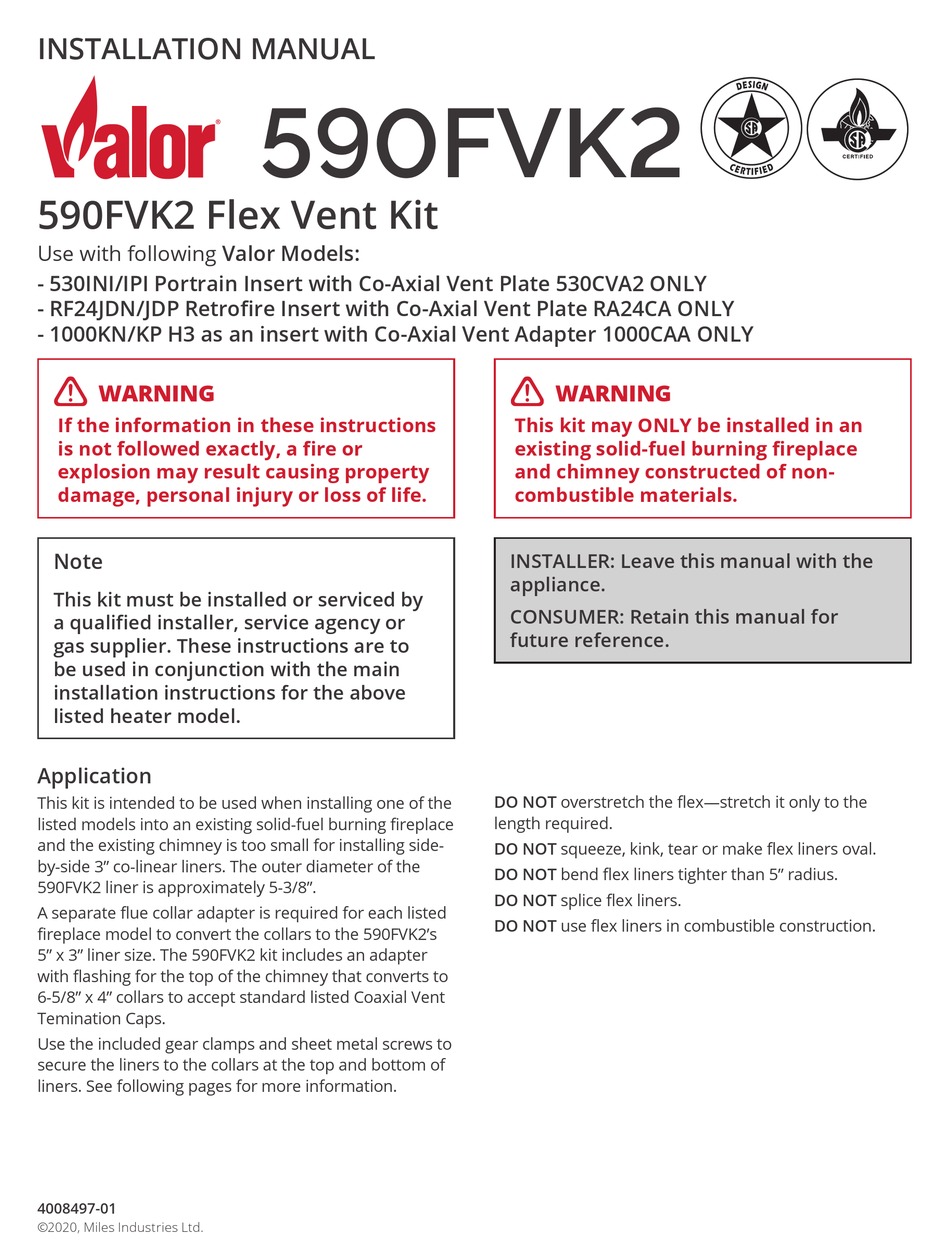

INSTALLATION MANUAL

590FVK2 Flex Vent Kit

Use with following Valor Models:

- 530INI/IPI Portrain Insert with Co-Axial Vent Plate 530CVA2 ONLY

- RF24JDN/JDP Retrofire Insert with Co-Axial Vent Plate RA24CA ONLY

- 1000KN/KP H3 as an insert with Co-Axial Vent Adapter 1000CAA ONLY

WARNING

If the information in these instructions

is not followed exactly, a fire or

explosion may result causing property

damage, personal injury or loss of life.

Note

This kit must be installed or serviced by

a qualified installer, service agency or

gas supplier. These instructions are to

be used in conjunction with the main

installation instructions for the above

listed heater model.

Application

This kit is intended to be used when installing one of the

listed models into an existing solid-fuel burning fireplace

and the existing chimney is too small for installing side-

by-side 3" co-linear liners. The outer diameter of the

590FVK2 liner is approximately 5-3/8".

A separate flue collar adapter is required for each listed

fireplace model to convert the collars to the 590FVK2's

5" x 3" liner size. The 590FVK2 kit includes an adapter

with flashing for the top of the chimney that converts to

6-5/8" x 4" collars to accept standard listed Coaxial Vent

Temination Caps.

Use the included gear clamps and sheet metal screws to

secure the liners to the collars at the top and bottom of

liners. See following pages for more information.

4008497-01

590FVK2

WARNING

This kit may ONLY be installed in an

existing solid-fuel burning fireplace

and chimney constructed of non-

combustible materials.

INSTALLER: Leave this manual with the

appliance.

CONSUMER: Retain this manual for

future reference.

DO NOT overstretch the flex—stretch it only to the

length required.

DO NOT squeeze, kink, tear or make flex liners oval.

DO NOT bend flex liners tighter than 5" radius.

DO NOT splice flex liners.

DO NOT use flex liners in combustible construction.

Need help?

Do you have a question about the 590FVK2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Valor 590FVK2

Page 1 DO NOT use flex liners in combustible construction. fireplace model to convert the collars to the 590FVK2’s 5” x 3” liner size. The 590FVK2 kit includes an adapter with flashing for the top of the chimney that converts to 6-5/8” x 4” collars to accept standard listed Coaxial Vent Temination Caps.
Page 2 Kit Content Clean Fireplace and Chimney Have the chimney swept and the fireplace cavity 6-5/8” x 4” collars including ash dumps and clean-outs cleaned before 18” installing the heater and vent liners. Any creosote or soot residue remaining in the fireplace cavity chimney or clean-out may cause odors or stains once the insert is installed.
Page 3 Rear view Approved 6-5/8 x 4 co-axial terminal Terminal adapter with Discard Add 530CVA2— flashing supplied existing Appliance with 590FVK2 vent plate Adapter 5 x 3” 5” min. liners bend radius 40’ 10’ Add optional 530CVA2 for co-axial venting (5” x 3”...
Page 4 18” 18” RF24JD with RA24CA—Co-axial Vent Plate Co-axial installation into existing F/P Approved 6-5/8 x 4 Terminal adapter with co-axial terminal flashing supplied with 590FVK2 5 x 3” 5” min. liners bend radius 40’ 8’ 590FVK2 5 x 3” co-axial...
Page 5 - sold separately. See appliance manual for listed terminals 1000KN-KP appliance supplied top co-axial outlet Terminal Adapter with Flashing supplied with 590FVK2 18” 18” 1000CAA (5” x 3”) Co-axial Vent Adapter (packed separately) Approved 6-5/8 x 4 Approved 6-5/8 x 4...
Page 6 Installation 5. Starting with 3-inch inner pipe, attach pipe assembly to terminal adapter-flashing collars using gear 1. Remove 3” pipe from the 5” pipe to stretch them. clamps and 2 sheet metal screws below clamp to 2. Carefully stretch each pipe separately to the required ensure pipes won’t slide off.
Page 7 8. Install terminal cap to adapter-flashing and secure 9. Insert fireplace with co-axial vent plate or adapter with sheet metal screws. into hearth. Connect pipes to vent plate and secure with cable clamps. 10. Add 2 sheet metal screws through vent collars above each gear clamp to ensure it does not slip off the collar.
Page 8 5 pouces. flex de 3 et 5 pouces du 590FVK2. Un adaptateur de NE PAS raccorder deux morceaux de conduits flex. sortie de cheminée incorporant un solin est fourni avec NE PAS utiliser de conduits flex dans une construction le 590FVK2 convertissant la sortie à...
Page 9 Contenu de la trousse Nettoyez le foyer et la cheminée Procédez au ramonage de la cheminée et au nettoyage Buses 6-5/8” x 4” 6-5/8” x 4” collars de l’âtre du foyer incluant le bac à cendres et la trappe 18” à...
Page 10 590FVK2 - vendue Kit de conduits séparément. Voir Foyer 25-1/2” 5 x 3” guide d’installation [648 mm] Raccord du foyer pour les coaxial sorties permises. de foyer 530CVA2 Adaptateur de sortie avec Solin intégré fourni avec le 590FVK2 18” 18”...
Page 11 Voir guide d’installation du foyer pour les sorties permises. Adaptateur de sortie avec Solin intégré fourni avec le 590FVK2 Plaque d’évent coaxial RA24CA (5” x 3”) (emballée separément) 18” 18” RF24JD avec RA24CA—Plaque d’évent coaxial Installation coaxiale dans un foyer existant...
Page 12 Foyer 1000KN/P fourni avec buse Adaptateur de d’évent coaxiale sur sortie avec Solin le dessus intégré fourni avec le 590FVK2 18” 18” Raccord coaxial flex 1000CAA (5” x 3”) (vendu séparément) Sortie coaxiale Sortie coaxiale 6-5/8 x 4 certiﬁ ée 6-5/8 x 4 certiﬁ...
Page 13 Installation 5. En commençant par le conduit de 3 pouces, fixez les deux conduits aux buses de l’adaptateur de sortie à 1. Enlevez le conduit de 3” du conduit de 5” pour les l’aide de colliers de serrage fournis; ajoutez-y 2 vis à étirer.
Page 14 8. Installez le capuchon de sortie à l’adaptateur et fixez- 9. Insérez le foyer avec la plaque d’évent ou l’adaptateur le avec des vis à métaux. coaxial dans l’âtre. Raccordez les conduits aux buses avec des colliers de serrage. 10. Pour chaque conduit, insérez 2 vis à métaux au- dessus du collier de serrage à...
