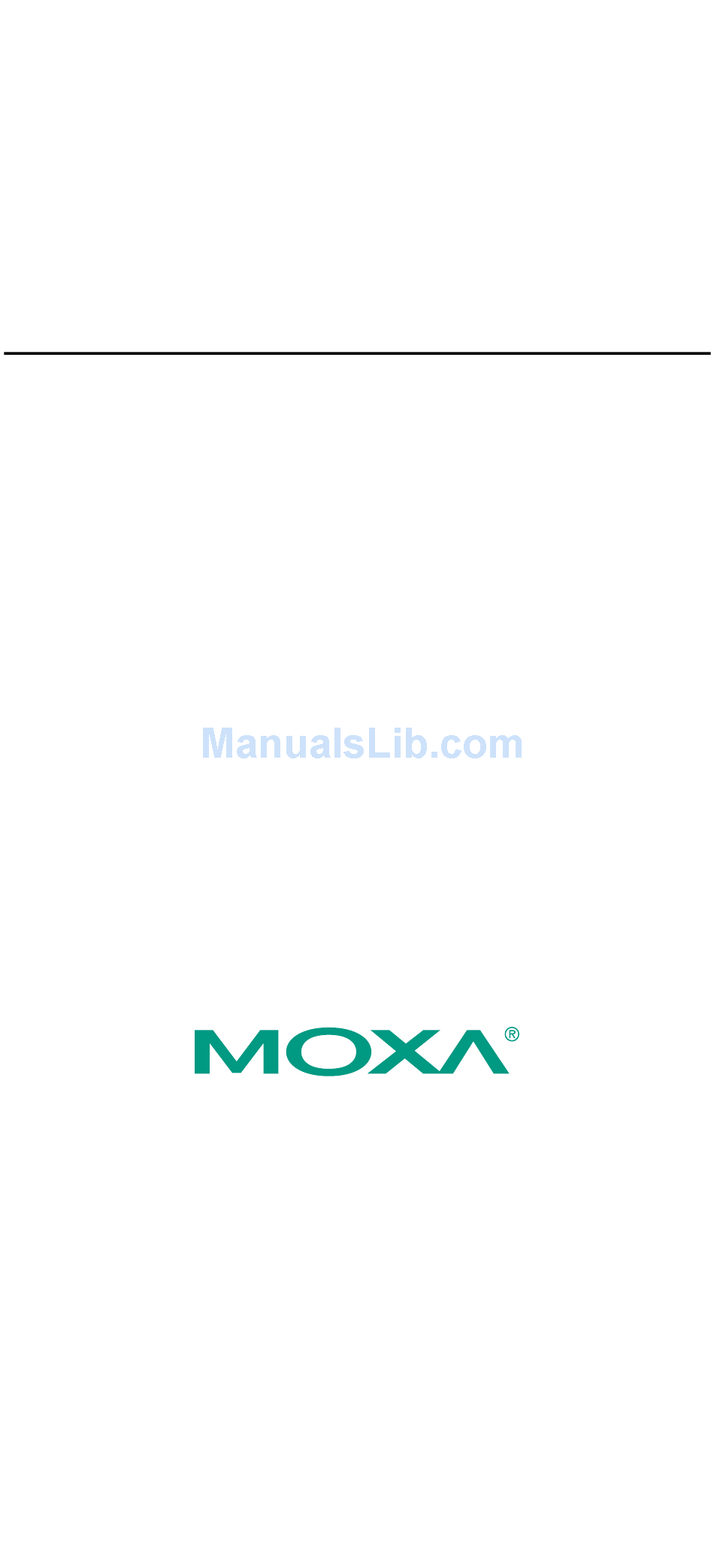

Page 1: Hardware Installation Guide
Moxa EtherDevice™ Switch EDS-G509 Hardware Installation Guide Third Edition, July 2010 © 2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan, R.O.C. TEL: +886-2-8919-1230 P/N: 1802005090012... -
Page 2: Package Checklist

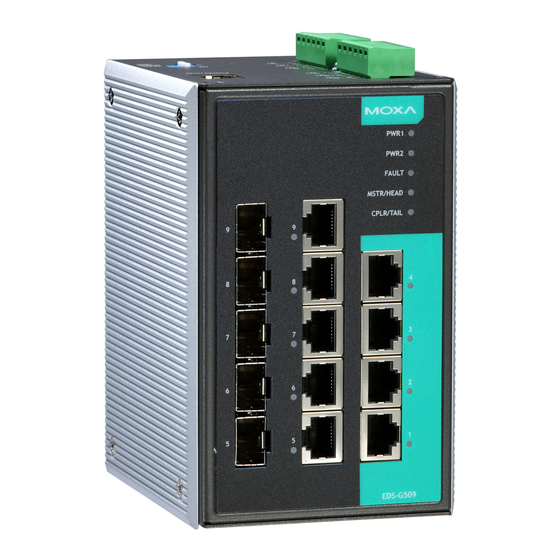

Package Checklist The Moxa EDS-G509 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. 1 EDS-G509 EtherDevice Switch Hardware Installation Guide CD-ROM with User’s Manual and Windows utility... - Page 3 Panel Views of EDS-G509 Front Panel View Front Panel: 1 to 4: 10/100/1000 BaseT(X) port 5 to 9: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo MSTR/HEAD ports CPLR/TAIL Turbo Chain Logo PWR1: LED for power input 1 PWR2: LED for power input 2...
-
Page 4: Din-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-G509 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the EDS-G509, make sure the stiff metal spring is situated towards the top, as shown in the following figures. -
Page 5: Wiring Requirements
STEP 3—Once the screws are fixed to the wall, insert the four screw heads through the wide parts of the keyhole-shaped apertures, and then slide the EDS-G509 downwards, as indicated in the figure at the right. Tighten the four screws for more stability. -
Page 6: Wiring The Relay Contact
Wiring the Relay Contact The EDS-G509 has two sets of relay outputs—relay 1 and relay 2. Each relay contact uses two contacts of the terminal block on the EDS-G509’s top panel. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 7: Wiring The Redundant Power Inputs
EDS-G509’s top panel. Wiring the Digital Inputs The EDS-G509 has two sets of digital inputs, DI 1 and DI 2. Each DI consists of two contacts of the 6-pin terminal block connector on the EDS-G509’s top panel, which are used for the two DC inputs. The top and front views of one of the terminal block connectors are shown here. - Page 8 Terminal Emulator, to access the EDS-G509’s serial console. (Baudrate: 115200 bps, no parity, 8 data bit, 1 stop bit) RJ45 (10-pin) Console Port Pinouts Description ------ ------ ------ RJ45 (10-pin) to DB9 (F) Cable Wiring Moxa COM Port EtherDevice Server...
- Page 9 (DD-) (DC-) 100 BaseFX or 1000BaseSFP Fiber Port The Gigabit Ethernet ports on the EDS-G509 series are SFP slots, which require 100BaseFX SFP or Gigabit mini-GBIC fiber transceivers to work properly. Moxa provides complete transceiver models for various distance requirements.
-
Page 10: Turbo Ring Dip Switch Settings
There are 4 Hardware DIP Switches for Turbo Ring on the top panel of EDS-G509 that can help setup the Turbo Ring easily within seconds. If you do not want to use a hardware DIP switch to setup the Turbo Ring, you can use a web browser, telnet, or console to disable this function. - Page 11 Master and Coupler functions. NOTE If you do not enable any of the EDS-G509 switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-G509 with the smallest MAC address range to be the Ring Master.
-
Page 12: Led Indicators
LED Indicators The front panel of the Moxa EDS-G509 contains several LED indicators. The function of each LED is described in the following table: Color State Description Power is being supplied to power input PWR1 AMBER Power is not being supplied to power input P1. -
Page 13: Specifications
Specifications Technology Standards IEEE802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p, 802.1X, 802.3ad, 802.3z Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP, IPv6 MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1,2,3,9... - Page 14 Fast Ethernet SFP-M SFP-S SFP-L Wavelength 1300 nm 1310 nm 1550 nm Max. Tx -18 dBm 0 dBm 0 dBm Min. Tx -8 dBm -5 dBm -5 dBm Rx Sensitivity -34 dBm -34 dBm -34 dBm Link Budget 26 dB 29 dB 29 dB Typical Distance...
-
Page 15: Warranty
Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 WARRANTY 5 years Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: +1-714-528-6777 Tel: +86-21-5258-9955 Fax: +1-714-528-6778 Fax: +86-10-6872-3958 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
