UG-388
OPERATING INSTRUCTIONS FOR THE EVALUATION BOARD
To use the
ADP1053
evaluation board, follow these steps:
1.
Insert the ADP1053DC-EVALZ daughter card into the
ADP1053
evaluation motherboard (see Figure 5). Note
that users must create a motherboard for the
evaluation daughter card (the motherboard shown in
Figure 5 is a prototype).
2.
Connect the cables of the USB-to-I
card and to the PC (see Figure 4).
The USB interface provides the 5 V supply to the daughter
card. The daughter card has an on-board LDO (the ADP3303)
that provides the 3.3 V power to the ADP1053.
ADP1053
2
C dongle to the daughter

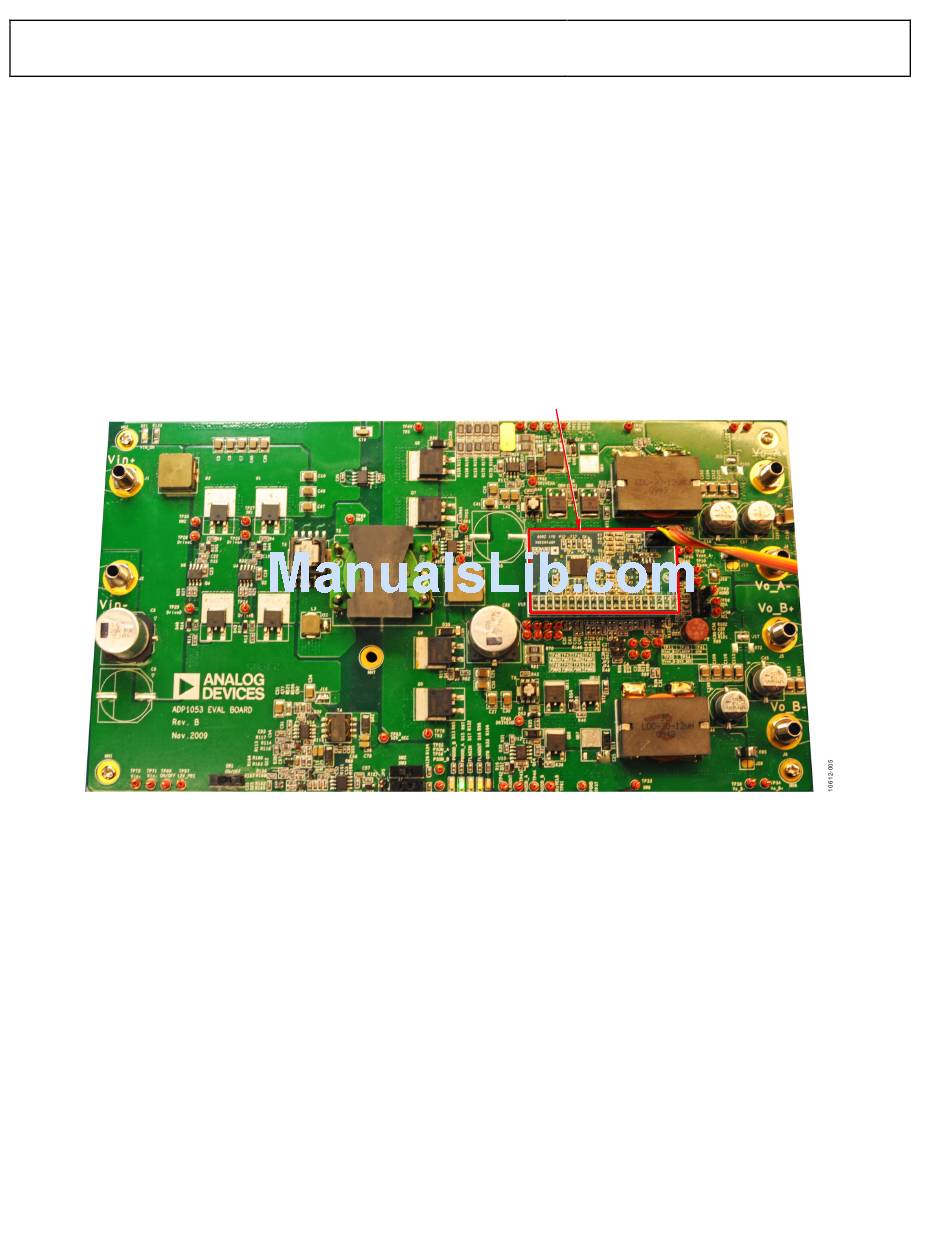

Figure 5.
ADP1053
Evaluation Board with Daughter Card Plugged In
Rev. 0 | Page 4 of 8
Evaluation Board User Guide
3.
Download the
ADP1053
product page
and install the software on a PC.
4.
Run the GUI software to verify the connection to the
ADP1053
before applying the input supply voltage to
the motherboard.
5.
Apply power to the input terminals of the motherboard.
ADP1053
DAUGHTER CARD
GUI software from the
ADP1053
