Daughter Card Evaluation Board for the

FEATURES

ADP1053 daughter card with 40-pin connector
2
and I C interface
Plugs into ADP1053 evaluation motherboard
PMBus compliant
Low component count
PCB size: 28 mm × 50 mm
Robust design

GENERAL DESCRIPTION

The ADP1053, based on a voltage mode PWM architecture, is
a flexible, application dedicated digital controller designed for
isolated and nonisolated dc-to-dc power supply applications.
The ADP1053 enables highly efficient power supply design and
facilitates the introduction of intelligent power management
techniques to improve energy efficiency at a system level. The
ADP1053 operates from a single 3.3 V supply.
The ADP1053 provides control, monitoring, and protection
of up to three independent channel outputs. The eight flexible
PWM outputs can be configured as three independent channels:
two regulated channels with feedback control plus one additional
unregulated channel with a fixed duty cycle. The frequency of
these three channels can be programmed individually from
50 kHz to 625 kHz; all channels can be synchronized internally
or to an external signal.
PIN 1
2
USB-TO-I
DONGLE
CONNECTOR
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

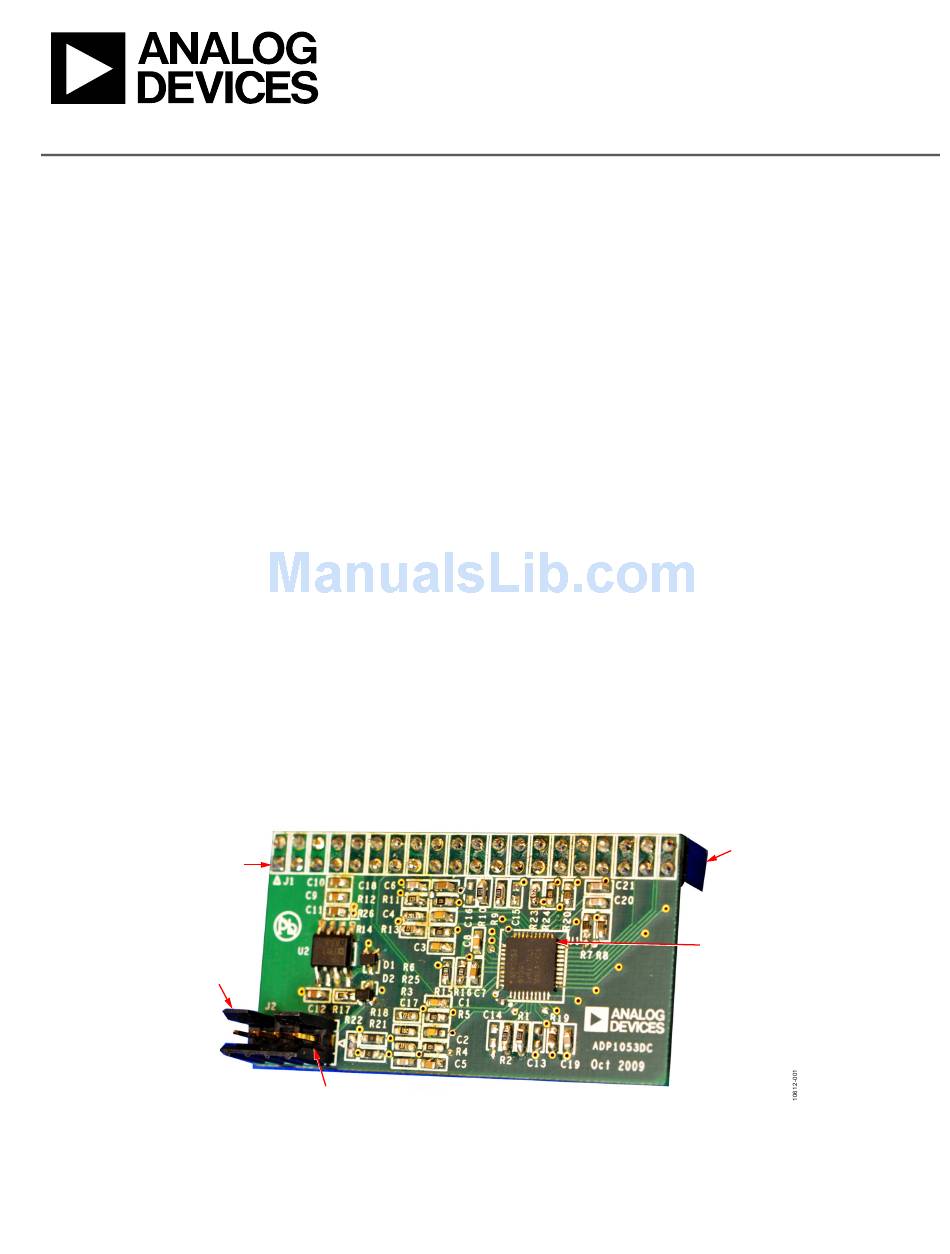

ADP1053DC-EVALZ DAUGHTER CARD EVALUATION BOARD

C
PIN 1

Evaluation Board User Guide

ADP1053 Digital Power Supply Controller
Features include differential voltage sensing, fast current sensing,
flexible start-up sequencing and tracking, and synchronization
between devices to reduce low frequency system noise. Protection
and monitoring features include overcurrent protection (OCP),
undervoltage protection (UVP), overvoltage protection (OVP),
and overtemperature protection (OTP).

EVALUATION BOARD DESCRIPTION

The ADP1053 daughter card evaluation board allows the user
to quickly evaluate the
daughter card plugs into an existing
motherboard. Communication to the daughter card is established
by connecting the USB-to-I
daughter card and a PC running Windows® 2000, Windows NT,
Windows XP, Windows Vista®, or Windows 7.
2
The USB-to-I C dongle interface (Part No. ADP-I2C-USB-Z)
must be purchased separately from Analog Devices, Inc. The
graphical user interface (GUI) software for the
daughter card evaluation board can be downloaded from the
ADP1053 product
This user guide describes how to set up and use the
daughter card evaluation board. The user guide should be read
in conjunction with the
detailed information about the
power supply controller.
Figure 1.
Rev. 0 | Page 1 of 8
ADP1053 (see Figure 1). The
ADP1053 evaluation
2 C dongle interface between the
page.
ADP1053 data sheet, which provides
ADP1053 3-channel digital
