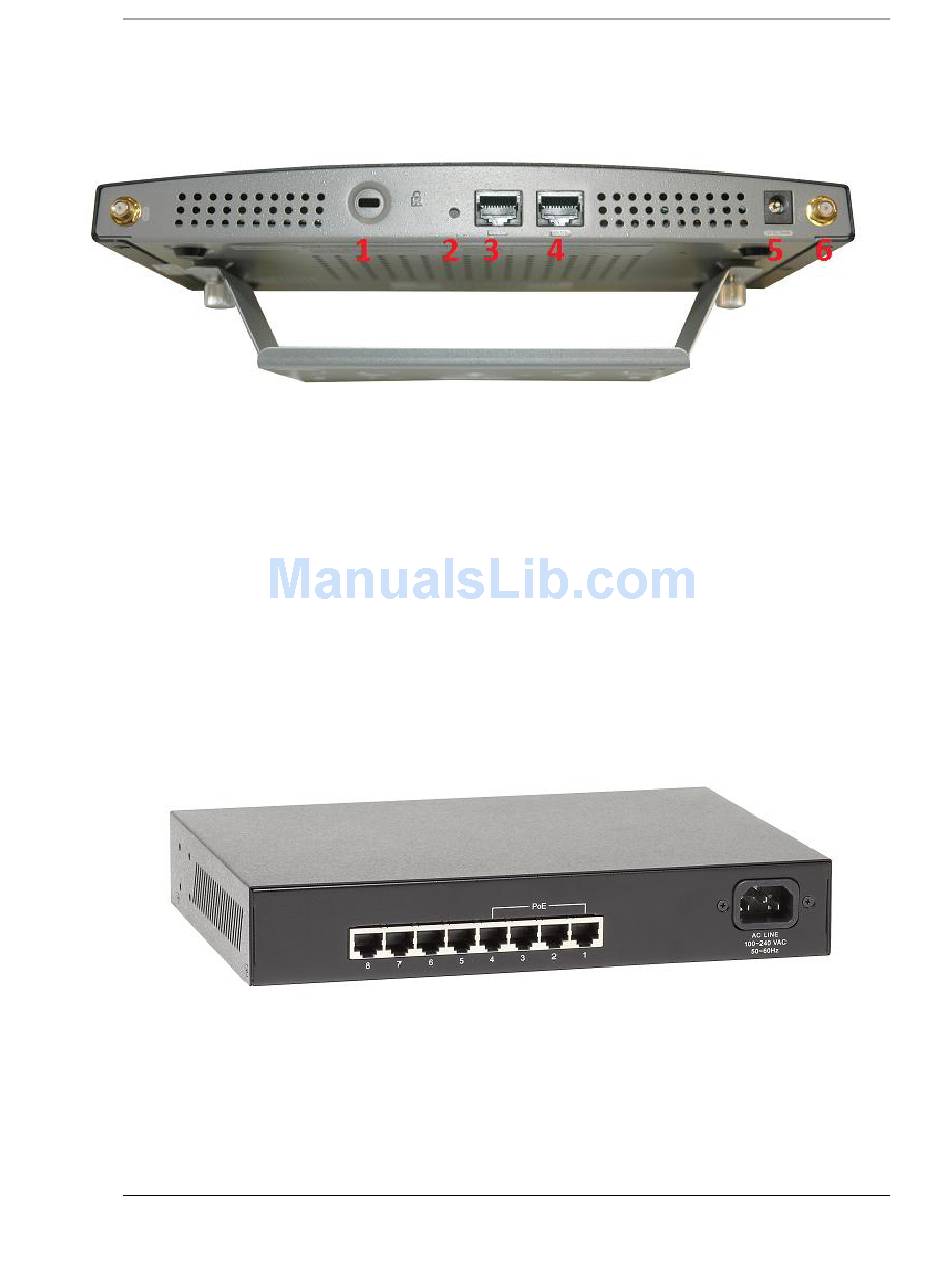

WAP-W5N with Dual Band Option
1. AP Lock – Uses normal laptop lock cables
2. Reset button – Unused; the controller handles everything
3. CON Port – Used for loading firmware onto the WAP, and for manufacturer use
4. LAN Port – Connection port, should be connected to the PoE switch provided
5. Power Connection – For DC power, unused as the VKIT is designed for use with PoE
6. Antenna – Connect antennas to the gold connectors
2.3.
SW8-4PB
Ports 1-4 are PoE ports (right side of the ports bank in the figure). The WAP-W5Ns should be
connected to any of these ports. The CTL-W5N should be connected to port 8 on the left side,
and the router (light-gray RT-50V device) of the RSB-KIT or RSB-K24C should be connected from
Switch port 2 on the router to port 7 of the SW8-4PB.
