Changing Controller Ip Address - Pakedge Device & Software WAP-VKIT Installation Manual

WAP-VKIT User Manual

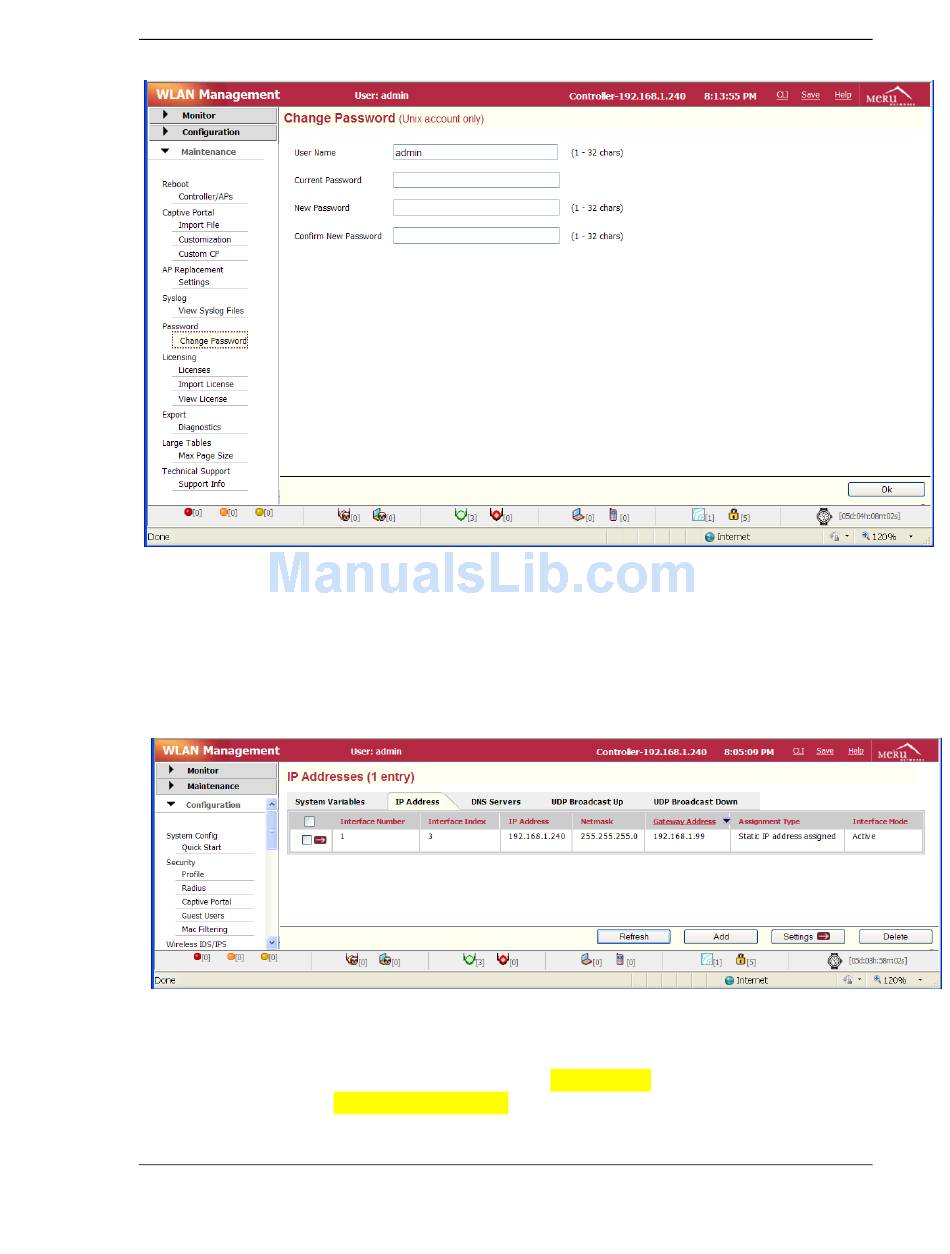

5.3 Changing the Controller IP address
1. In the left menu panel, click Configuration. Under the Devices heading, click System
Settings. Click the IP Address tab to open the IP Address table.
2. Click the arrow button to the right of the checkbox (or click Settings at the bottom of
the window). The IP Addresses - Update window appears.
—
To change the static IP address, type a new address in the IP Address box,
then type a netmask and gateway address to complete the configuration.
3. Click OK.
19
