WAP-VKIT User Manual

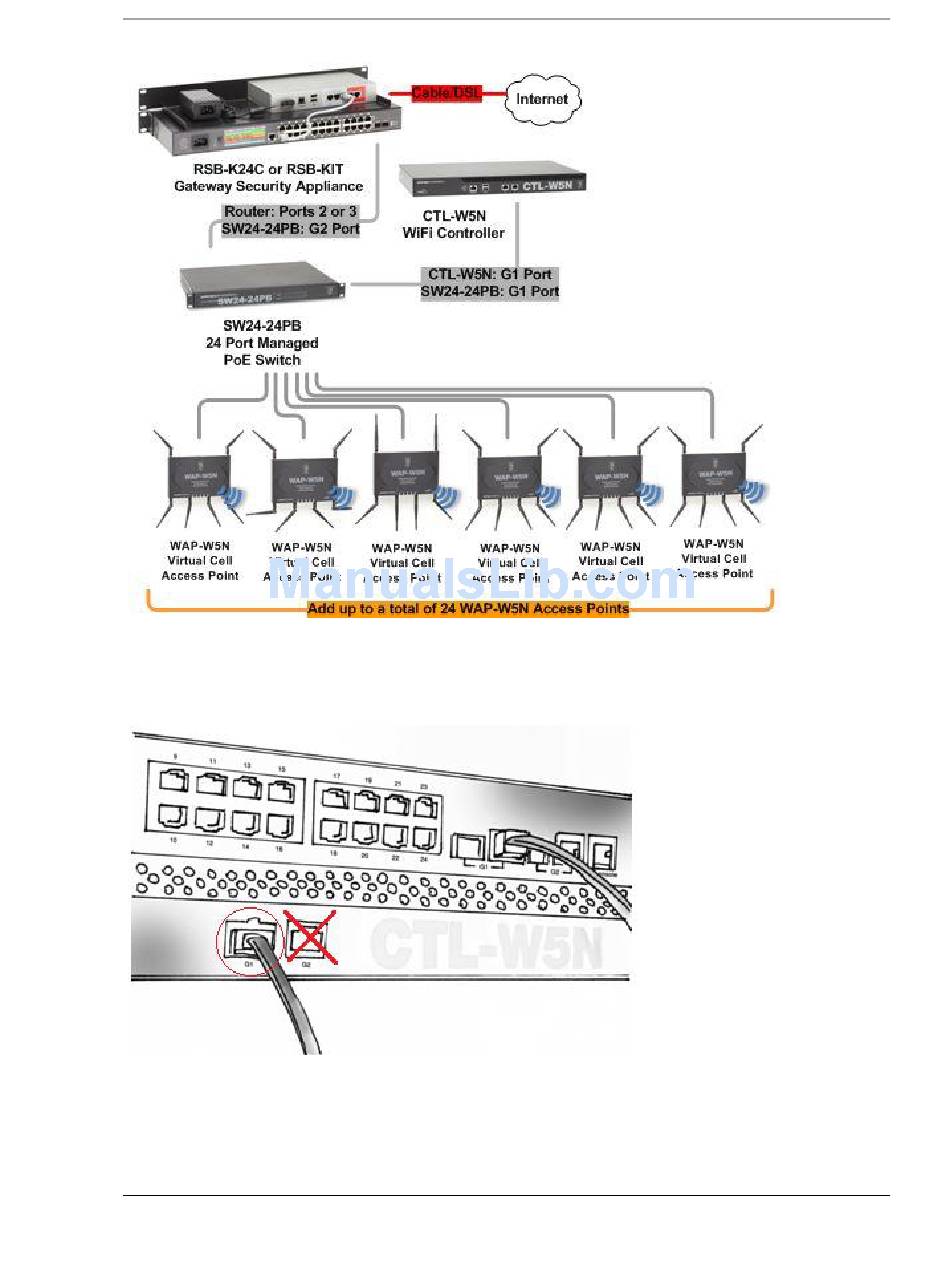

1) Plug one end of the included Ethernet cable into port G1 of the CTL-W5N controller (Do not
use port G2 of the CTL-W5N). Connect the other end of the Ethernet cable to port G1 on
the SWX-XPB PoE Switch. (Note: connect it to G1, Not G2 on the PoE switch.)
2) Using another Ethernet cable (not included), connect one end of the cable to G2 on the
SWX-XPB PoE Switch, and the other end to switch port 2 on the RT-50V (the router in the
RSB-KXX Preconfigured VLAN Kit).
13
