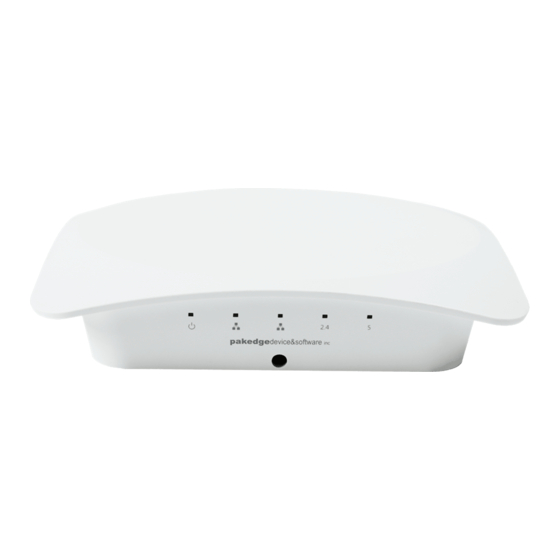

- Page 1 WK-2x WK-2, WK-2-B, WK-2-C 802.11ac Dual Band Access Point User Guide Version v1.2...
-
Page 2: Table Of Contents
WK-2/WK-2-B Mounting Options ............................. 6 Using Provided Wall Mount ..............................6 Using Provided T-bar ................................11 WK-2-C Mounting ..................................12 WK-2-C Pre-construction Bracket Installation ........................16 Power Method for the WK-2x ..............................17 WK-2x Start Up ....................................20 Menu Options ....................................212 Status ........................................ - Page 3 WK-2x User Guide Version v1.2 Maintenance ......................................39 Username/Password ..................................40 Time Zone ......................................41 Firmware ......................................42 Configuration ....................................43 Reboot ....................................... 44 Appendix A – Specs ..................................45 HARDWARE SPECIFICATIONS ..............................45 RF INFORMATION ..................................45 OPERATIONS ....................................46 MANAGEMENT AND SECURITY ..............................
-
Page 4: Introduction
WK-2x User Guide Version v1.2 Introduction Thank you for purchasing the Pakedge WK-2x 802.11ac Dual Band Access Point. As the central component of your wireless network, the WK-2x provides you with high-speed, high-range wireless AC networking. The WK-2x broadcasts on both the 2.4 GHz and 5 GHz band so that select devices can choose their preferred source of wireless internet, improving the overall stability, reliability and performance of the wireless network. - Page 5 WK-2x User Guide Version v1.2 WDS Repeater – The repeater also receives wireless signal from another access point. However, unlike a brige access point, a repeater access point sends out Wi-Fi so that client devices can connect to it wirelessly. The functionality of the WK-2x changes depending on its operating mode.
-
Page 6: System Requirements
Hardware Installation Note: the product is designed for specific application and must be professionally installed by a qualified personal who has RF and related knowledge. WK-2/WK-2-B Mounting Options Using the Provided Wall Mount If planning on mounting the WK-2x A: DOUBLE-GANG ELECTRICAL BOX, WALL B: WALL, SINGLE-GANG ELECTRICAL BOX, EUROPEAN OUTLET BOX US 4”... - Page 7 WK-2x User Guide Version v1.2 Vertical mount: Secure the wall bracket to the wall anchors using the included hardware. Horizontal mount: Line up the slots and secure the wall bracket to the wall anchors using the included hardware. Line the two tabs on the top of the Wall Bracket with the two pockets on the back of the access point.
- Page 8 WK-2x User Guide Version v1.2 Attach the recommended plastic cable clip. Route cables along the channel on the back of the WAP and secure them to the plastic clip by pressing the cable to the clip.
- Page 9 WK-2x User Guide Version v1.2 Place the access point firmly against the wall bracket, ensuring the cables are tucked in the channel on the back of the access point and/or behind the wall bracket.
- Page 10 WK-2x User Guide Version v1.2 Slide the WAP downward until the top two tabs on the wall bracket lock into place. Secure the WAP to the bottom tab of the wall bracket with the included security screw.
-
Page 11: Using Provided T-Bar
WK-2x User Guide Version v1.2 Using Provided T-bar Bracket Place the T-bar bracket into the slots on the back of the WAP and line up the two holes on bracket with the two mounting points on the back of the WAP. Using the supplied hardware, mount the T-bar bracket to the WAP. -
Page 12: Wk-2-C Mounting
WK-2x User Guide Version v1.2 Rotate the WAP counter-clockwise until the T-bar bracket is secured to the T-bar. WK-2-C Mounting 1. Open release latch, push on back of WK-2-C to swing WAP down from ceiling/wall bracket. 2. Swing WAP down... - Page 13 WK-2x User Guide Version v1.2 3. Using supplied template, cut a 9.125” inch diameter circle at desired mounting location of WK-2-C. Route in-wall Ethernet cable through the opening on the back of WK-2-C housing. Insert WK-2-C into ceiling/wall.
- Page 14 WK-2x User Guide Version v1.2 4. Use a Phillips screwdriver to engage the mounting-ears as shown in a clockwise rotation until the screws are difficult to rotate.
- Page 15 Do not over-tighten the mounting-ears as excessive torque will strip the mounting-ears and render them non-functional. 5. Plug Ethernet cable into WK-2-C. Route Ethernet cable as shown, use optional cable clip if necessary. 5. Swing WAP back into WK-2-C housing.
- Page 16 WK-2x User Guide Version v1.2 WK-2-C installation with optional pre-construction bracket The pre-construction bracket is sold separately. 1. Place the pre-construction bracket against the bottom of the ceiling studs at the desired mounting location. 2. Mark locations for mounting screws. Drill 1/16” pilot holes at marked locations. Secure pre-construction bracket to ceiling studs using the provided hardware.
-
Page 17: Power Method For The Wk-2X
WK-2x User Guide Version v1.2 Power Method for the WK-2x The diagrams below show using a PoE+ injector or a PoE+ switch to power the WK-2x. Note: the product must be powered by 802.3at - compliant Power over Ethernet (PoE+) injector or switch Power via PoE+ Injector... - Page 18 WK-2x User Guide Version v1.2 Power via PoE+ Switch Power using the included power adapter...
- Page 19 WK-2x User Guide Version v1.2 The WK-2x can be configured in several modes: Access Point, WDS Root Access Point, WDS Repeater or WDS Bridge. When shipped from the factory, the WK-2x is set to Access Point mode. The default IP address of the WK-2x is 192.168.1.250 and username/password of pakedge/pakedgea.
-
Page 20: Wk-2X Start Up
WK-2x User Guide Version v1.2 3. Select Use the following IP Address and type the IP address and subnet mask, as in the example below. (Be sure the IP address and subnet mask are on the same subnet as the WK-2x.) WK-2x IP address: 192.168.1.250 PC IP address:... - Page 21 WK-2x User Guide Version v1.2 The WK-2x login dialog appears. In the username box, type pakedge. In the password box, type pakedgea and click Login. The WK-2x main menu appears (see figure below). The main menu displays the current status of WK-2x and general information such as the IP address, subnet mask, and MAC addresses.
-
Page 22: Menu Options
WK-2x User Guide Version v1.2 Menu Options The navigation bar on the top of the window comes with 4 options: Status: Shows the dashboard and logs of the WK-2x access point. The dashboard is the default page that comes up when you log in to the WK-2x GUI. Network: User can make changes to the network settings, such as the LAN, wireless settings, and ... -
Page 23: Dashboard
WK-2x User Guide Version v1.2 Dashboard The Dashboard is the default landing page of the access point. You can also access this page by hovering over the Status icon and clicking Dashboard. This page displays the MAC and IP addresses, operation mode, WLAN information, SSIDs and connected clients. -
Page 24: System Log
WK-2x User Guide Version v1.2 System Log The System Log page has an activity log that can be used by Pakedge Technical Support for troubleshooting purposes. System log buffer size: Maximum value of the buffer is 10240 KB (10MB), which is also the ... -
Page 25: Network
WK-2x User Guide Version v1.2 Network Hover over the Network icon and click LAN. This page displays the LAN settings for the WK-2x. To configure the IP address of your WK-2x, you can configure the WK-2x with a static IP address or obtain an IP address automatically by using a DHCP client. - Page 26 WK-2x User Guide Version v1.2 IP Network Setting: The default IP setting is DHCP. If this option is selected, the WK-2x will automatically be assigned an IP address. Please make sure there is a DHCP server in your network if you would like to use this option.
-
Page 27: Wireless
WK-2x User Guide Version v1.2 Wireless Radio Hover over Network and click on Wireless. You will be directed to the Radio configuration page under the Radio tab. Country Code: Selecting your country is required for proper functionality of this device and may be ... - Page 28 WK-2x User Guide Version v1.2 Band Steering: Band steering steers 5 GHz capable clients to that frequency. By enabling this function, the 2.4 GHz SSID and settings will be copied to the 5 GHz band. Operation Mode: Both the 2.4 and the 5 GHz band have the following operating modes: Access ...
-
Page 29: Security Profiles
WK-2x User Guide Version v1.2 AP Detection – Click Scan to perform an automatic site survey. A new window will open and display the site survey utility. The WK-2x will scan the frequency for devices currently broadcasting their SSID and then will display them in the table. -
Page 30: Configuration
WK-2x User Guide Version v1.2 Profile Name: Create a name for the security profile. Encryption: Select an encryption type for your security profile. The four available options are, No Encryption, WPA PSK, WPA2 PSK, and WPA/WPA2 PSK. No Encryption: This will leave your profile without security (not recommended). WPA PSK: Password must be at least 8 characters long. - Page 31 WK-2x User Guide Version v1.2 On Off: The SSID may be turned on or turned off using this checkbox. Wireless Name (SSID): The SSID is the name associated with the Wi-Fi network. An SSID cannot exceed 32 characters. Security Profile: The profiles created under the Security Profiles tab may be applied to the SSID ...
-
Page 32: Guest Network Settings
WK-2x User Guide Version v1.2 Guest Network Settings The Guest Network feature is designed for networks that do not have a guest VLAN. The Guest Network acts as its own network and only has access to the internet. Each access point’s guest network is independent from the guest networks of other access points. - Page 33 WK-2x User Guide Version v1.2 Security Profile: Select a security profile that has already been defined under the Security Profiles tab. Manual IP Settings IP Address: Enter in the IP address the access point will be used on. Subnet Mask: Select the class of the guest network.
-
Page 34: Advanced
WK-2x User Guide Version v1.2 Advanced On the Advanced page, you can configure: Transmit Power: The power depends on the distance of the devices in your wireless network. From the drop-down list, select the desired power. You can use this feature to limit the coverage area of the wireless network. - Page 35 WK-2x User Guide Version v1.2 Fast Secure Roaming: IEEE 802.11r standard for fast roaming, reduces the authentication time when clients roam from one AP to the other. This feature is beneficial for video streaming and voice application. Note: The roaming behavior depends on clients. To obtain full benefit from fast roaming, wireless clients need to support 802.11r fast roaming standard.
-
Page 36: Management
WK-2x User Guide Version v1.2 Management Diagnostics Ping Hover over Management and click on Diagnostics. You will be directed to the ping test under the Ping tab:... -
Page 37: Traceroute
WK-2x User Guide Version v1.2 Ping – Target IP / Domain Name: Enter the IP address of a location to ping. 8.8.8.8 is a Google DNS server. Click Start to start the test. Traceroute Click on the Traceroute tab. -
Page 38: Snmp
WK-2x User Guide Version v1.2 A Traceroute test can help you identify obstacles you may have in the network. The Traceroute text maps the path for packets moving between the WK-2x and the target location. To run a Traceroute test, enter an IP Address or Domain Name into the Target IP / Domain Name textbox and click Start to begin the test. -
Page 39: Leds
Contact: Enter the contact information of the installer or network administrator for the SNMP manager. Description: Enter in a description of the device. The default description is Pakedge WK-2 WAP. LEDs Hover over Management and click on LEDs. -
Page 40: Maintenance
WK-2x User Guide Version v1.2 Maintenance Username/Password Hover over Maintenance and click on Username/Password. You can change the username and password for the device here. -
Page 41: Time Zone
WK-2x User Guide Version v1.2 Time Zone Hover over Maintenance and click on Time Zone. This page allows you to set up the timezone. -
Page 42: Firmware
WK-2x User Guide Version v1.2 Firmware Allows you to update the firmware for the unit. Keep Settings: Selecting this will preserve your current configurations after the firmware update. Local Image: Click Choose File to select the firmware file. Local Update: Updates the firmware with the file you selected. -
Page 43: Configuration
WK-2x User Guide Version v1.2 Configuration Hover over Maintenance and click on Configuration: Download backup: Click Download Configuration to save and export the current settings of the WK-2x. Reset to defaults: Click Factory Default to reset the the WK-2x back to its factory default settings. ... -
Page 44: Reboot
WK-2x User Guide Version v1.2 Reboot Hover over Maintenance and click on Reboot. Clicking the Reboot Button allows you to reboot the device. -
Page 45: Appendix A - Specs
WK-2x User Guide Version v1.2 Appendix A – Specs HARDWARE SPECIFICATIONS 1 x 10/100/1000 Gigabit Ethernet RJ-45 port with IEEE 802.3at Power over Ethernet (PoE+) support 1 x 10/100/1000 Gigabit Ethernet RJ-45 port Configurable LED Indicators for Power, Ethernet, 2.4GHz Wireless and 5GHz Wireless ... -
Page 46: Operations
WK-2x User Guide Version v1.2 Receiver Sensitivity (Typical) OPERATIONS Operation Modes: ... -
Page 47: Management And Security
WK-2x User Guide Version v1.2 2.4/5 GHz have independent operation modes Access Point/ WDS Bridge/WDS AP/Repeater Up to 18 SSIDs Supports 802.1q VLANs Spanning Tree Supports 802.1d Spanning Tree Protocol IP Auto-configuration – DHCP client Transmission rate options: ... -
Page 48: Mechanical
Storage: 90% of less MECHANICAL Enclosure: 8.02 inches X 7.47 inches Depth: 1.63 inches Base 6.38 inches X 6.23 inches Appendix B – Accessory List WK-2, WK-2-B Quick Start Guide AC100-240V, 50-60Hz DC12V 2A power adapter CAT5e cable ... -
Page 49: Appendix D - Limited Warranty
WK-2x User Guide Version v1.2 3847 Breakwater Avenue Hayward, CA 94545-3606 Southern California Office: Pakedge Device & Software 17011 Beach Blvd. Suite 600 Huntington Beach, CA 92647-5946 Appendix D – Limited Warranty Model WK-2x Congratulations on your purchase of a Pakedge Device & Software wireless product! Pakedge designs and manufactures the finest home networking products. - Page 50 WK-2x User Guide Version v1.2 warranties, whether expressed, implied or statutory, including but not limited to, any implied warranty of merchantability, fitness for a particular purpose or non-infringement, and b) any and all obligations and liabilities of Pakedge for damages including but not limited to incidental, consequential or special damages, or any financial loss, lost profits or expense, or loss of network connection arising out of or in connection with the purchase, use or performance of the Product, even if Pakedge has been advised of the possibility of such damages.
-
Page 51: Fcc Declaration Of Conformity
WK-2x User Guide Version v1.2 FCC Declaration of Conformity Pakedge Device & Software, 3847 Breakwater Avenue, Hayward, CA 94545, declares under sole responsibility that the WK-2x complies with 47 CFR Parts 2 and 15 of the FCC Rules as a Class B digital device. -
Page 52: Industry Canada Statement
WK-2x User Guide Version v1.2 Using wireless equipment in any environment where the risk of interference to other devices or services is perceived or identified as harmful. The availability of some specific channels and / or operational frequency bands are country ... - Page 53 WK-2x User Guide Version v1.2 produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution : (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;...
-
Page 54: Europe - Eu Declaration Of Conformity
WK-2x User Guide Version v1.2 Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 30cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. - Page 55 WK-2x User Guide Version v1.2 In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
-
Page 56: Safety Precautions
WK-2x User Guide Version v1.2 Lietuvių Šiuo Pakedge Device & Software Inc. deklaruoja, kad šis WK-2x atitinka esminius [Lithuanian reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Hierbij verklaart Pakedge Device & Software Inc. dat het toestel WK-2x in Nederlands overeenstemming is met de essentiële eisen en de andere relevante bepalingen van [Dutch] richtlijn 1999/5/EG. - Page 57 WK-2x User Guide Version v1.2 The equipment is to be connected only to PoE networks without routing to the outside plant.” Or equivalent. When using this device, always follow basic safety precautions, to reduce the risk of fire, electric ...
- Page 58 WK-2x User Guide Version v1.2 pakedgedevice&software 3847 Breakwater Avenue Hayward, CA 94545 17011 Beach Blvd. Suite 600 Huntington Beach, CA 92647 (650) 385-8702 www.pakedge.com sales@pakedge.com...
