WAP-VKIT User Manual
3.1.
Configuration Using SW8-4PB
The SW8-4PB has eight ports, four of them being PoE ports. Therefore only up to four WAP-

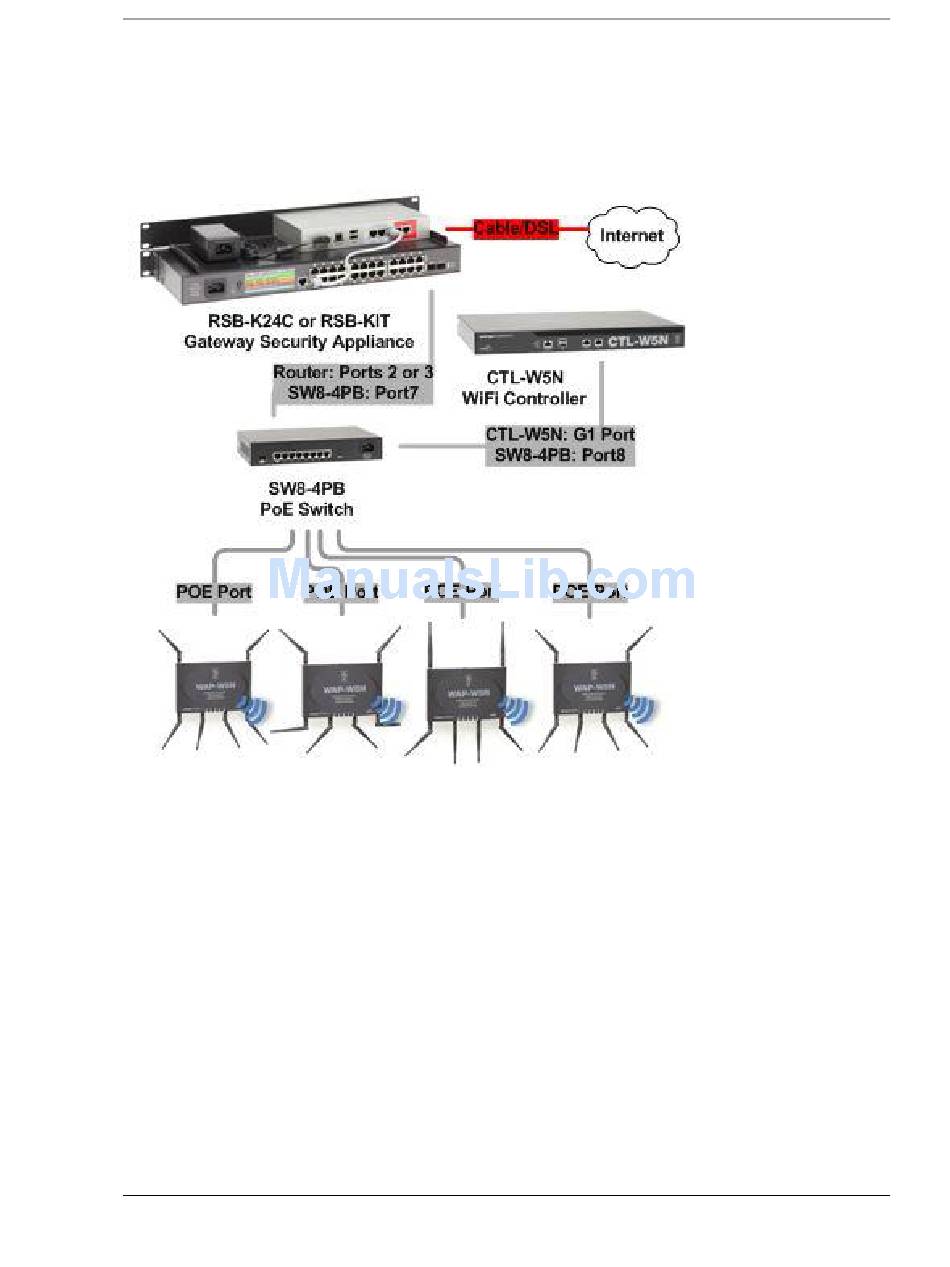

W5Ns can be used with the SW8-4PB. The figure below shows the overall configuration.
1) Plug one end of the enclosed Ethernet cable into port G1 of the CTL-W5N controller. (Do
NOT use G2 on the CTL-W5N.) Then connect the other end of the Ethernet cable to port 8
on the SW8-4PB, as shown on the following page.
10
