Summary of Contents for PR Lighting PR-3400D

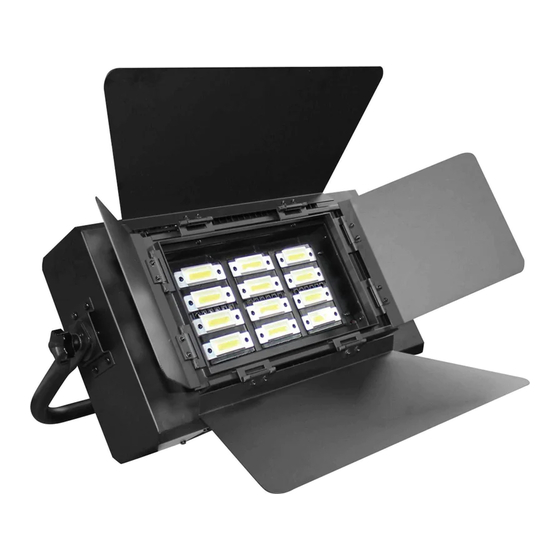

- Page 1 LED Studio (15W X 12) 3400D 3400T This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
INDEX SAFE USAGE OF THE PROJECTOR……………………………………………………………………………… INSTALLING THE PROJECTOR………………………………………………………………………………….. CONTROL CONNECTION………………………………………………………………………………………… DMX TERMINATOR……………………………………………………………………………………………….. SETUP OPTIONS-PROJECTOR CONFIGURATION……………………………………………………………… TO SET THE DMX START ADDRESS…………………………………………………………………………….. OPERATION MENU……………………………………………………………………………………………….. DMX PROTOCOL…………………………………………………………………………………………………. INDICATION OF LED DIGITAL TUBE……………………………………………………………………………. MAINTENANCE…………………………………………………………………………………………………… TROUBLESHOOTING……………………………………………………………………………………………… TECHNICAL DATA………………………………………………………………………………………………… ELECTRICAL DIAGRAM………………………………………………………………………………………….. COMPONENT ORDER CODES…………………………………………………………………………………… Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. -
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector can be used indoors and outdoors, IP20. -
Page 4: Installing The Projector
INSTALL THE PROJECTOR Take 1 clamps and 1 safety cord out from the package and mount 1 clamp on the mounting handle of fixture with 1 retainer. Hang the fixture on the structure and fasten the screws attached to the clamp. Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. -
Page 5: Control Connection
CONTROL CONNECTION Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Please use the projector’s cannon 5- pin signal input and output cables as connection. The 5-pin signal connections are connected as shown in the figure above. -
Page 6: Setup Options-Projector Configuration
SETUP OPTIONS-PROJECTOR CONFIGURATION Projector configuration and Start address can be set conveniently via push-button switch and LED display. Launch the projector and press button FUNC for more than 3 seconds to unlock the panel, the LED will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. -
Page 7: Dmx Protocol
level menu level menu DMX Address （001~512） TEST 000-255 Test Mode LKP saved after LED display locked Information LKP OFF after LED display locked Address displayed after LED display locked Display Black LED display after it locked DMX PROTOCOL CHANNEL FUNCTION DESCRIPTION Dimmer... -
Page 8: Indication Of Led Digital Tube
INDICATION OF LED DIGITAL TUBE DMX Address Address Indication Flash DMX Address changed Brightness Value TEST Indication Flash Brightness changed Setup status DSP Indication Flash Setup changed Setup status LKP Indication Flash Setup changed DMX Signal OK，Receiving function OK DMX Indication DMX Signal BAD，Receiving function BAD Instructions for the function setup of PR-3400 First, DSP: Setup of LED display off 3 minutes after no buttons are pressed... -
Page 9: Maintenance
MAINTENANCE f the projector is idle for a long time, To prolong the life of the projector, it is very important to do the maintenance work. I damp, So it should be cleaned to smoke or particularly dirty surroundings can cause greater accumulation of dirt on its cover and housing. maintain an optimum light output and at the same time to prevent it from being corrupted by acid gas. -
Page 10: Technical Data
TECHNICAL DATA VOLTAGES: 90V-240V AC, 50/60Hz POWER CONSUMPTION: PR-3400D 190W PR-3400T 190W LED: Power consumption 15W （DC 12V） Quantity 12pcs Manufacturers Rated LED Life More than 50000 Hours COLOUR TEMPERATURE: PR-3400D 5600K PR-3400T 3200K DIMMER: 0-100% linearly adjustable BEAM ANGLE: Field angle(one-tenth-peak) θ... - Page 11 SIZES: Light output 11/14...
-
Page 12: Electrical Diagram
ELECTRICAL DIAGRAM 12/14... -
Page 13: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK SIGNAL CABLE 230090003 190010126 90-240V 50/60 Hz POWER SUPPLY 230020477 LED CONTROL BOARD COLOUR TEMPERATURE 15W LED 150020238 5600K COLOUR TEMPERATURE 15W LED 150020248 3200K 13/14... - Page 14 Made in China PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 321030067 Version：20130528 14/14...
