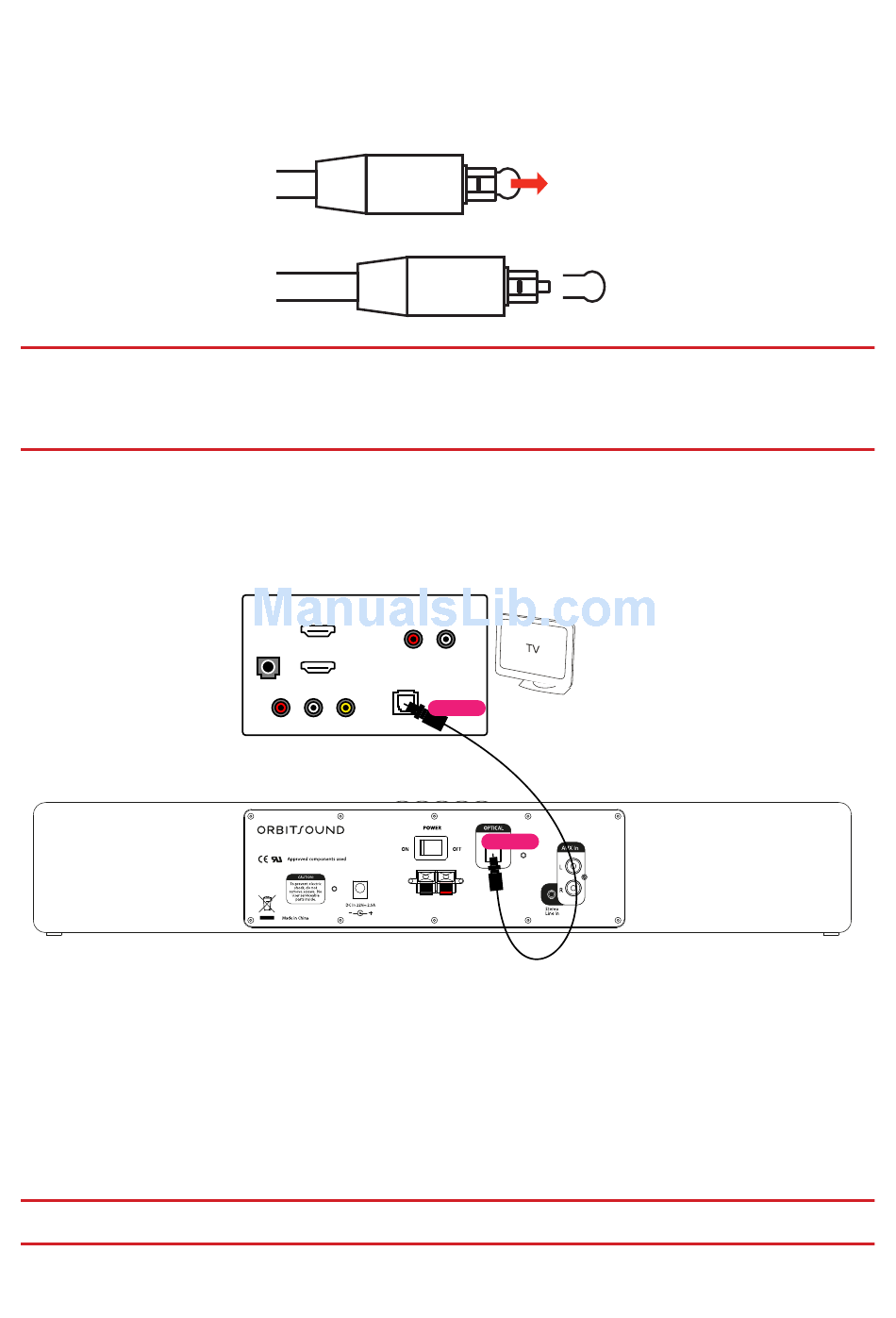

Connect the Soundbar to your TV
1) Remove plastic covers from optical cable:
IMPORTANT: Remove the protective plastic covers from a new TOSLINK
(optical) cable before connecting to the optical sockets. Failure to remove
these covers may result in damage and will interrupt the sound output.
2) Connect to your TV with the optical cable:
HINT: When using the soundbar in this way, it is normal that the speakers on the
TV will need to be turned down or muted to stop sound coming from the TV's
own speakers.
HINT: Make sure that the sound output mode for the optical output on the TV is
set to 'PCM', or 'Normal'. This provides the best overall listening experience.
IMPORTANT: FIRMLY CONNECT THE OPTICAL CABLE UNTIL IT 'CLICKS'
TV CONNECTION PANEL
HDMI
IN 1
AUDIO OUT
DVI
HDMI
AUDIO IN
IN 2
OPTICAL
AUDIO OUT
AUDIO IN VIDEO IN
Spatial soundbar with subwoofer and Bluetooth
©2013 Orbitsound Ltd. Model: M10LX
Subwoofer Output
Only connect supplied subwoofer
<CLICK>
<CLICK>
4 ohm minimum
