Orbitsound T12 Handbook

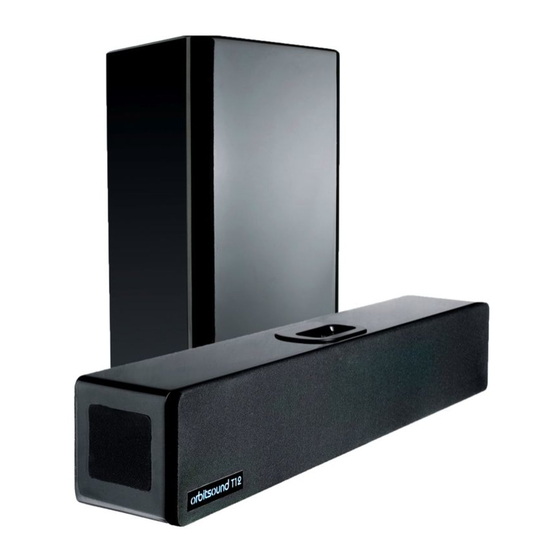

Orbitsound t12 spatial stereo soundbar
Hide thumbs Also See for T12:
Table of Contents

Advertisement

Quick Links

See also: User Manual
v3
Handbook
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbitsound T12

Summary of Contents for Orbitsound T12

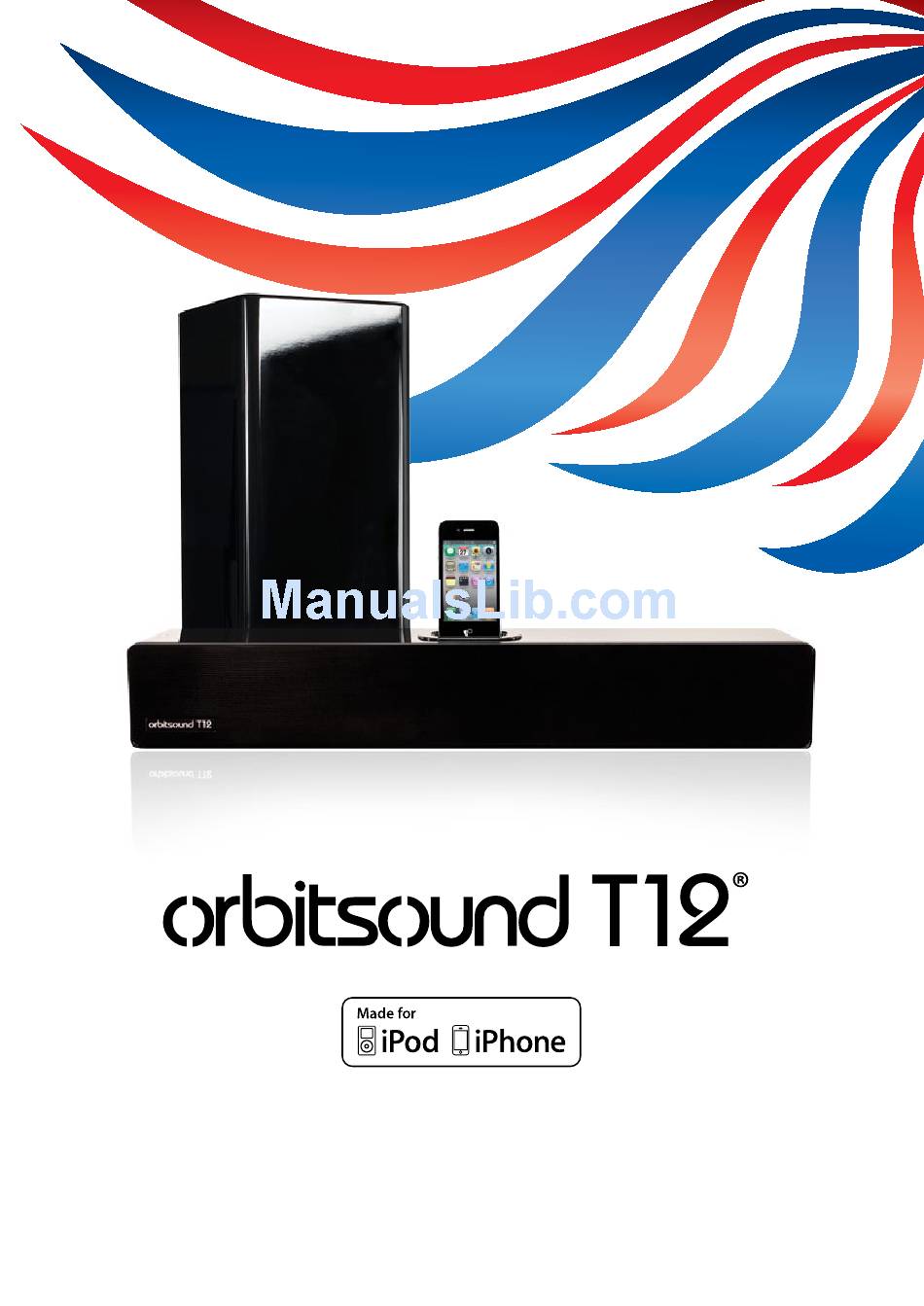

  • Page 1 Handbook...

  • Page 2: Table Of Contents

    Sound is distorted Sound is noisy / ‘hissy’ Sound stops when I plug in my iPod Digital optical issues: ‘Clicking’ or no sound Orbitsound Warranty Warranty Terms Making a Warranty Claim Orbitsound Ltd Warranty Terms and Conditions Contact Information Specifications...

  • Page 3: Welcome

    Welcome Thank you for purchasing the Orbitsound T12 spatial stereo soundbar. With proper use the T12 delivers superb sound fidelity, and will provide you with a fantastic listening experience. This instruction booklet covers important safety and setup information as well as advice on how to get the most out of your T12.

  • Page 4: The Soundbar

    BLUE (FLASHING): Mute OFF: Power off Status LED IR receiver The T12 soundbar produces most of the sound that you hear. It produces the main signal and stereo information. It also houses the amplifiers for itself and the subwoofer. Remote control...

  • Page 5: Setting Up The T12

    Setting up the T12 1. Connect subwoofer Connect the subwoofer to the subwoofer output on the stereo soundbar as shown: CAUTION: POWER DIGITAL In Digital Input To prevent electric ©2011 orbitsound ltd. shock, do not Optical Coaxial remove screws. No...

  • Page 6: Connect Power

    (optional) IMPORTANT: (A) It is advised that the iPod dock is used with the correct adaptor for your iPhone / iPod model. The T12 comes with some adaptors for popular models. More variants are available from Apple inc. NOTE: (B) You can connect your sound source to either the 3.5mm line input OR dual RCA (phono) AUX IN connectors OR optical (TOSLINK) inputs.

  • Page 7: Power On

    Basic operation 1. Power on Press & hold (2 seconds) Power on Standby IMPORTANT: The main power switch must be on for soundbar operation. This is located on the rear of the soundbar unit. Standby / On: The soundbar may be put into ‘standby’ or resumed on by pressing the [power] button on the remote.

  • Page 8: Volume / Mute

    3. Volume / Mute Volume - Volume+ Mute Main Volume adjust Mute: Press the [mute] button on the remote to silence or resume play through the soundbar. NOTE: When the soundbar is on and mute is enabled, you will see a blue flashing light on the front of the soundbar.

  • Page 9: Advanced Setup

    Advanced Setup The T12 is easy to set up and enjoy, but even better sound can be achieved by following these guidelines. 1. Positioning: getting the most from spatial stereo The spatial stereo sound field is produced by the speakers in the sides of the soundbar.

  • Page 10: Connection To Tv

    Connection to TV This configuration can be used for TVs with an optical digital output. The TV sends stereo sound directly to the soundbar. Connecting sound from the TV like this is usually the best sound connection method for many reasons. Connecting the soundbar directly to a set-top box / Blu Ray can introduce A/V sync issues as some TVs will delay the video a little.

  • Page 11: Enhancement To Tv Sound (Replacing Tv Speakers, Analogue)

    There is no on screen menu, the video output is to watch video ouput only (i.e. youTube). iPod control & charge Basic play control is achieved by pressing the following buttons on the T12 remote control unit: Play/Pause...

  • Page 12: Charge / Menu

    Charge / Menu The iPod/iPhone is charged when it needs charge and when connected. Also, the menus may conveniently be navigated from the remote for most iPod models. Pressing the ‘iMenu’ button enters the iPod menu. Use the remote navigation functions to control your iPod.

  • Page 13: Battery Replacement (Remote)

    Battery replacement (remote) Replace remote battery with anode up (+) from back-side. BATTERY: CR 2025 Troubleshooting No sound is heard • Check power connections and that there is a continuous blue light on the front of the unit. • Check that the iPod/TV or other sound source is playing and that it is connected properly to the soundbar.

  • Page 14: Sound Is Distorted

    Check the output format of the optical signal from the playing device. Choose ‘normal’ or ‘PCM’ format. Refer to the TV manufacturer’s handbook for more information. You can also contact Orbitsound for advice, see contact helpline later in this handbook.

  • Page 15: Orbitsound Warranty

    Orbitsound Warranty This Orbitsound product is supplied with a 12 month limited manufacturer’s warranty dated from new purchase date. This warranty covers repairs or replacement that may be required in the event of unit failure during normal use, subject to the terms and conditions stated below and at the Agent’s discression.
  • Page 16 that the equipment has been installed and used in accordance with the supplied handbook instructions. The warranty will not cover repairs or replacements arising from misuse or accidental damage. See Warranties and Liabilities. 3. CHARGES For warranty repairs that are 100% covered by the manufacturer’s warranty, there will be no charge for any repair or replacement or return freight to the purchaser.

  • Page 17: Contact Information

    GENERAL The Agent may assign or subcontract responsibilities and rights under this warranty. In all warranty cases, please refer to the support pages of www.orbitsound.com first. Contact Information ORBITSOUND LTD.

  • Page 18: Specifications

    Tweeter drivers 2 x 1” m/c Midrange drivers 4 x 2.5 “ Spatial drivers 2 x 2” full-range Enclosure type Reflex/orbitsound spatial Sub-Bass driver 1 x 6.5” Sub-Bass Enclosure type Tuned reflex Connection input(s) Stereo Line level -10dBu 3.5mm jack and RCA.
