  • Page 1 A70 AIRSOUND BAR HANDBOOK...

  • Page 2: Package Contents

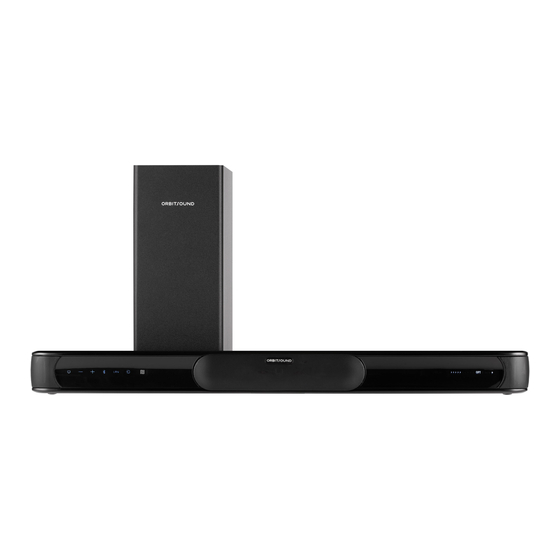

    • Safety and warranty guide ABOUT THE SOUNDBAR The Orbitsound A70 is a high fidelity soundbar featuring airSOUND to deliver a natural listening experience. The soundbar houses 5 speakers in total. On the front there are 2 midrange loudspeakers, and a high frequency tweeter.

  • Page 3: Front Panel Features

    SOUNDBAR OVERVIEW Touch Panel Buttons Remote Learning Input Source Wireless Subwoofer Error/Pairing Remote Control Learning Volume/Bass/Treble Bluetooth (Hold to pair) Optical Source Volume + Bluetooth Source Volume - AUX Source Power / Standby Power/Mute FRONT PANEL FEATURES Side firing airSOUND loudspeakers that deliver the spatial sound experience.

  • Page 4: Pairing Status

    SUBWOOFER OVERVIEW The wireless subwoofer receives low frequency sound from the soundbar via an ultra low latency Bluetooth signal. To operate, the subwoofer must be paired with the soundbar. At the factory, the subwoofer is paired with the soundbar. You can re-pair a subwoofer if needed, see ‘SUBWOOFER PAIRING’...

  • Page 5: Getting Started

    GETTING STARTED CONNECTING CABLES TV OPTICAL AUDIO OUT TV OPTICAL AUDIO OUT ©2014 Orbitsound ltd. ©2014 Orbitsound ltd. Subwoofer Pairing: 1) Long Press subwoofer PAIR; Subw STATUS will flash 1) Lo 2) Long Press subw soundbar Vol+ and Vol- STAT...

  • Page 6: Bluetooth Pairing

    1) Press and hold (3 seconds) the Bluetooth button (1) Fast Flash - Pairing mode 2) The Bluetooth light will fast flash (2) 3) Search for ‘Orbitsound A70’ in your Bluetooth device list Solid On - Connected to NFC (NEAR FIELD COMMUNICATION)

  • Page 7: Operation

    3) When prompted, tap to confirm pairing with the soundbar. Note: The first time you connect with NFC, you may not be connected to the device. This first pairing allows your device to add the soundbar to your device list. After this initial pairing, connecting with NFC is quick and easy, just follow steps 1 &...
  • Page 8 CONTROLS The following chart shows all the controls on the soundbar: Power Switches the soundbar into standby mode or resumes. Volume Press to change the soundbar volume (22 steps) Bluetooth Press to switch to Bluetooth input, and to connect or disconnect from a Bluetooth device.
  • Page 9 AUDIO OUT 3) The soundbar will now search for the subwoofer. When the pairing is ©2014 Orbitsound ltd. successful, the soundbar SUB light will go dark, and the subwoofer will Subwoofer Pairing: 1) Long Press subwoofer PAIR;...

  • Page 10: System Reset

    ‘scan’ a new remote control button, and to use this as a volume control function. This means that when using your A70, you will not need to reach for the Orbitsound remote in order to adjust the soundbar volume.

  • Page 11: Cleaning And Care

    GETTING THE BEST SOUND Orbitsound is all about sound. airSOUND is a system that works to fill your living environment with incredible quality and spatious sound. Whilst the setup of the soundbar is not critical, there are some basic...

  • Page 12: Wall Mounting

    HF: 10KHz +/- 8dB EQ Maximum SPL [dB] 97dBA @ 1m Amp. power 300W total Crossover frequencies [Hz] LF: 220Hz (digital) HF: 4KHz (analogue) Front (main) drivers 2x2” Orbitsound mk3 1” soft dome tweeter Spatial drivers 2x45mm neodymium drvers Sub-Bass driver 1 x 6.25”...
  • Page 13 Enclosure types Front – sealed sound treated Sides – sealed chambers Subwoofer - Tuned Reflex Input(s) AUX -10dBu 3.5mm jack. TOSLINK optical (Stereo). Bluetooth aptX Recommended placement Table or Wall Mounted Dimensions (H x W x D) [cm] Soundbar: 75 x 6.5 x 6.5 Subwoofer: 34 x 34 x 14cm Cabinet finish Soundbar:...

  • Page 14: Troubleshooting

    TROUBLESHOOTING There is no sound froom the subwoofer Please ensure the battery protection film has been removed. Pull the tab and remove. Check that power to subwoofer is ON. Restart soundbar. If the wireless subwoofer If the remote has had a lot of use, replace error light on the sound bar is solid red, the battery.
  • Page 15 Orbitsound Ltd. 33 Greycot St, London, SW1P 2QF tel: +44 (0)8456 521 219 www.orbitsound.com/support support@orbitsound.com Orbitsound Ltd is regstered in the UK, company number 09339931. E&oe - exceptions and omissions excluded...
