- Page 1 High Performance Spatial Soundbar with Subwoofer and Bluetooth ® Handbook v1...
-
Page 3: Table Of Contents
Remote does not work Sound is distorted Sound is noisy / ‘hissy’ Digital optical issues: ‘Clicking’ or no sound No sound from subwoofer (soundbar working) Battery replacement (remote) Orbitsound Warranty Warranty Terms Making a Warranty Claim Orbitsound Ltd Warranty Terms and Conditions Specifications... -
Page 4: Welcome
This instruction booklet covers important safety and setup information as well as advice on how to get the most out of your orbitsound M10LX. Orbitsound contact information ORBITSOUND LTD. -
Page 5: The Soundbar

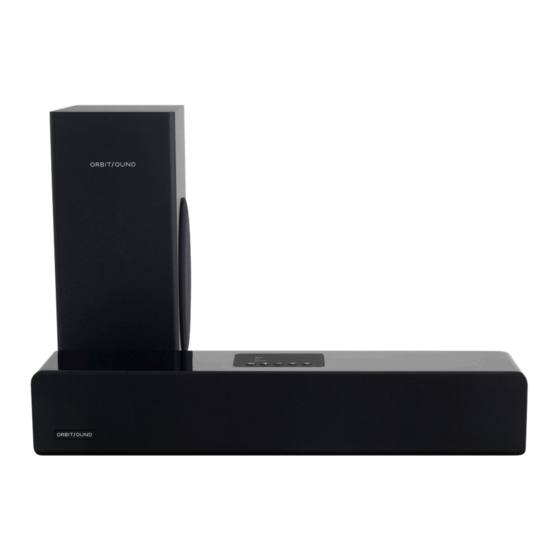

BLUE: On OFF: Power off IR receiver The orbitsound M10LX soundbar produces most of the sound that you hear. It produces the main signal and spatial information. Remote control The remote control provides volume control, tone control and sound source selection, and additionally playback controls when using a connected Bluetooth device. -
Page 6: Control Panel Overview
Control panel overview The soundbar can be controlled from the control panel: Optical Bluetooth 1. Source: Press to cycle through the inputs. This controls what device is playing through the soundbar. 2. Bluetooth: Short press to renew a Bluetooth connection / start playback. Long press (Press and hold) to enter pairing mode. -
Page 7: Getting Started
Getting Started Connect, power on Spatial soundbar with subwoofer and Bluetooth ©2013 Orbitsound Ltd. Model: M10LX Subwoofer Output 4 ohm minimum Only connect supplied subwoofer Connect Subwoofer Connect power Connect Power Switch on 1. Connect the subwoofer as shown (see below picture) 2. - Page 8 VIDEO IN <CLICK> <CLICK> Spatial soundbar with subwoofer and Bluetooth ©2013 Orbitsound Ltd. Model: M10LX Subwoofer Output 4 ohm minimum Only connect supplied subwoofer HINT: When using the soundbar in this way, it is normal that the speakers on the TV will need to be turned down or muted to stop sound coming from the TV’s...
- Page 9 AUDIO IN IN 2 AUDIO IN VIDEO IN Spatial soundbar with subwoofer and Bluetooth ©2013 Orbitsound Ltd. Model: M10LX Subwoofer Output 4 ohm minimum Only connect supplied subwoofer Use the included analogue RCA/Jack cable to connect the audio output from your TV to the soundbar.
-
Page 10: Bluetooth
The Bluetooth source light will flash quickly to show that pairing mode has started. Look on your device for ‘Orbitsound’ in the Bluetooth device list, and pair with it. When a device is paired, the soundbar Bluetooth source light will change to solid blue. -
Page 11: Remote Control
Remote control The control panel functions can also be done from the remote control: Source Changes the input source Volume + / - Controls volume Power Enter standby / resume Bass and treble controls the sound: Treble- Treble+ Bass- Bass+ Treble adjust Bass adjust Note: Treble changes the sound of the soundbar + / - 5 steps. -
Page 12: Advanced Setup & Use
Advanced Setup & Use The orbitsound M10LX is easy to set up and enjoy, but even better sound may be achieved by following these guidelines. Positioning - getting the most from spatial sound The spatial sound field is produced by the speakers in the sides of the soundbar. -
Page 13: Other Features
Other features Power saving The M10LX features a low power state. When the soundbar enters standby mode, the power consumption is reduced. It is recommended that Users routinely use standby mode to save energy. Setting memory When in standby mode, or if disconnected from the mains completely, the soundbar will remember settings for pairing, bass, treble, volume and source selection. -
Page 14: Auto-Mute
Auto-mute If there is no signal, or extremely low input signal, the soundbar will enter auto- mute mode. This reduces power consumption, and also completely silences the soundbar and subwoofer. Bluetooth resume / grab If you have previously paired your phone/tablet, there is no need to re-pair the device. -
Page 15: Maintenance
Maintenance Cleaning and care Use a soft, clean cloth moistened with plain, luke-warm water to clean the exterior of the unit. Glass cleaner is a good way to remove finger marks, but please use it sparingly, and avoid contact with the actual loudspeaker driver units. -
Page 16: Troubleshooting
Adjust the volume of the soundbar until sound is heard. • Increase the volume of the playback device. The M10LX features an energy saving mode that cuts the power to the amplifiers when there is no signal for a long time. -
Page 17: Digital Optical Issues: 'Clicking' Or No Sound
Replace remote battery with anode up (+) from back-side. BATTERY: CR 2025 Hint: The Orbitsound remote can be used with a CR2025 or a larger CR2032 battery. The larger battery (CR2032) will give greater life capacity. Contact Orbitsound support for help with these batteries. -
Page 18: Orbitsound Warranty
Orbitsound Warranty This Orbitsound product is supplied with a 12 month limited manufacturer’s warranty dated from new purchase date. This warranty covers repairs or replacement that may be required in the event of unit failure during normal use, subject to the terms and conditions stated below and at the Agent’s discretion. -
Page 19: Orbitsound Ltd Warranty Terms And Conditions
In all warranty cases, accidental damage. See Warranties and Liabilities. please refer to the support pages of www.orbitsound. com first. 3. CHARGES Correct Disposal of this product. -
Page 20: Specifications
Tweeter drivers 1 x 1” m/c Front main drivers 4 x 2 “ Spatial drivers 2 x 2” full-range Enclosure type Sealed/orbitsound spatial Sub-Bass driver 1 x 6.5” Sub-Bass Enclosure type Tuned reflex Connection input(s) Stereo Line level -10dBu 3.5mm jack and RCA.
